Biostar TForce 6100 754
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 219mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-10-30T20:08:56Z
Board info score is 8.7/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/11/2006-C51MCP51-6A61HB09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/30/2006-C51MCP51-6A61HB09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/14/2006-C51MCP51-6A61HB09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/06/200?-C51MCP51-6A61HB09C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename

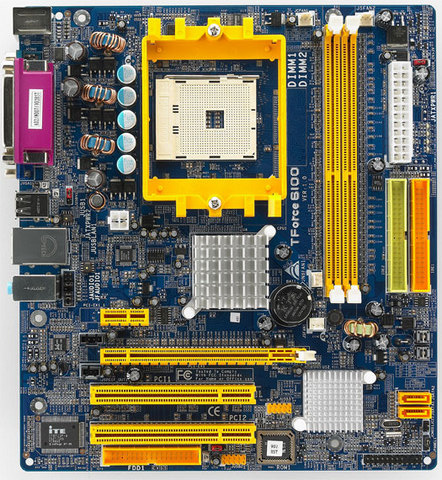

image1 Image 1 of 2 (Biostar)

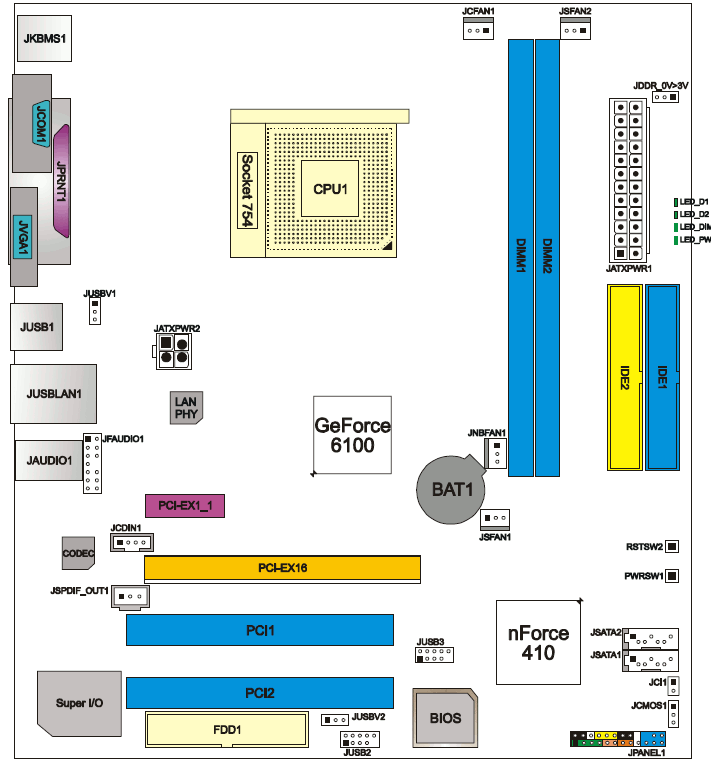

image2 Image 2 of 2 (Biostar)
