ASUS M2N-MX SE Plus
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
245mm x 194mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS V-M2NC61P/DP_MB
  • ASUS V-M2NC61P System Board
connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-06-03T19:06:41Z
Board info score is 9.2/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0602-000001-00101111-102908-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
POST string
64-0503-000001-00101111-032608-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
POST string
64-0406-000001-00101111-012608-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
POST string
64-0302-000001-00101111-120407-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
POST string
64-0209-000001-00101111-101907-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
POST string
64-0108-000001-00101111-090607-MCP61-A0865000
Note
Core version
080012
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

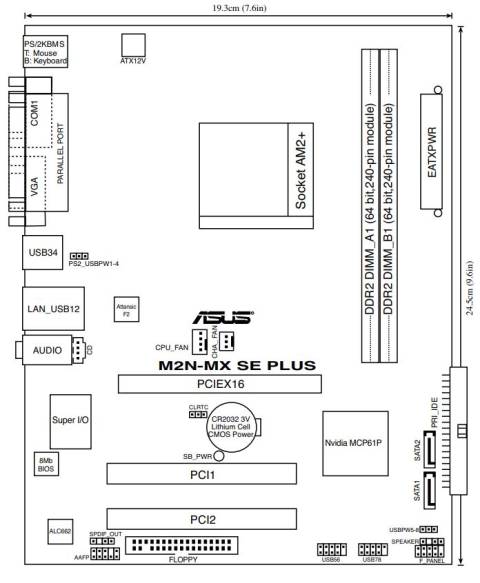

image1 Image 1 of 4 (ASUS)
image2 Image 2 of 4 (ASUS)

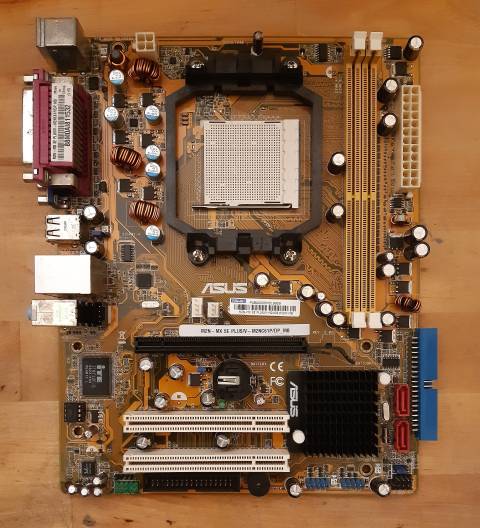

image3 Image 3 of 4 (Carlos S. M.)

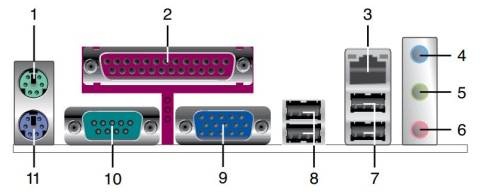

image4 Image 4 of 4 (ASUS)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
