Nvidia MCP61
Logs
dateType
Chipset part
486Family
threadsMemory ctrl.
GDDR3DDRDDR2DDR3
datePCI Vendor ID
10DE 12D2
datePCI Device ID
03E0 03E1 03E2 03E3 03E4 03E5 03E6 03E7 03E8 03E9 03EA 03EB 03EC 03ED 03EE 03EF 03F0 03F1 03F2 03F3 03F4 03F5 03F6 03F7
dimensionProcess node
90nm
actActions
See all boards with this chip
tag Also known as
doc No chip documents available
notes Notes
  • MCP61D: disabled GPU + nForce 430 single chip
  • MCP61G: GeForce 6150SE + nForce 430 single chip
  • MCP61S: GeForce6100 + nForce405 single chip
  • MCP61V: GeForce6100 + nForce 400 single chip
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
wrench Known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-06-10T09:56:18Z

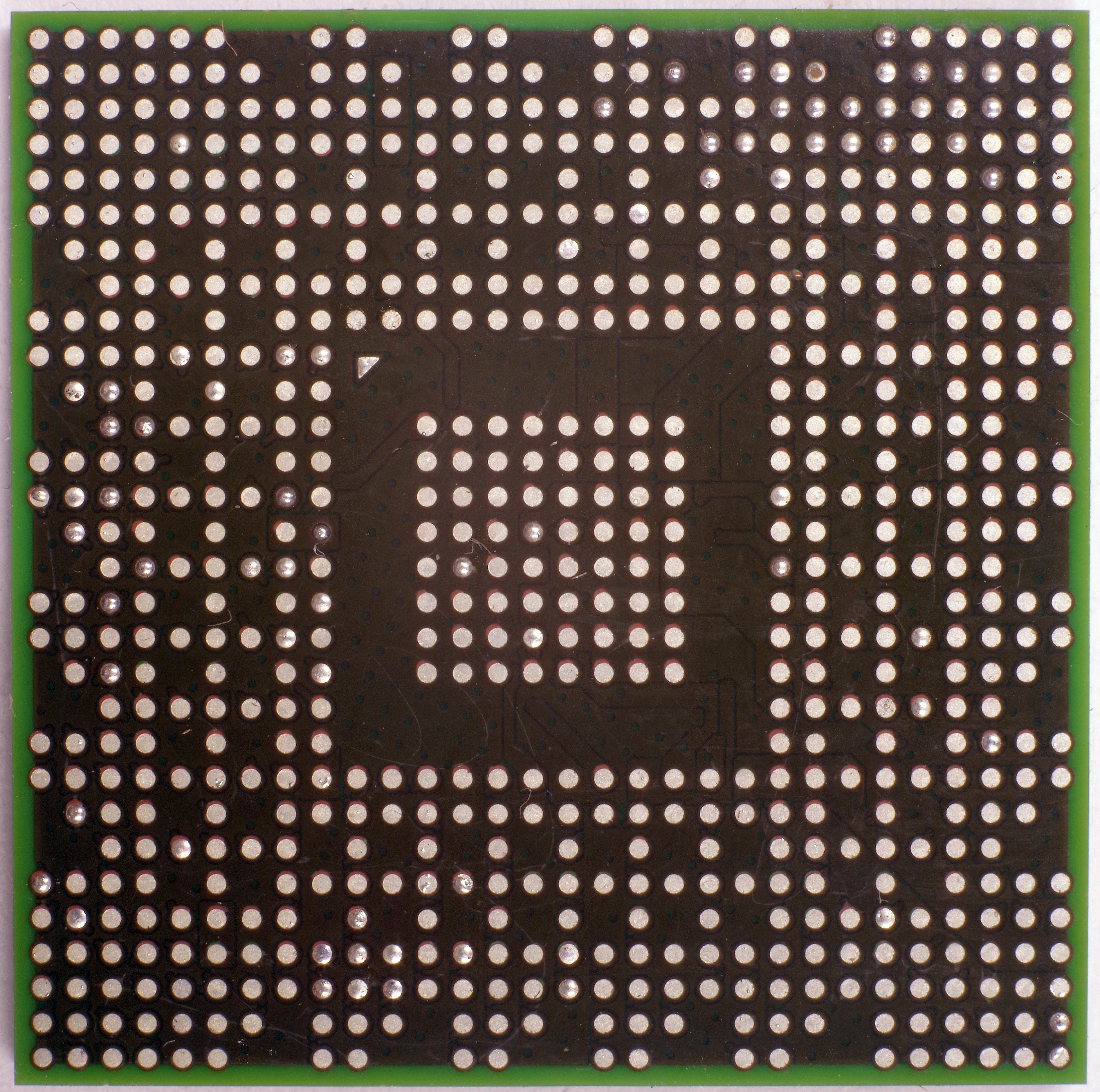

image1 Image 1 of 3 (computerguy096)

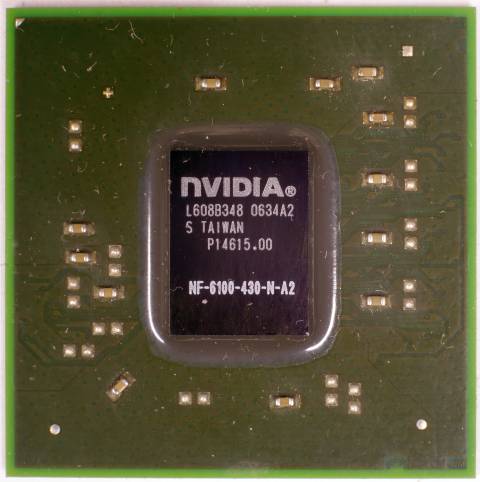

image2 Image 2 of 3 (maciej9783)

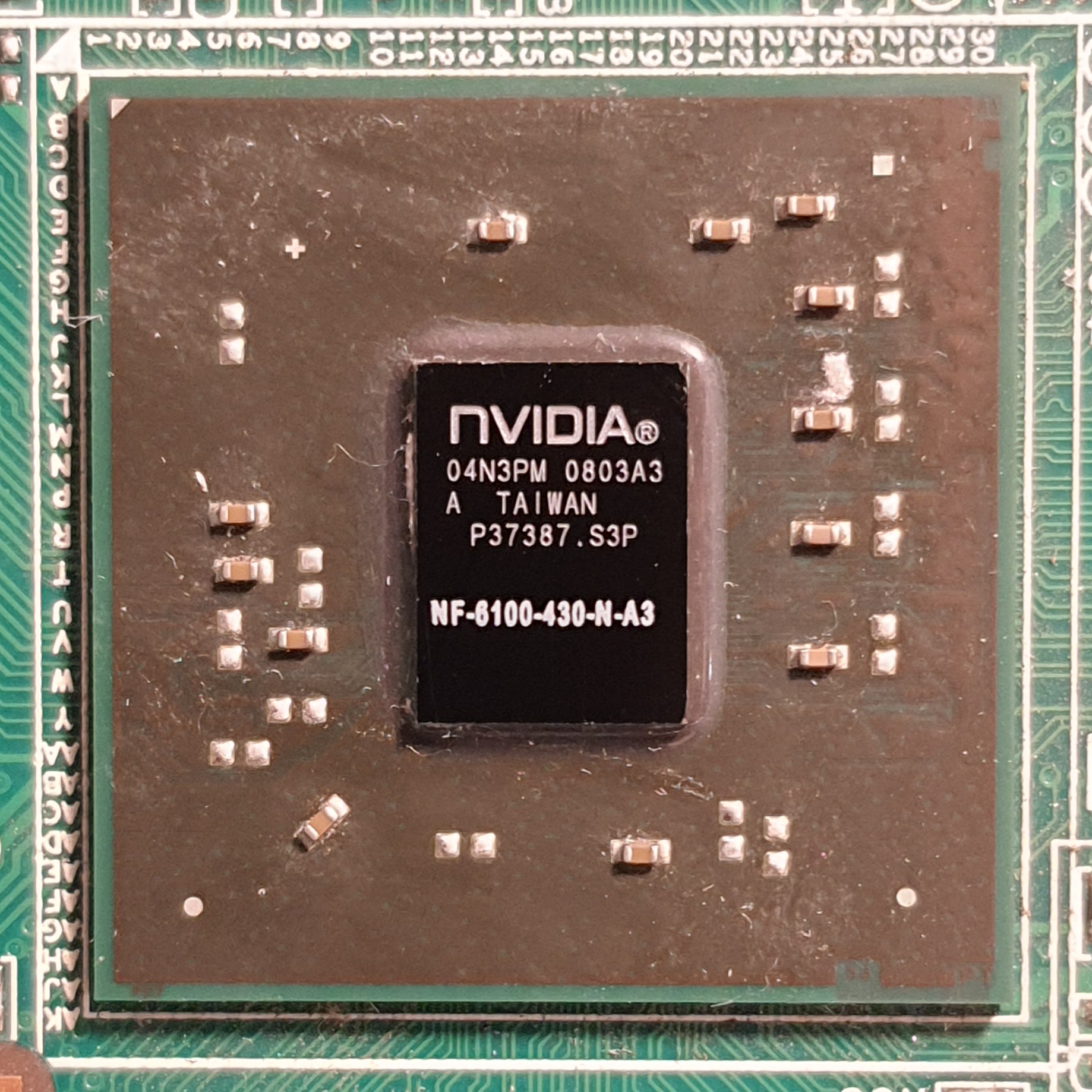

image3 Image 3 of 3 (maciej9783)
