Taiwan Commate / Commell LV-682
Chipset
Socket
FSB speed 800 MHz
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Max VRAM size256 MB
Cache
None/Integrated in the CPU
Max RAM size
4 GB
RAM type 200-pin DDR2 SO-DIMM
PSU connector

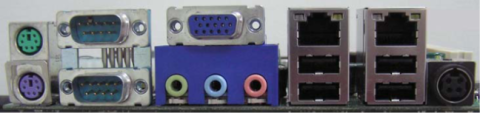

I/O ports1x
3.5mm Audio Combo
1x
CF Card Slot
1x
DVI
1x
GPIO
1x
IDE interface
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
SATA II
4x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
32-bit mini-PCI
Notes
supports AMD Mobile Turion 64x2 638-pin processors
Last updated 2025-05-29T19:56:24Z
Board info score is 7.6/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
Empty
No BIOS files available
4 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
OS support
Size
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs

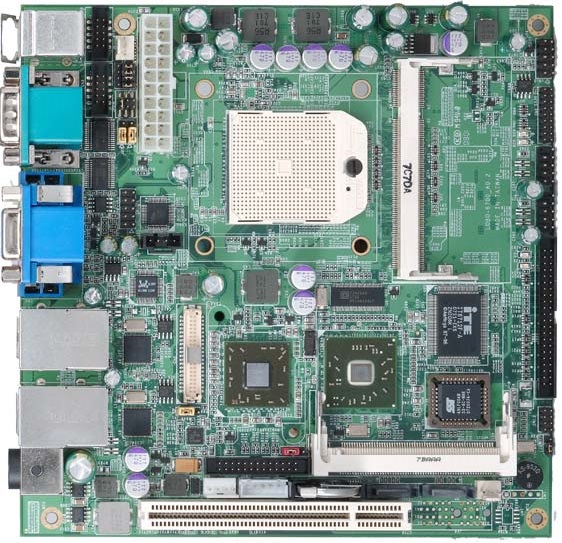

Image 1 of 3 (Taiwan Commate / Commell)
Image 2 of 3 (Taiwan Commate / Commell)
Image 3 of 3 (Taiwan Commate / Commell)
