Gigabyte GA-C7V7-RH
Logs
chipChipset
cpuSocket
NanoBGA (BGA400)
speedFSB speeds
100MHz133MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB(DDR2-533)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S-Video
1x
S/PDIF
2x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
notes Notes
  • Is reported to be not flashable with AWDFLASH. Suggested use GBFlash in Windows.
Last updated 2024-01-06T16:42:34Z
Board info score is 10/10
chip Chips
-> Chipset part
VIA VT3344 (CN700) VIA VT8237R Plus
-> Audio
Realtek ALC653 (AC97)
-> Clock Synth / PLL
Realtek RTM866-522
-> Network
Realtek RTL8100C (PCI Fast Ethernet)
-> Super I/O
ITE IT8712F
cpufam CPU family support
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/31/2006-CN700-8237-6A7L6G09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/11/2009-CN700-8237-6A7L6G09C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 2000 Windows 9x Windows Vista Windows XP/2k3
Arch
Size
2.3MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
4.49V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.4MB
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
16.01.23.24
OS support
Windows 9x
Arch
Size
7.7MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
6.14.10.0380
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs

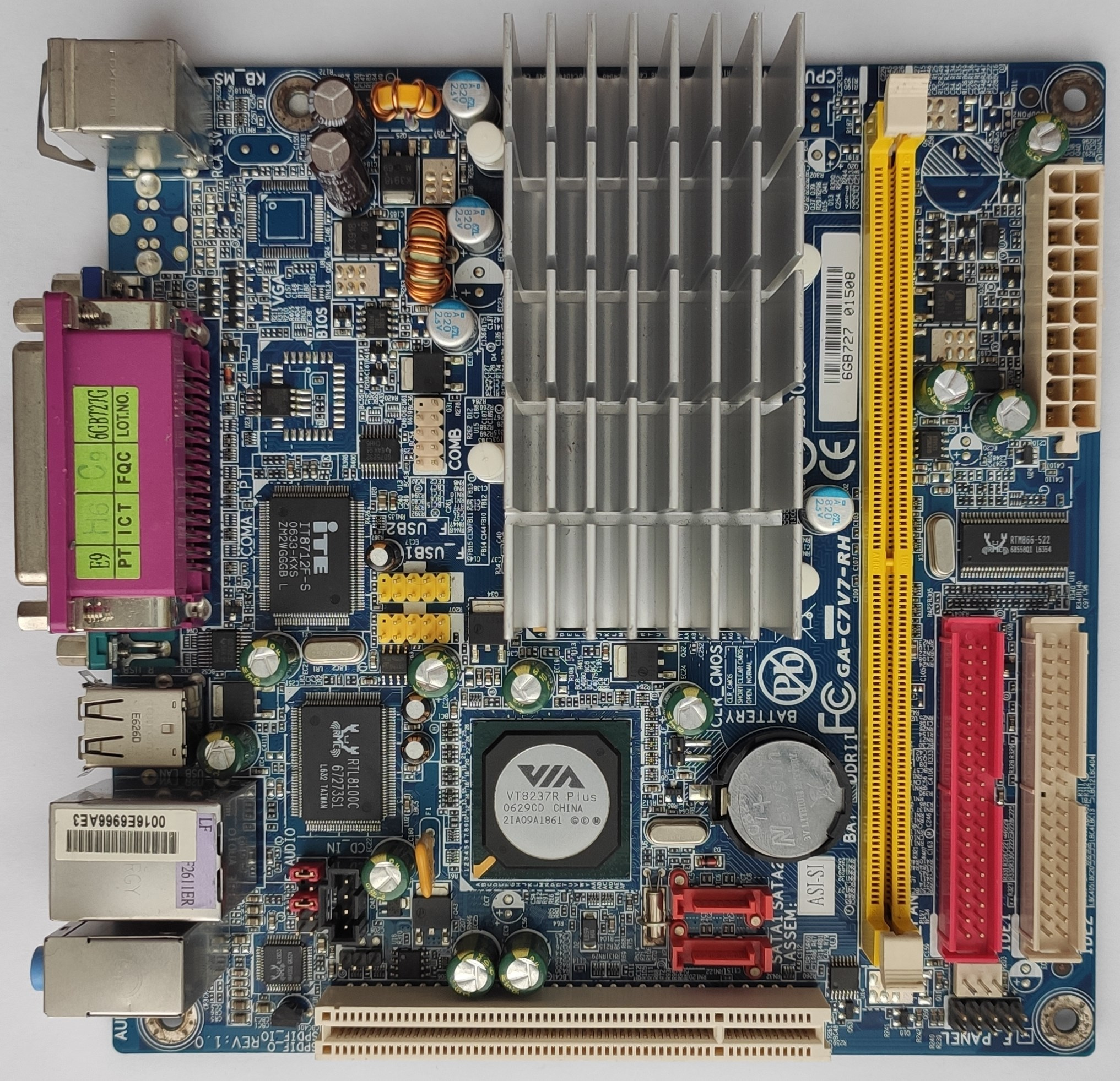

image1 Image 1 of 6 (Gigabyte)

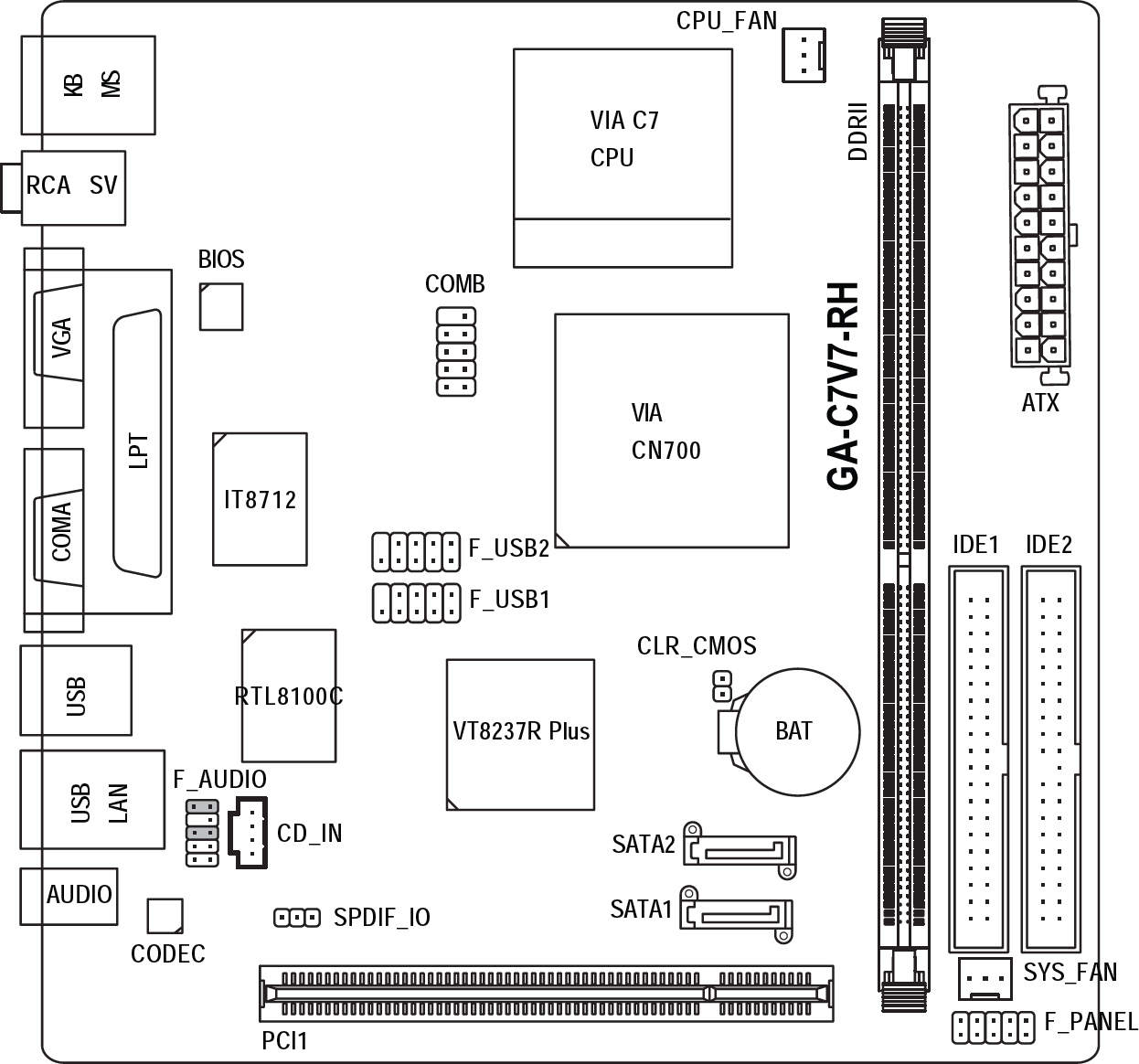

image2 Image 2 of 6 (VanoRu)

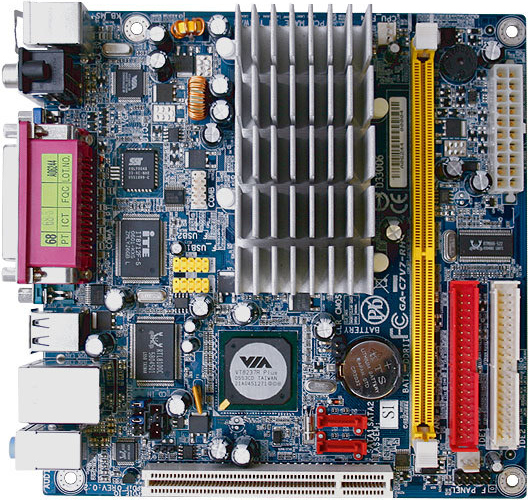

image3 Image 3 of 6 (Gigabyte)

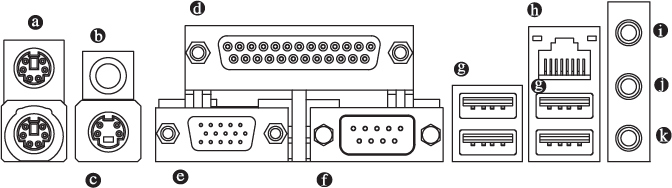

image4 Image 4 of 6 (VanoRu)

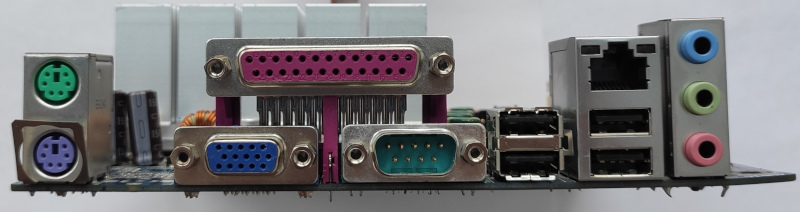

image5 Image 5 of 6 (VanoRu)

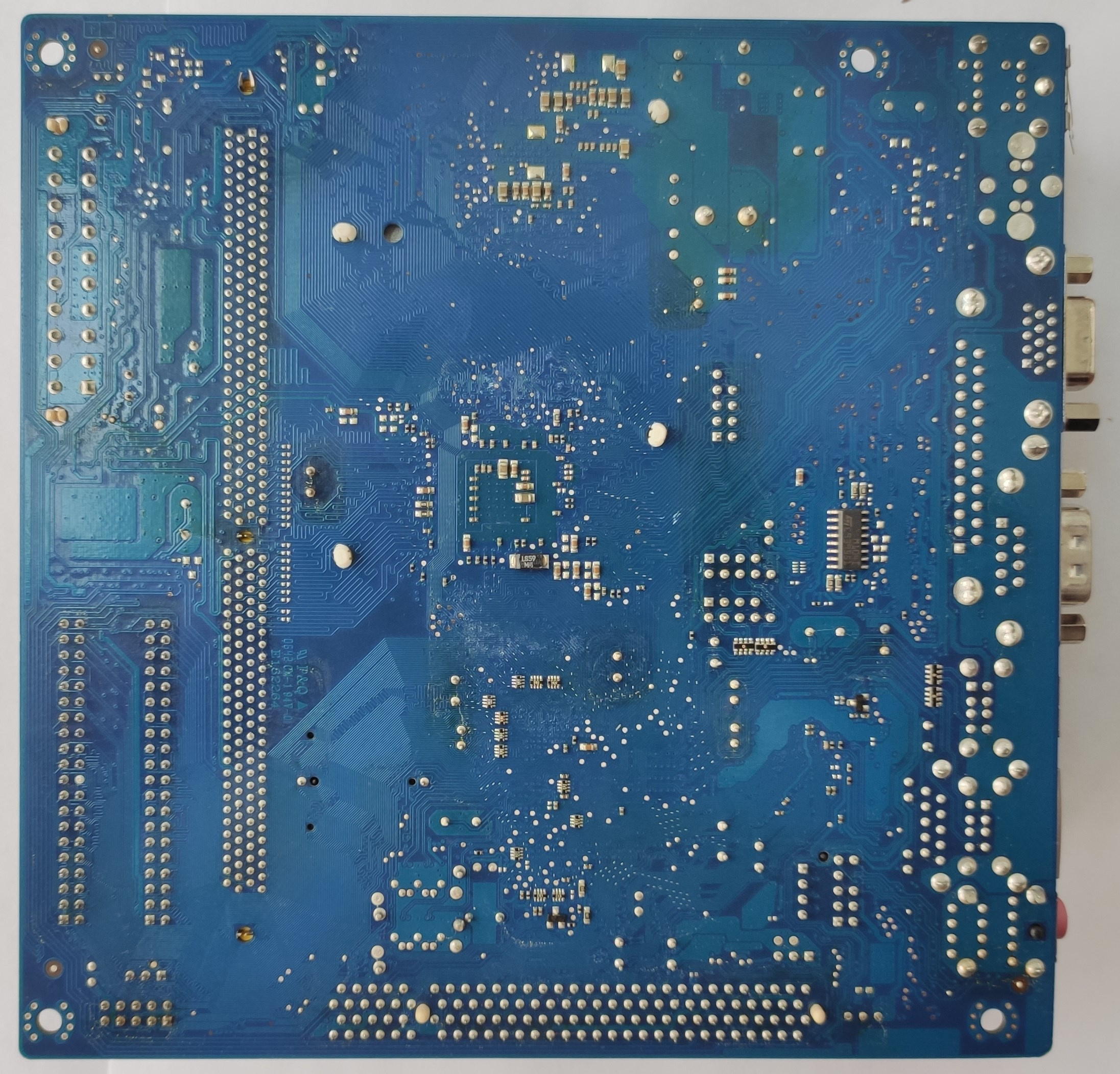

image6 Image 6 of 6 (Gigabyte)
