Gigabyte GA-2CEWH
Chipset
Socket
FSB speeds 800MHz1000MHz
Form factorExtended ATX/EATX (max 305 × 330 mm)
Dimensions305 mm x 330 mm
Cache
None/Integrated in the CPU
Max RAM size
16GB(Dual CPU)8GB(Single CPU)
RAM type DDR RDIMM ECC
PSU connector
Multi CPU support2 CPUs
Also known as
- Gigabyte GA-2CEWH-RH
- Gigabyte GA-2CEWH-FS
- Fujitsu-Siemens S26361-D1818-B20
- Fujitsu-Siemens Celsius V830
I/O ports2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA I
2x
Serial
8x
USB 2.0
Expansion slots1x
32-bit PCI
2x
64-bit PCI-X
1x
PCIe x1
2x
PCIe x16
Last updated 2025-12-22T09:02:39Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
CPU family support
3 BIOS files available
Phoenix - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Fix some CPU Power Now function
Core version
Phoenix 4.0 Release 6.0
BIOS version
Logs
POST string
Note
Support Opteron 200 DP boot
Core version
Phoenix 4.0 Release 6.0
BIOS version
Logs
POST string
Note
Fix Serr/PERR function side effect.
Core version
Phoenix 4.0 Release 6.0
BIOS version
Logs
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0
OS support
Windows 2000
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
1.0
OS support
Windows 2000
Windows NT 4.0
Arch
x86-64
Size
819.6KB
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
2003-02
File
Logs

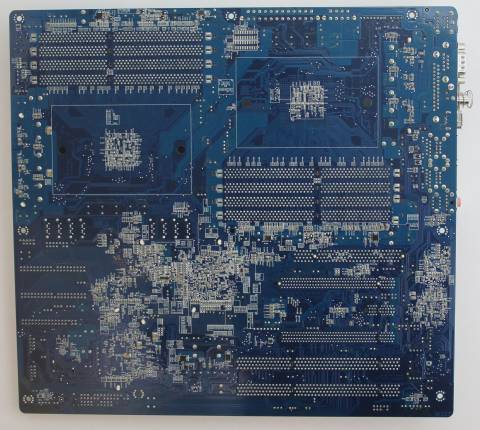

Image 1 of 3 (freekymachine)

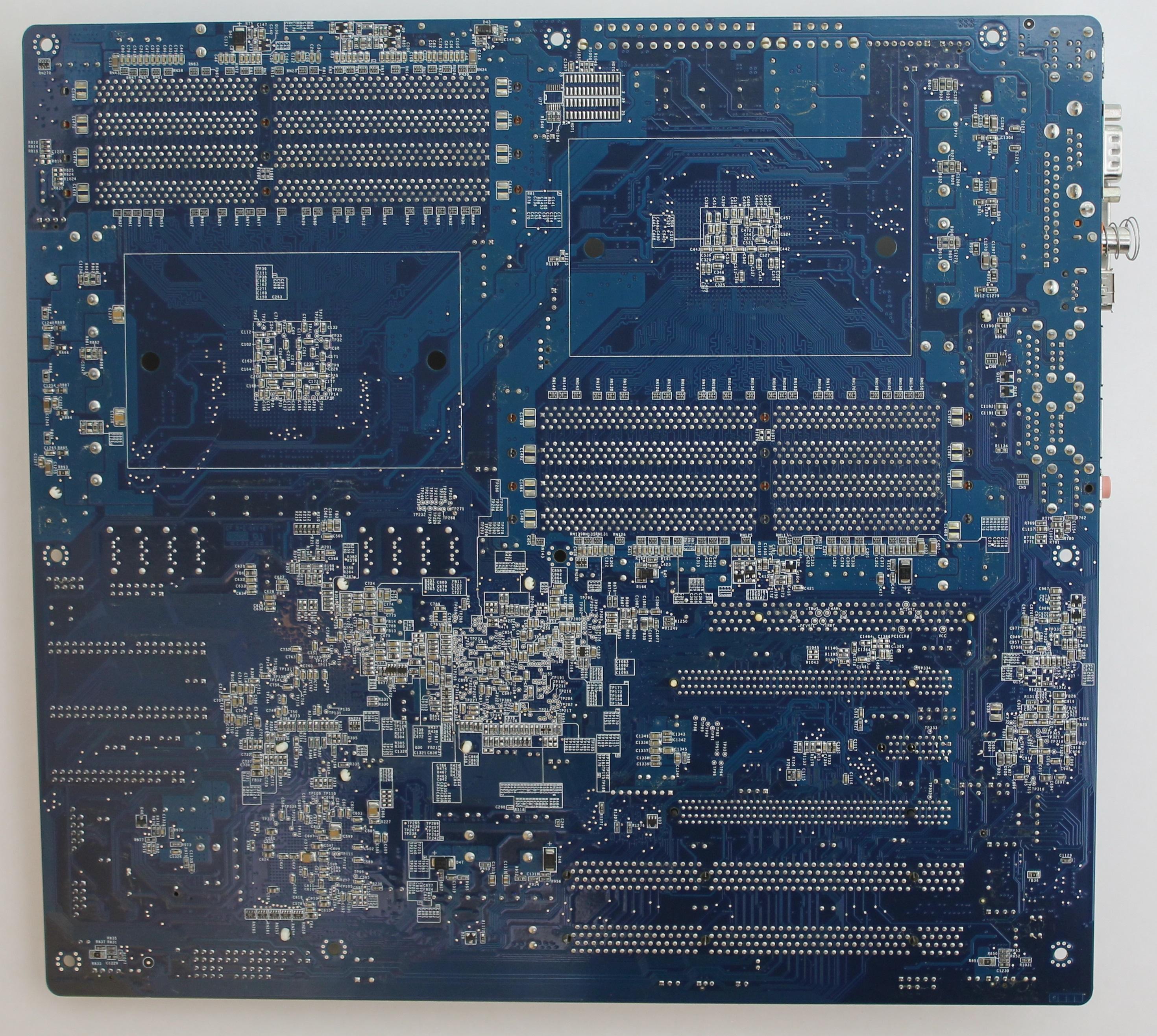

Image 2 of 3 (freekymachine)

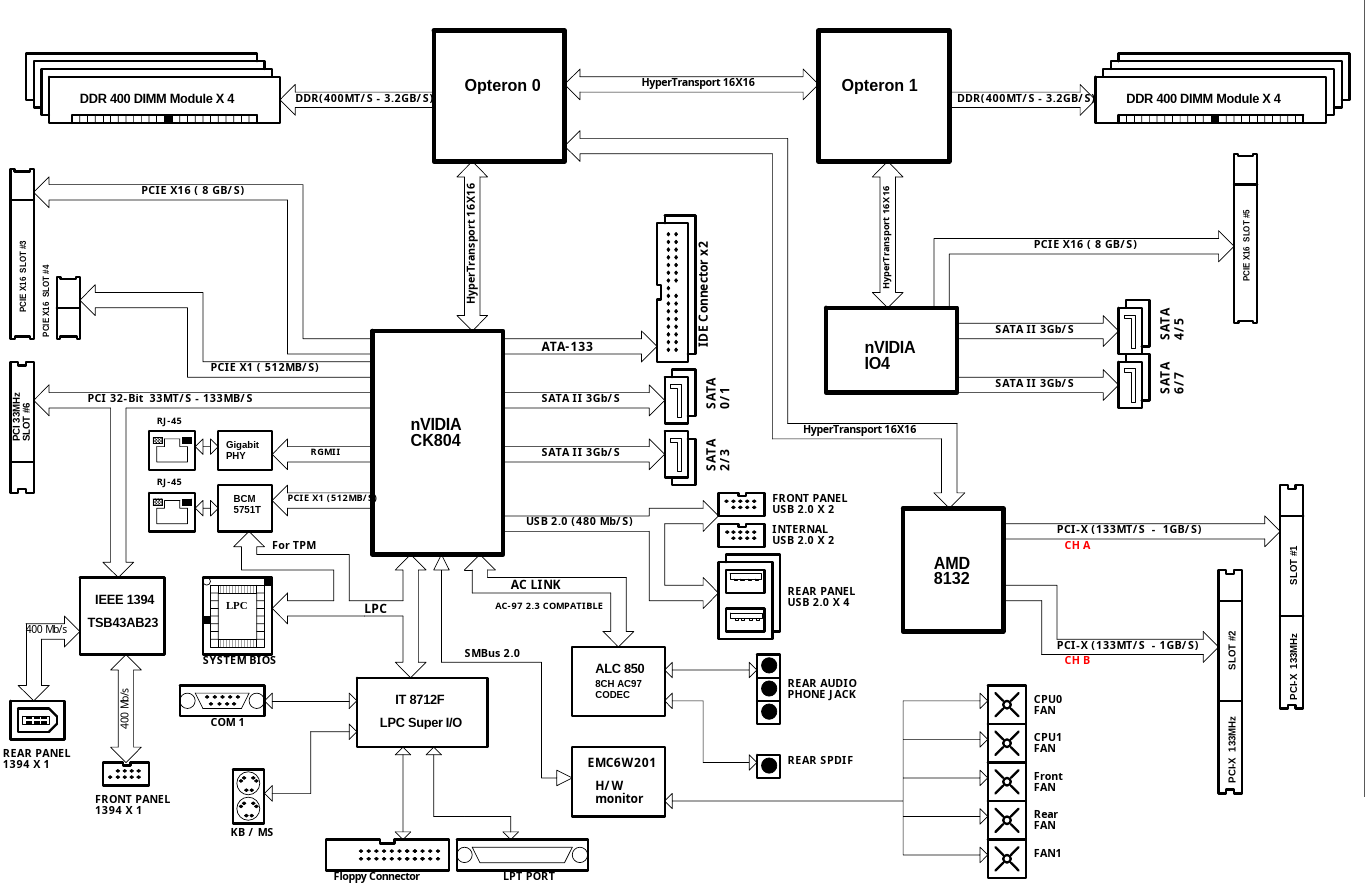

Image 3 of 3 (Gigabyte)
