ECS RD480-A939 (V1.0)
Chipset
Socket
FSB speeds 400MHz800MHz1200MHz1600MHz2000MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 204mm
Cache
None/Integrated in the CPU
Max RAM size
4GB(400/333)
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
1x
Serial
6x
USB 2.0
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16 @ x8
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Notes
- Cut down version of the KA1 MVP Extreme
Last updated 2025-08-13T07:55:44Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
2007-01-09
File
Logs
Chip
Release date
2004-06-04
File
Logs

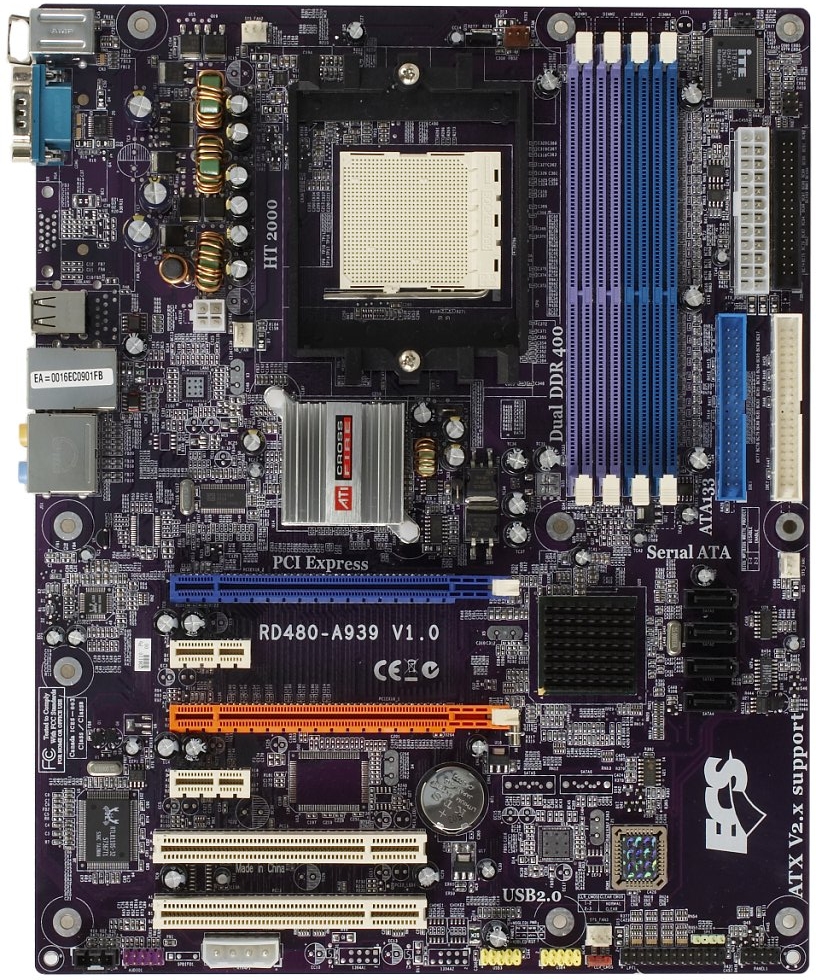

Image 1 of 7 (iXBT)

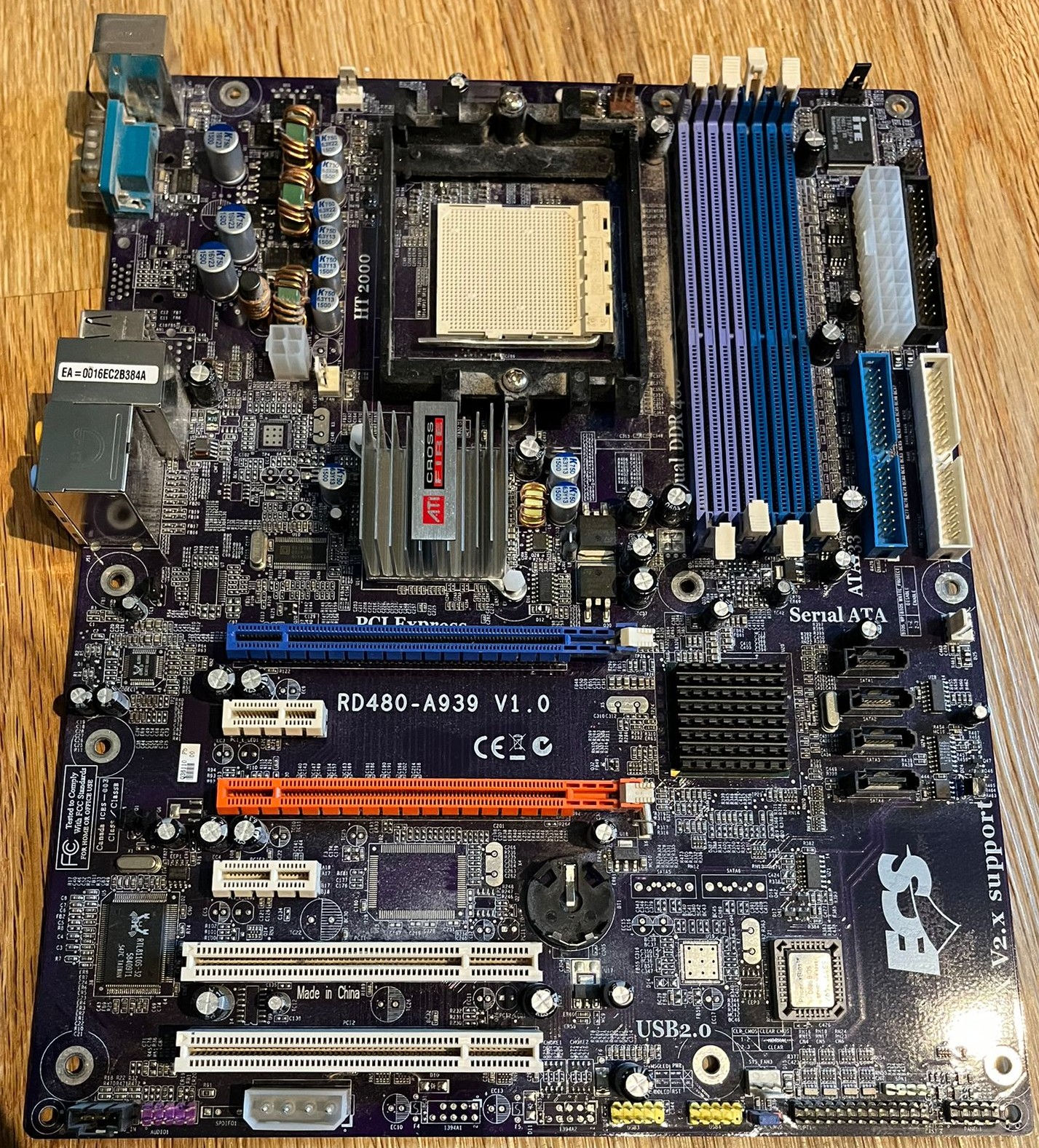

Image 2 of 7 (ElektroGott)

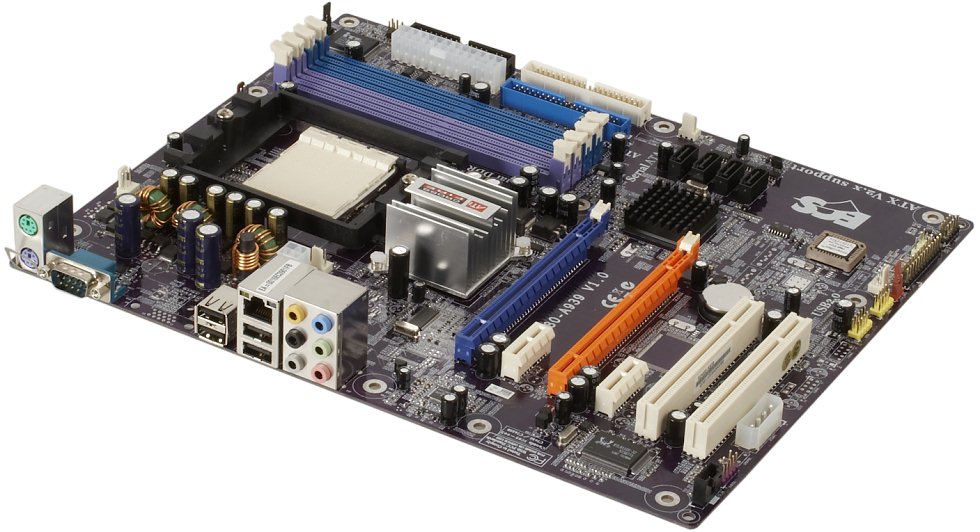

Image 3 of 7 (ElektroGott)

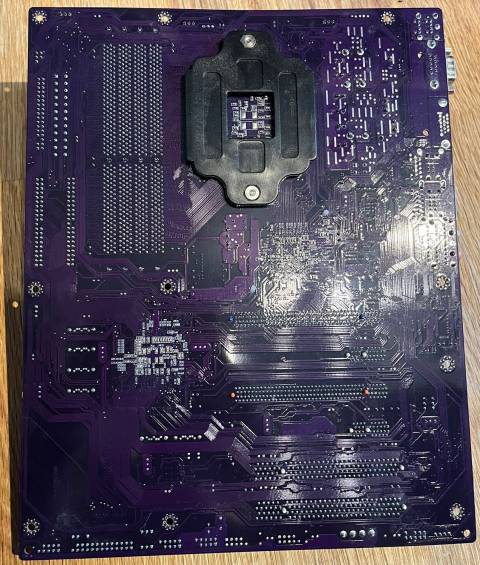

Image 4 of 7 (iXBT)

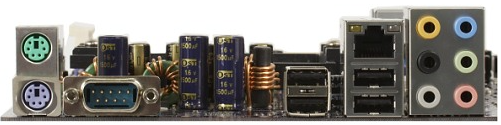

Image 5 of 7 (iXBT)
Image 6 of 7 (ElektroGott)

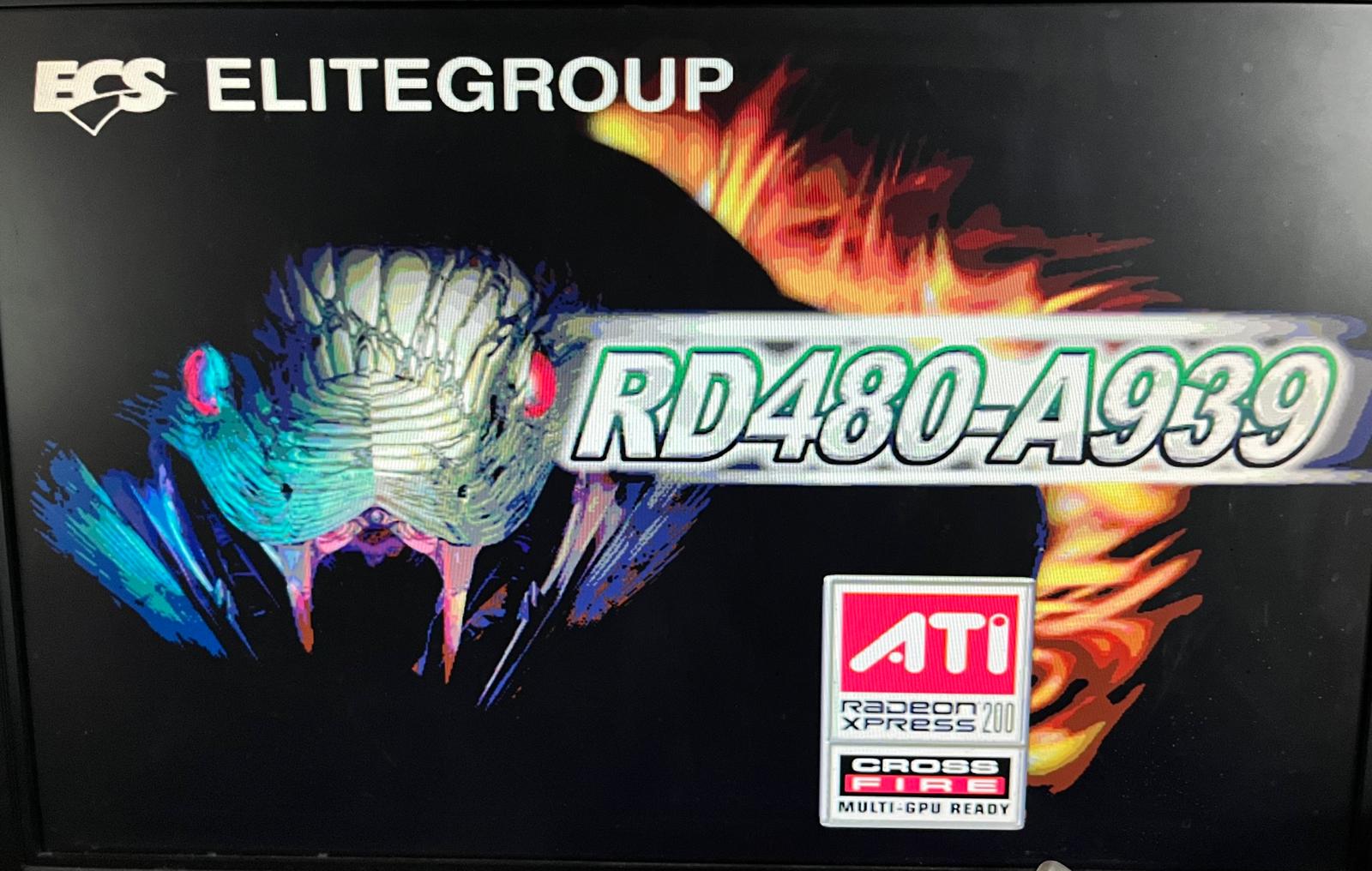

Image 7 of 7 (iXBT)
