DFI NF4-SLI Infinity
Chipset
Socket
FSB speeds 800 MHz1000 MHz
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
4 GB
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
S/PDIF
4x
SATA I
1x
Serial
10x
USB 2.0
Expansion slots3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-05-11T17:06:08Z
Board info score is 9.5/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Super I/O
7 BIOS files available
Award - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
6.00PG
BIOS version
CK8LD329
Logs
8 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.0
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Size
1.4MB
Filename
Name
Version
1.0
Arch
x86-64
OS support
Windows 2000
Windows NT 4.0
Size
819.6KB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.9MB
Filename
Version
Arch
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs

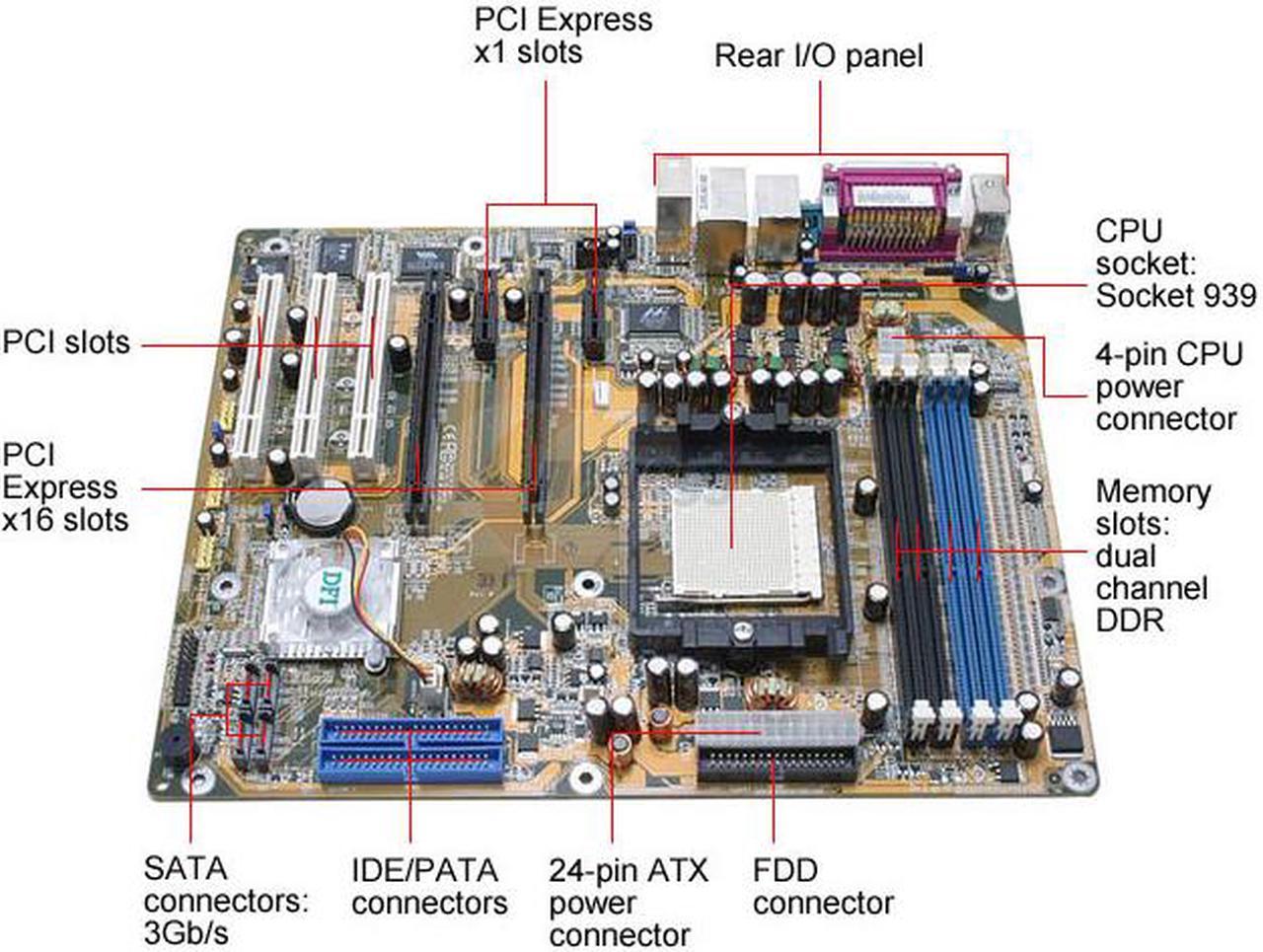

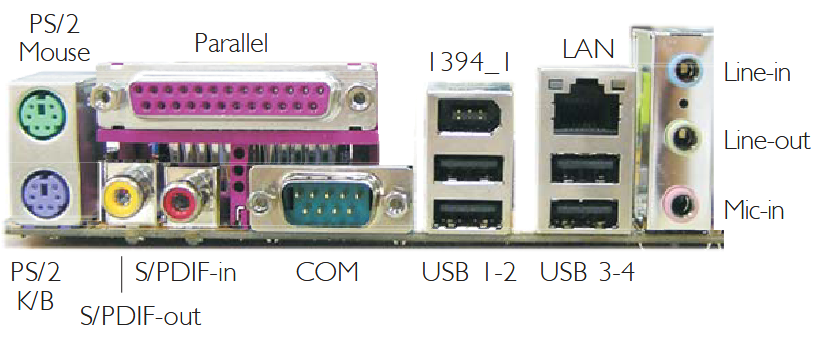

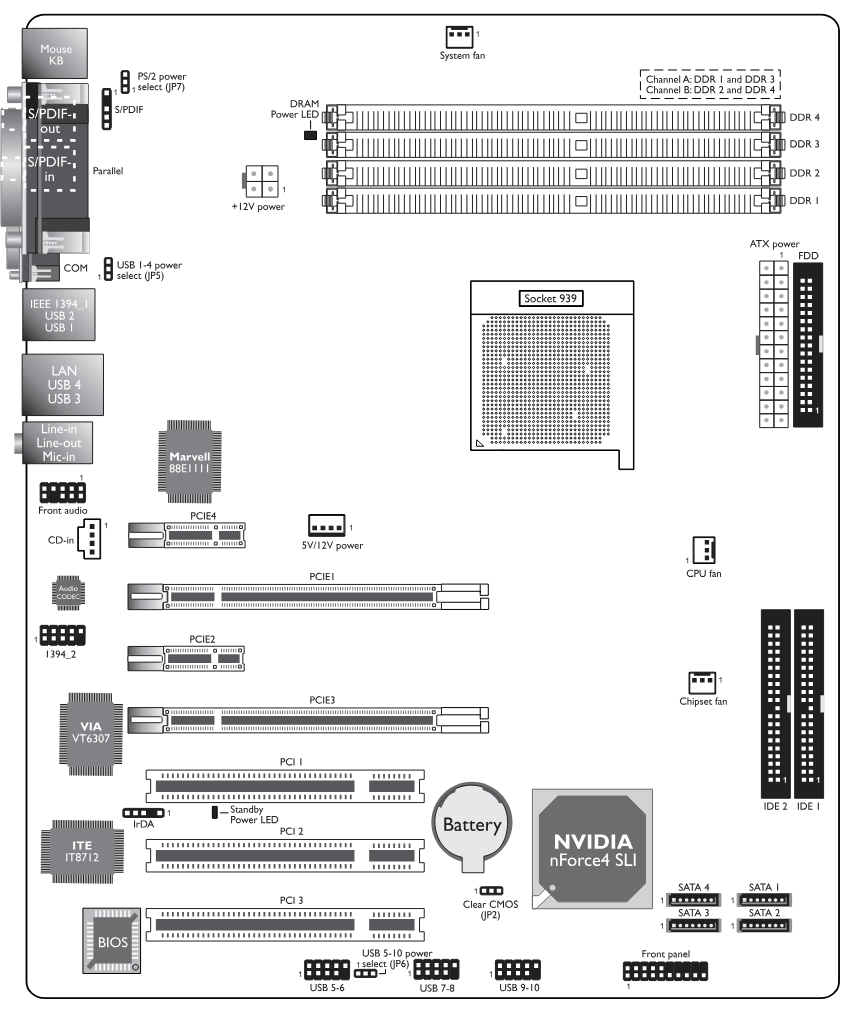

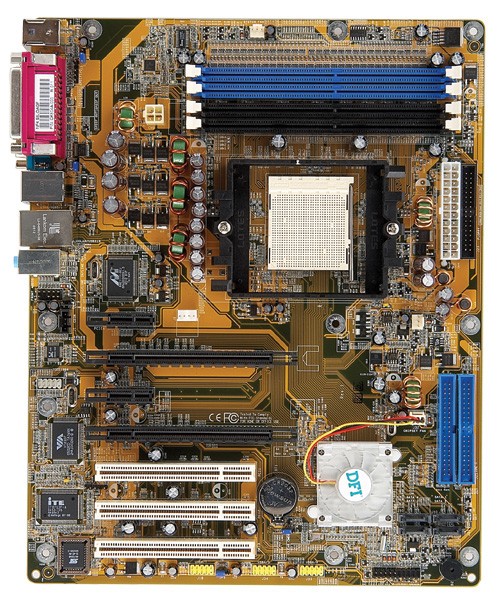

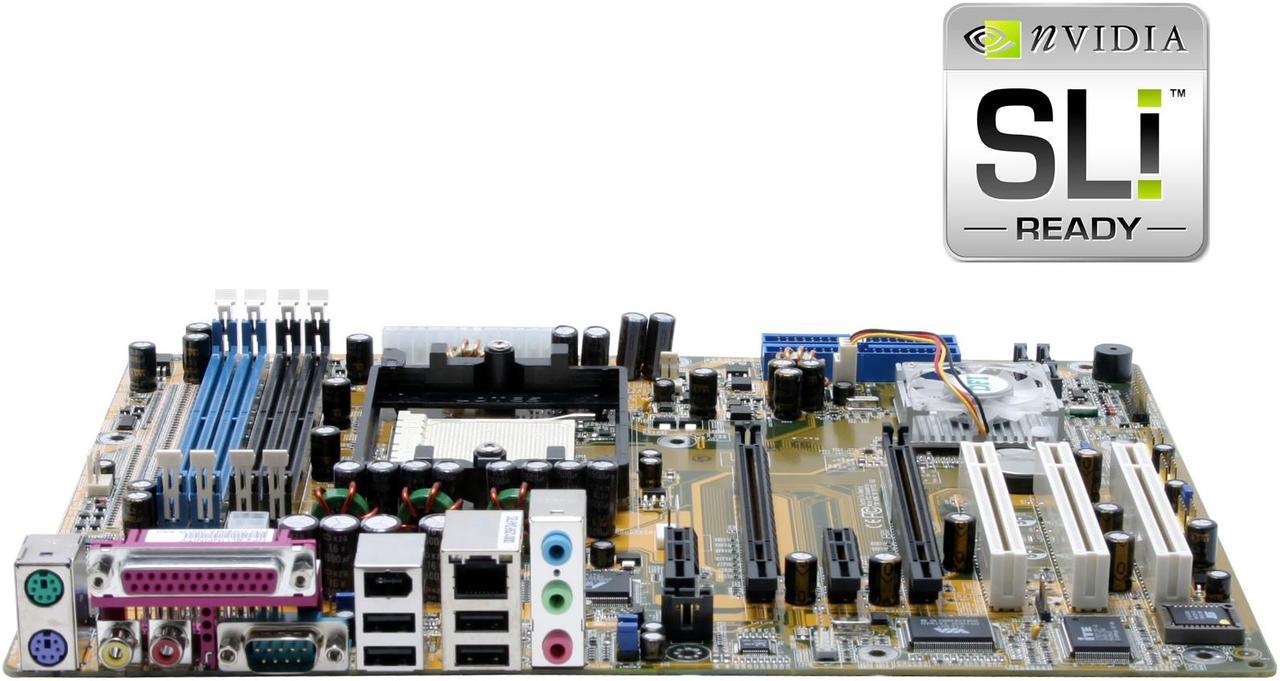

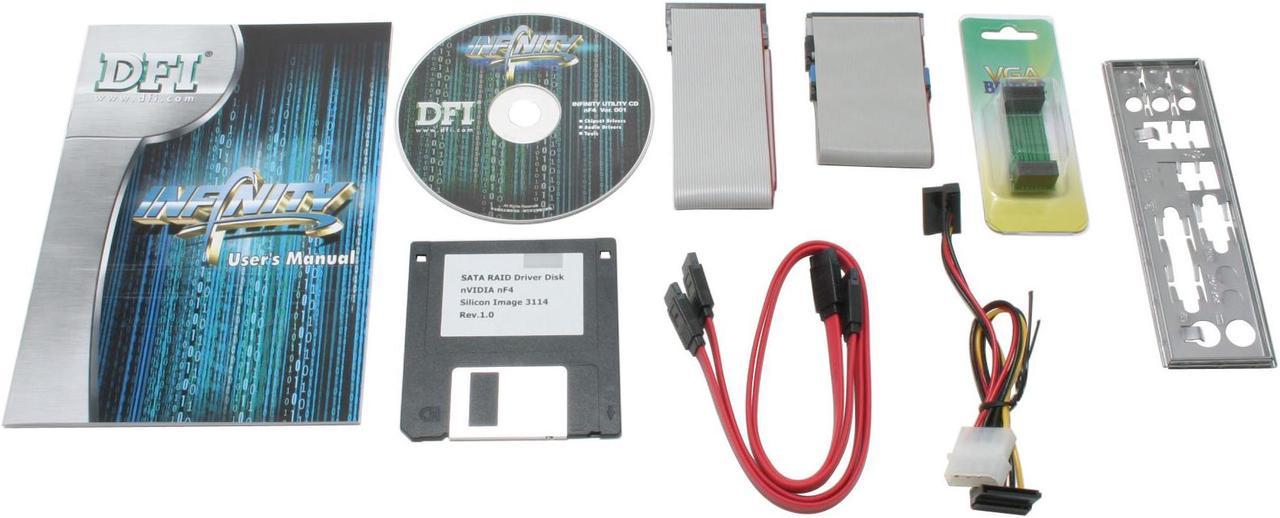

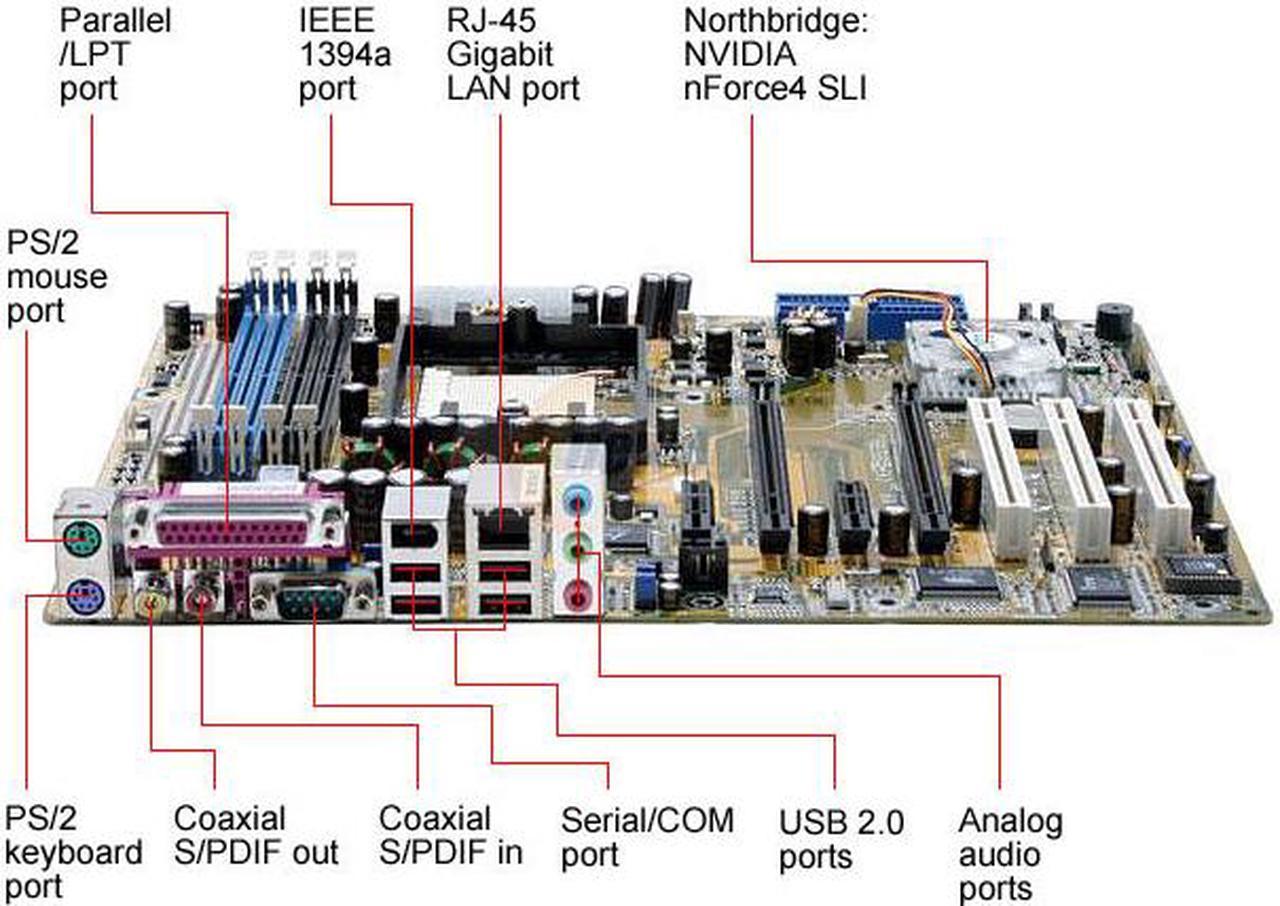

Image 1 of 8 (DFI)
Image 2 of 8 (DFI)
Image 3 of 8 (DFI)
Image 4 of 8 (DFI)
Image 5 of 8 (DFI)
Image 6 of 8 (DFI)
Image 7 of 8 (DFI)
Image 8 of 8 (DFI)
