Biostar NF500 754
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
800 MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
293mm x 208mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2 GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA I
2x
Serial
10x
USB 2.0
cardExpansion slots
4x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2023-12-14T20:45:23Z
Board info score is 9.6/10
chip Chips
-> Chipset part
Nvidia CK804 (nForce4)
-> Audio
Realtek ALC655 (AC97)
-> Network
Realtek RTL8201BL (Fast Ethernet PHY)
-> Super I/O
ITE IT8712F
cpufam CPU family support
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/31/2007-NF-CK804-6A61FB09C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.0
Arch
x86
OS support
Windows 2000 Windows NT 4.0
Size
1.4MB
Filename
Name
Version
1.0
Arch
x86-64
OS support
Windows 2000 Windows NT 4.0
Size
819.6KB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows 2000 Windows XP/2k3
Size
37.8MB
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows NT 4.0
Size
16.5KB
Filename
Version
Arch
x86
OS support
Windows 2000
Size
31.9KB
Filename
Version
Arch
x86
OS support
Windows 9x
Size
19KB
Filename

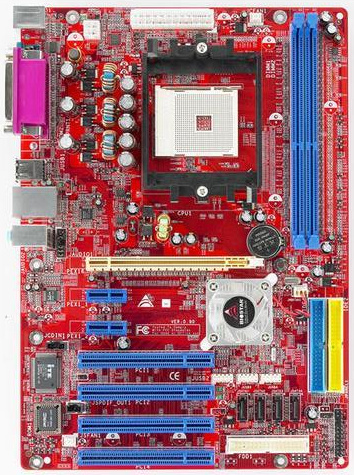

image1 Image 1 of 3 (evasive)

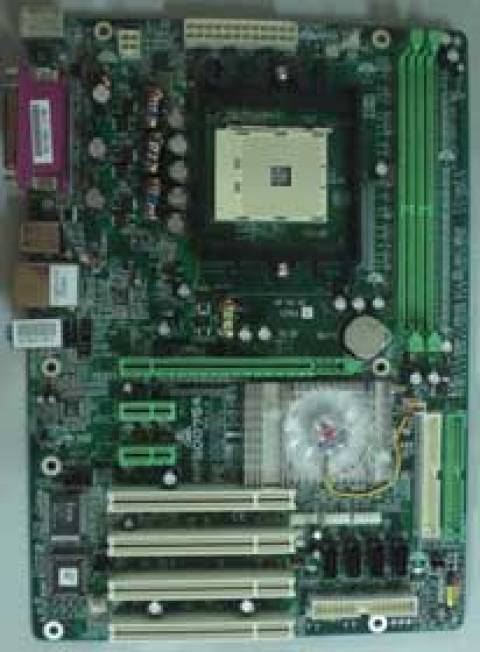

image2 Image 2 of 3

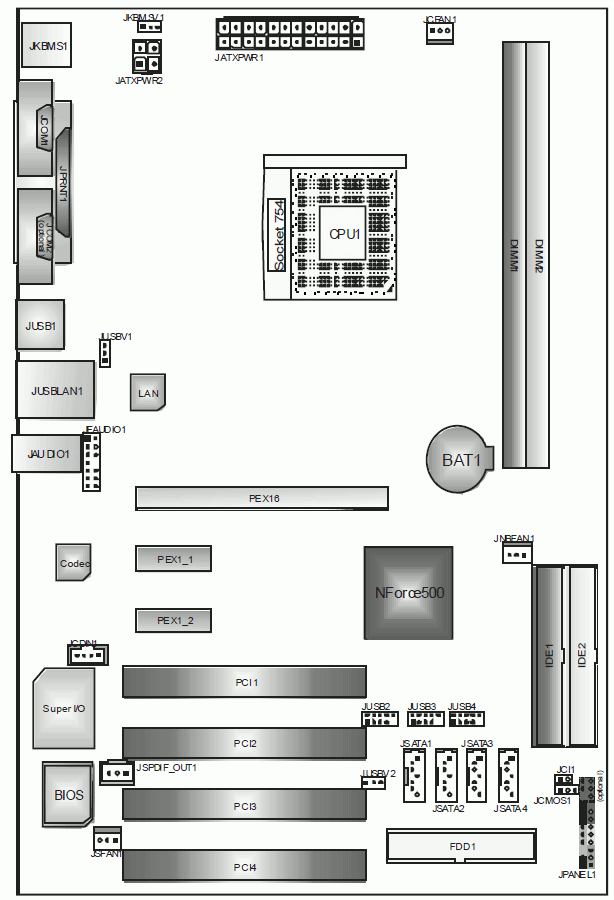

image3 Image 3 of 3
