ASUS Sabertooth 990FX (Rev. 1.01)
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
32GB(DDR3-1866)
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector

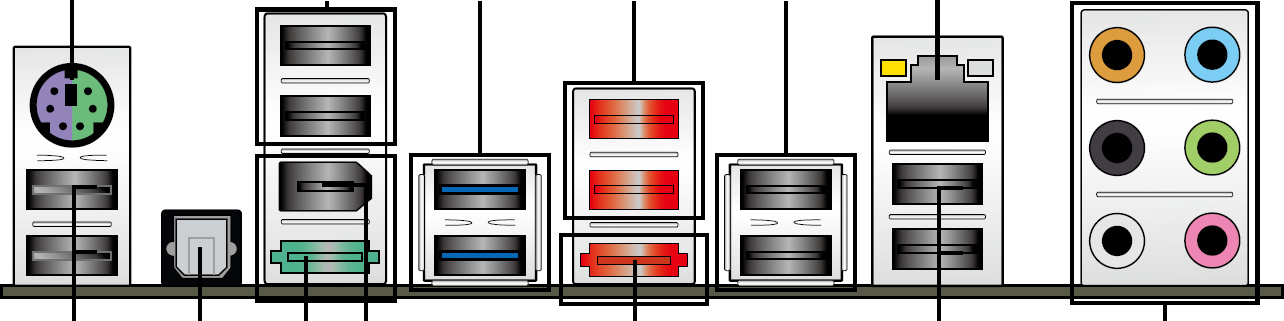

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
6x
SATA III
1x
Serial
1x
Toslink
14x
USB 2.0
4x
USB 3.0
2x
eSATA II
Expansion slots1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
2x
PCIe x16 @ x8
Notes
- supports SLI and CrossFireX
Last updated 2025-07-22T11:51:05Z
Board info score is 9/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> SATA ctrl.
-> Super I/O
CPU family support
10 BIOS files available
AMI - 10 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-28
File
Logs

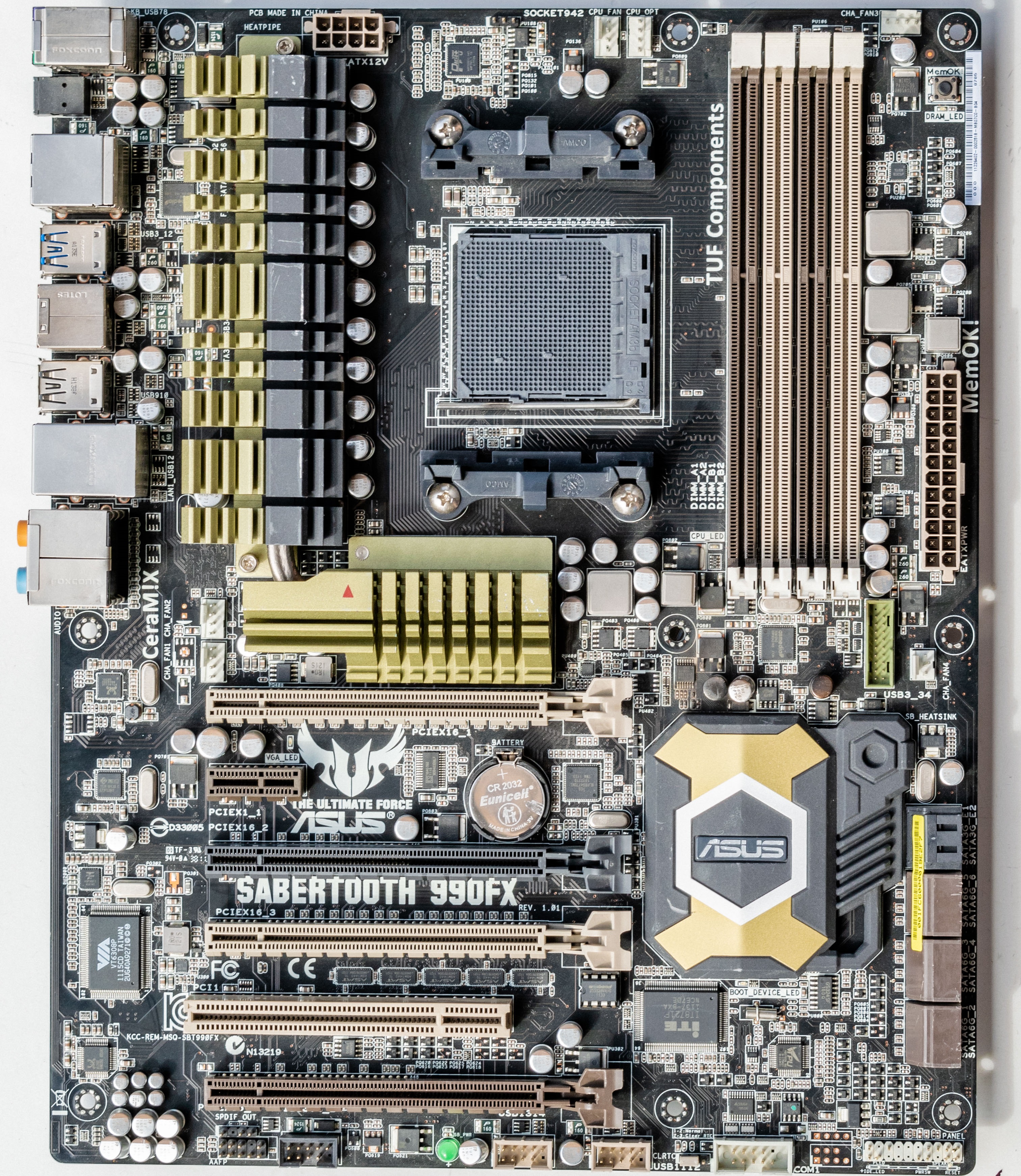

Image 1 of 6 (ASUS)

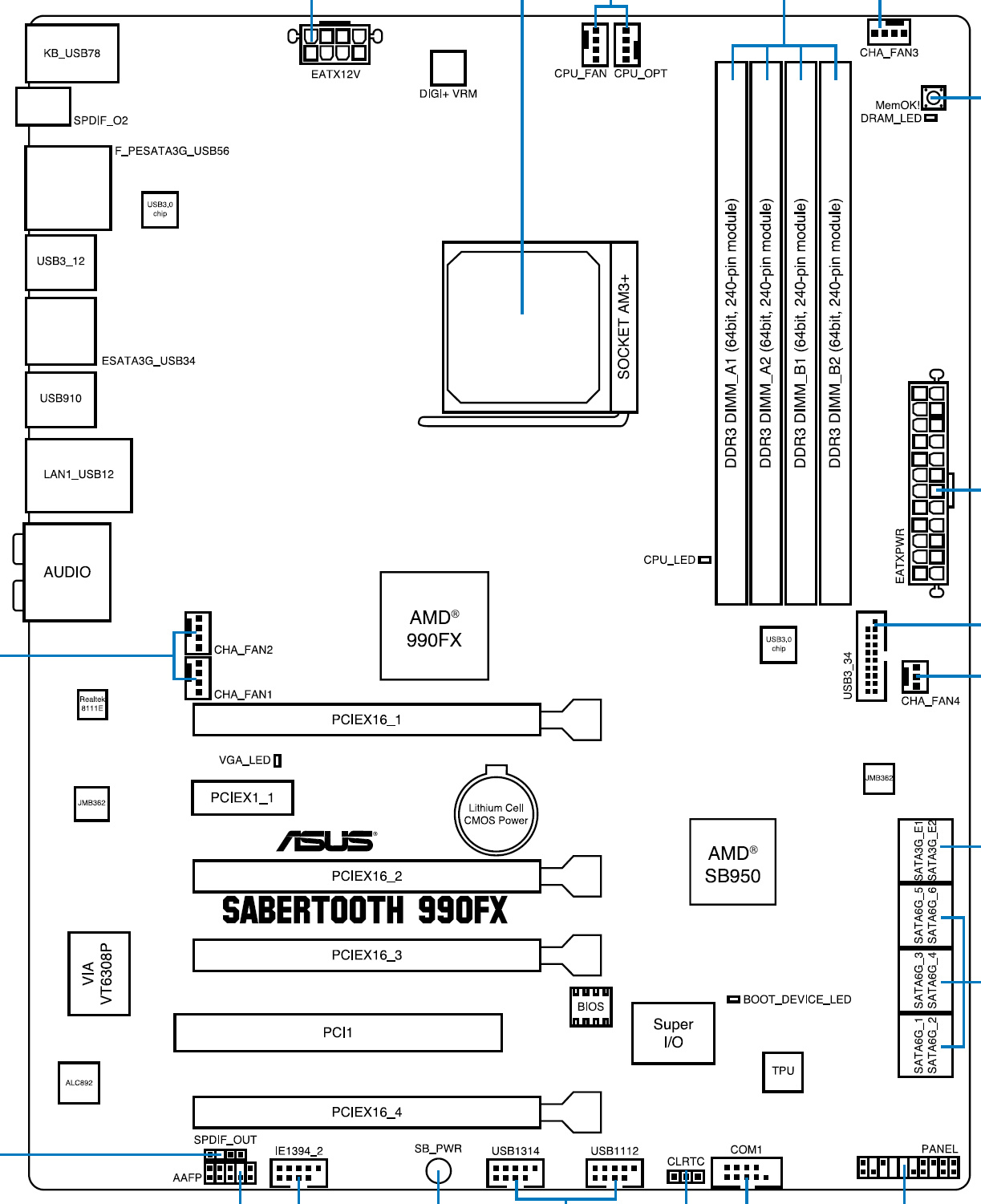

Image 2 of 6 (Motherboard Continuum)

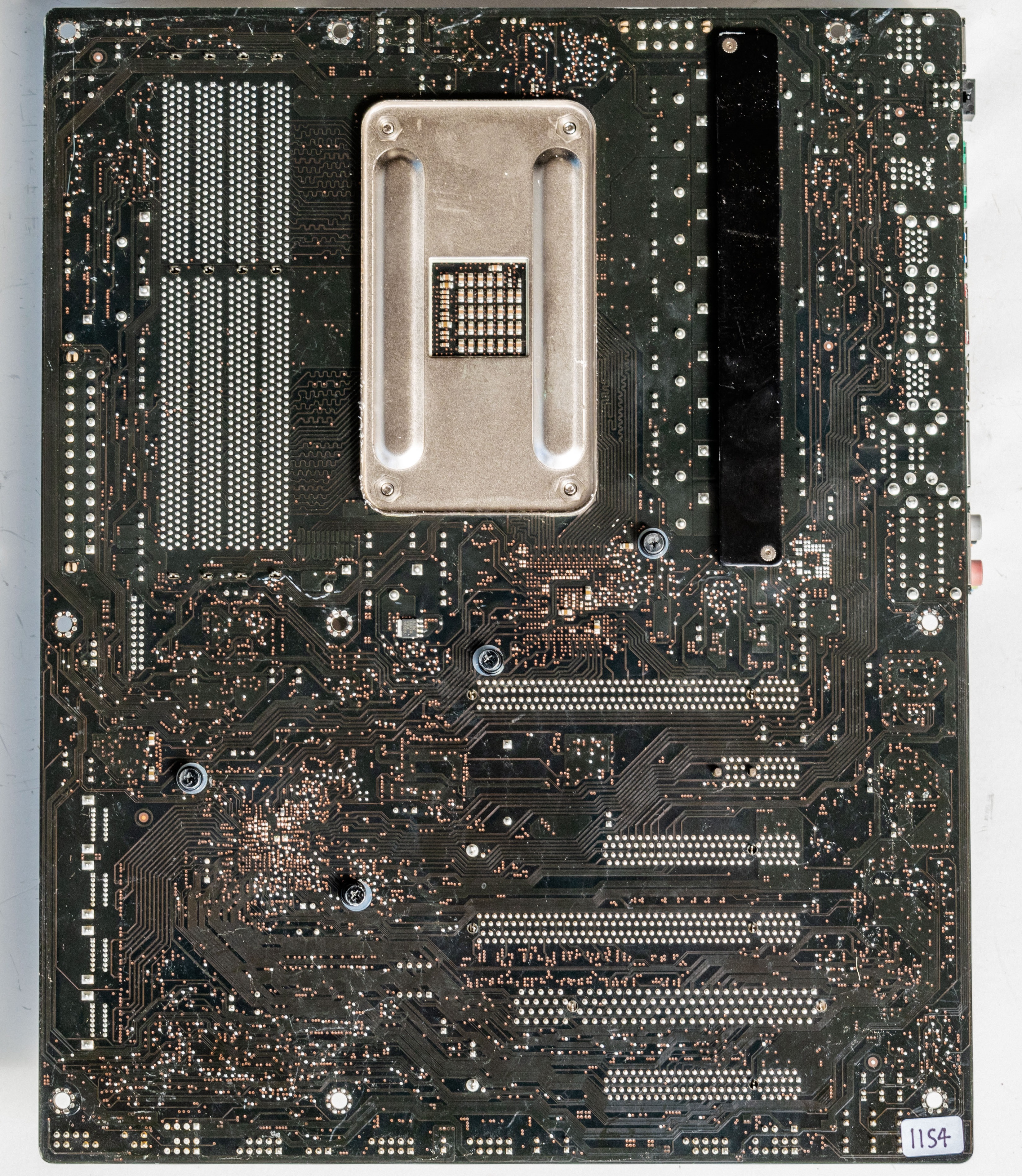

Image 3 of 6 (Carlos S. M.)

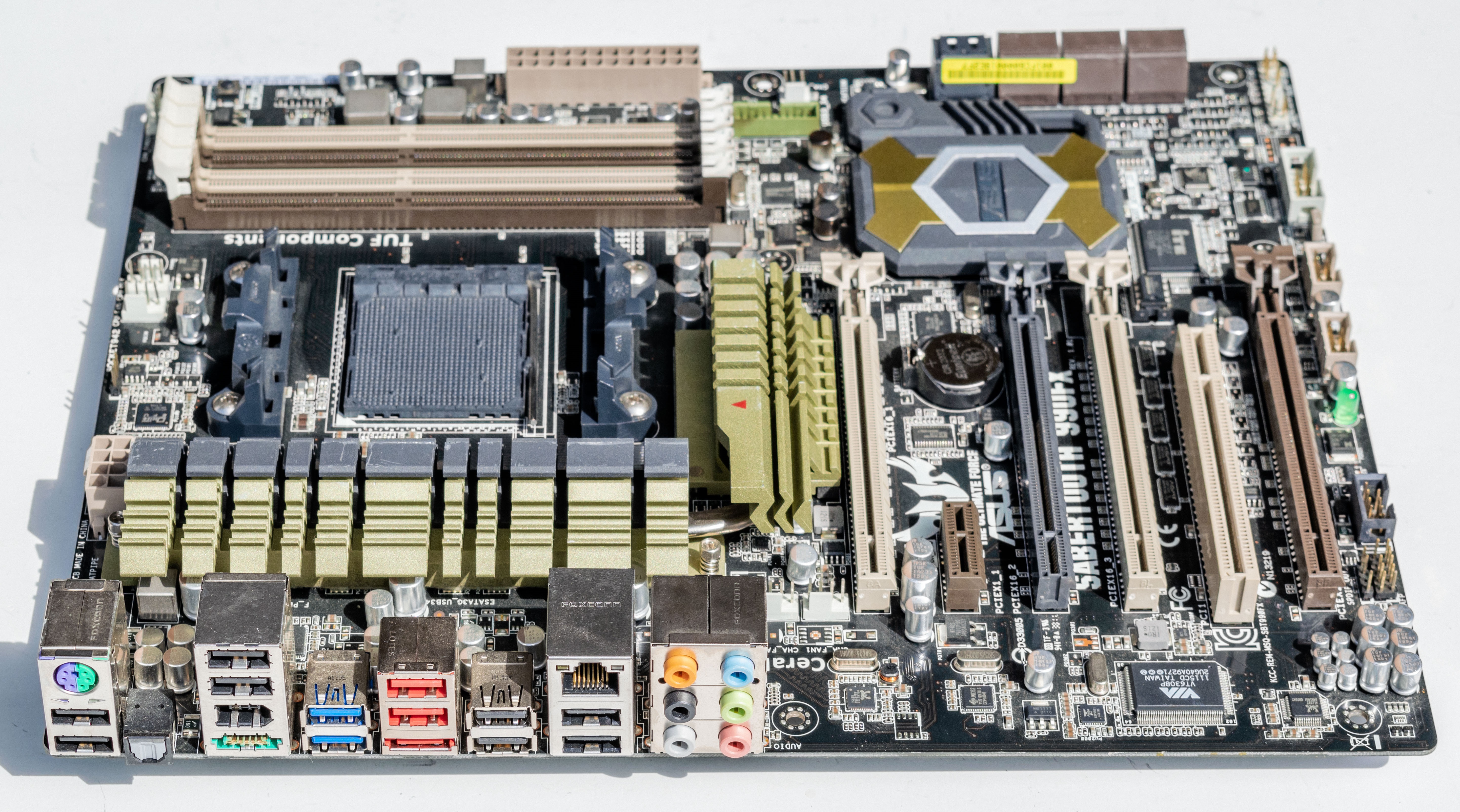

Image 4 of 6 (Motherboard Continuum)

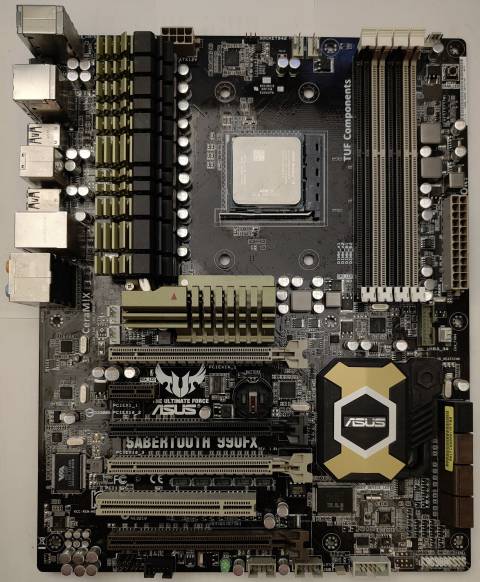

Image 5 of 6 (Motherboard Continuum)

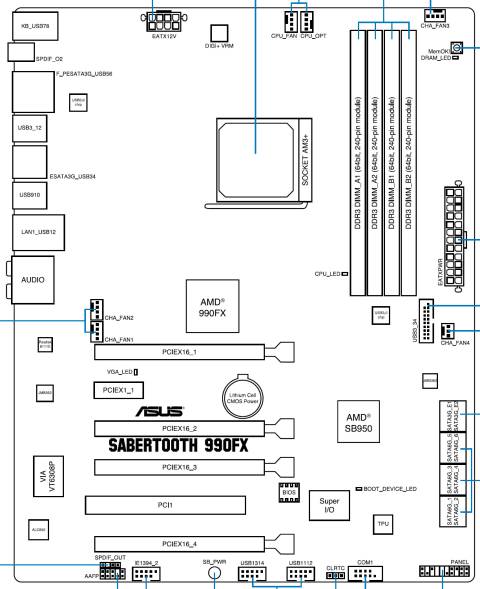

Image 6 of 6 (ASUS)
