ASUS P5RD1-VM
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 219mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
1x
Serial
1x
TV-Out
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-08-13T07:57:40Z
Board info score is 8.9/10
bios 9 BIOS files available

vendor AMI - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1104-000010-00101111-071706-RC410-A0313001
Note
Latest beta BIOS
Core version
080012
BIOS version
Logs
POST string
63-1002-000010-00101111-041106-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0904-000010-00101111-032406-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0903-000010-00101111-031306-RC410-A0313001
Note
Beta BIOS
Core version
080012
BIOS version
Logs
POST string
63-0701-000010-00101111-111105-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0602-000010-00101111-101905-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0501-000010-00101111-100505-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0402-000010-00101111-091505-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
POST string
63-0115-000010-00101111-082605-RC410-A0313001
Note
Core version
080012
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.14.10.6525
OS support
Windows XP/2k3
Arch
x86
Size
23.9MB
Filename
Name
Version
6.14.10.6525
OS support
Windows XP/2k3
Arch
x86
Size
23.9MB
Filename
Name
Version
1697
OS support
Windows 7 Windows Vista
Arch
x86 , x86-64
Size
418.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

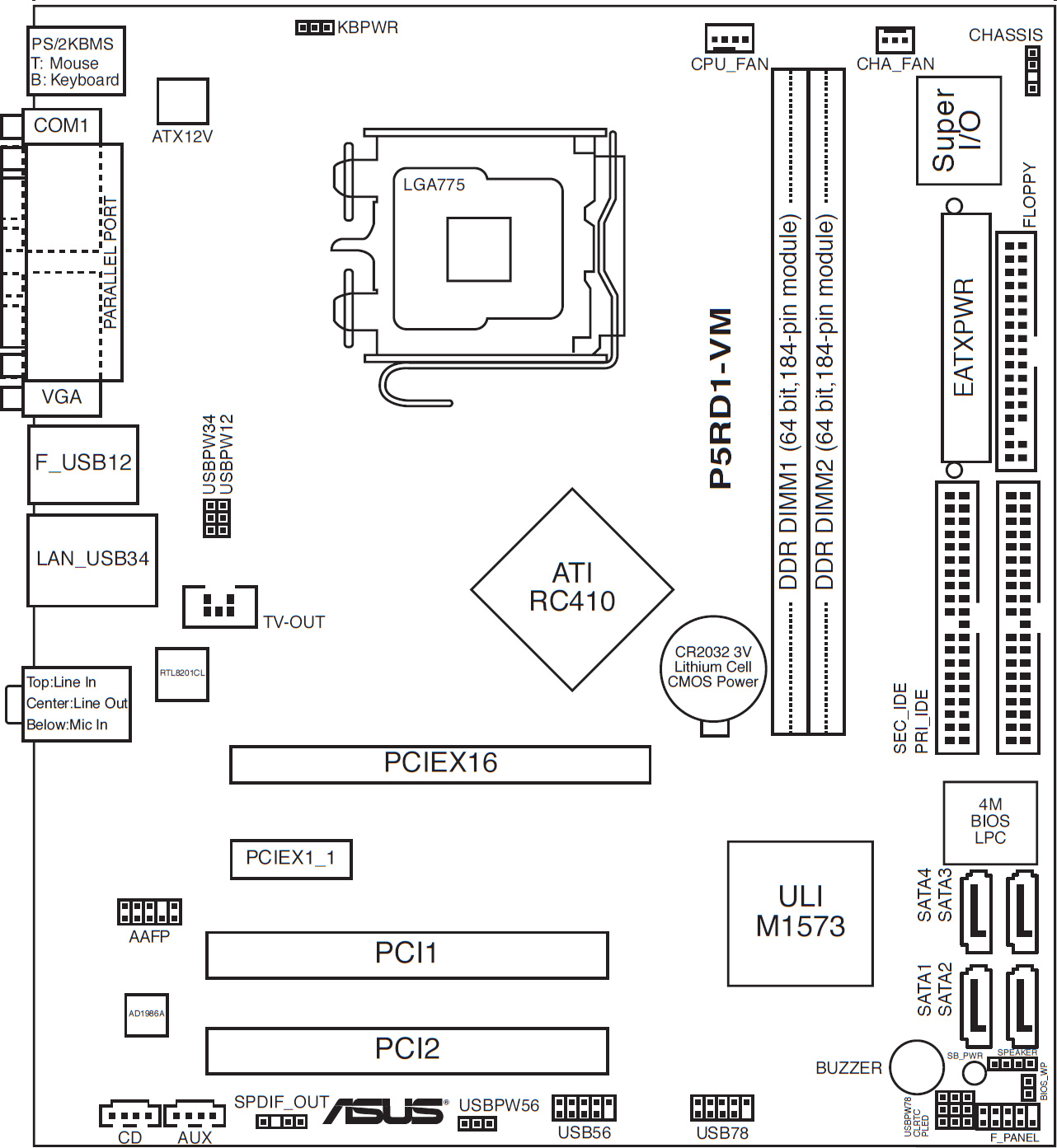

image1 Image 1 of 2 (ASUS)

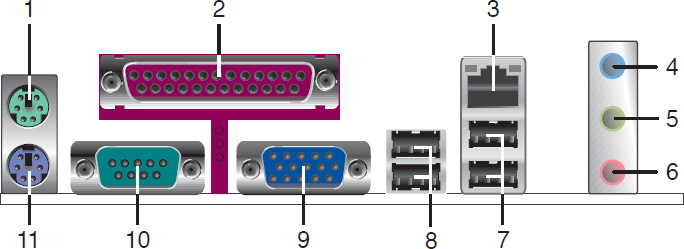

image2 Image 2 of 2 (ASUS)
