ASUS M4A88T-M/USB3 (Rev. 2.00G)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
2x
USB 3.0
1x
VGA
Expansion slots1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2024-07-27T10:02:44Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
7 BIOS files available
AMI - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0704-000001-00101111-010612-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0703-000001-00101111-122310-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0702-000001-00101111-120110-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0603-000001-00101111-082310-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0502-000001-00101111-062510-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0406-000001-00101111-052710-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
POST string
65-0304-000001-00101111-041910-RS880_SB7-A1662001
Note
Core version
080015
BIOS version
Logs
3 drivers available
Version
OS support
Arch
Size
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs

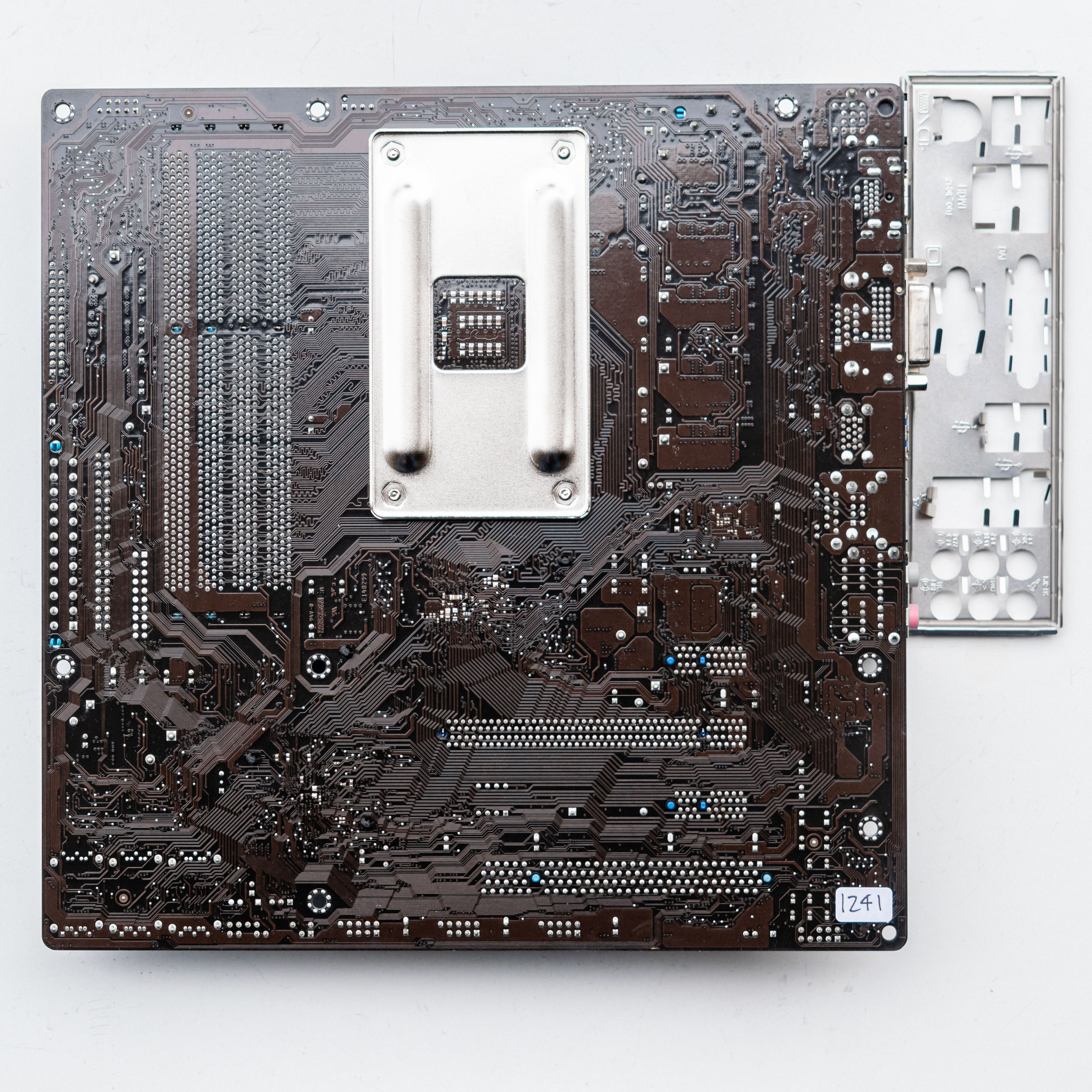

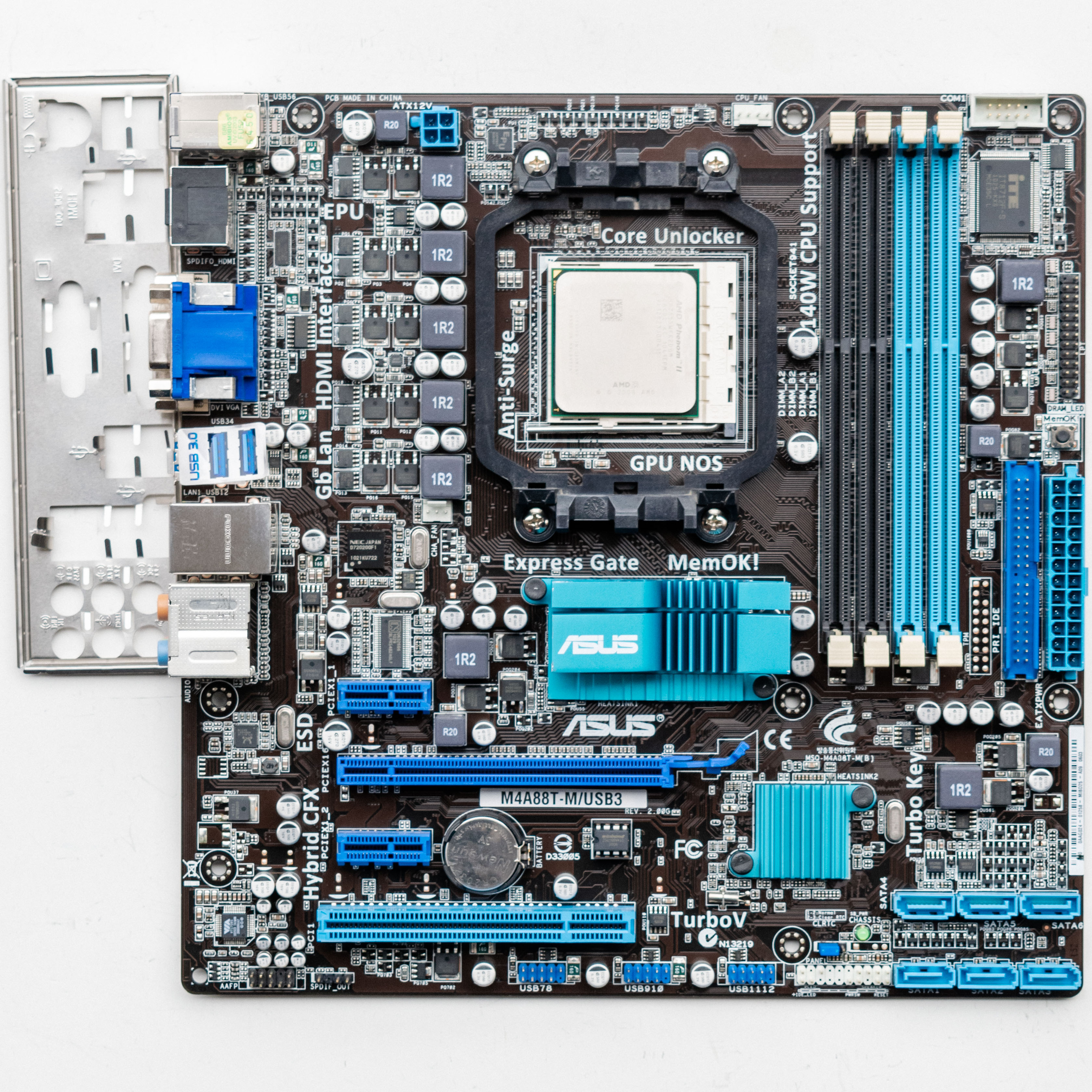

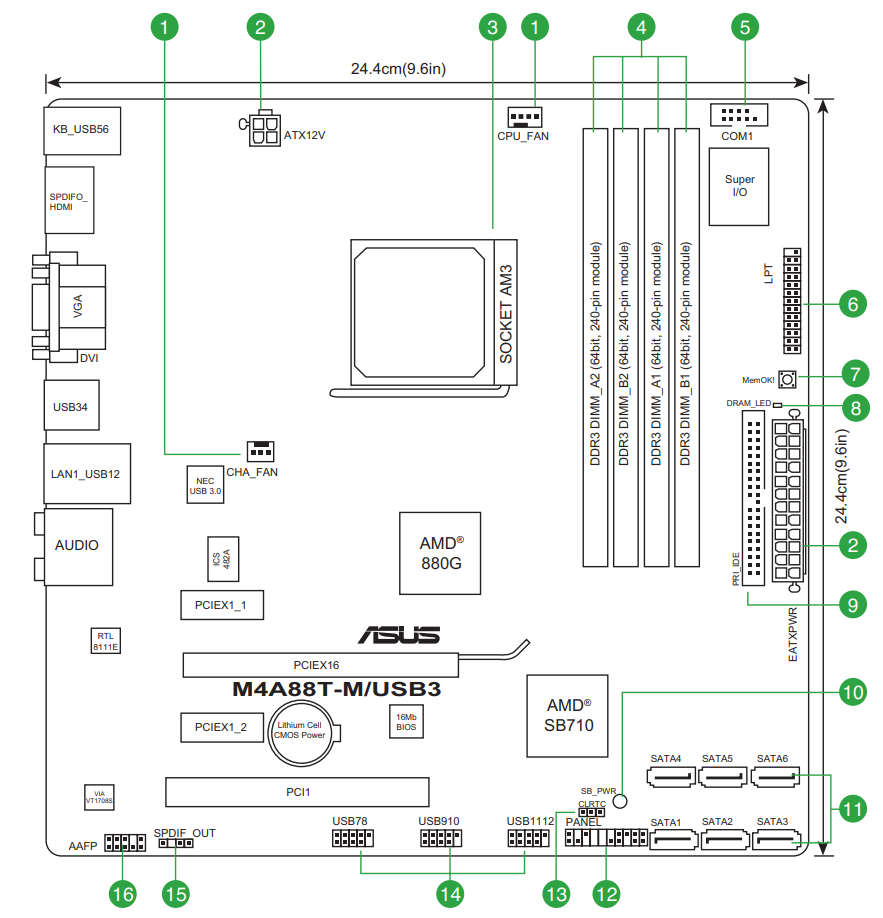

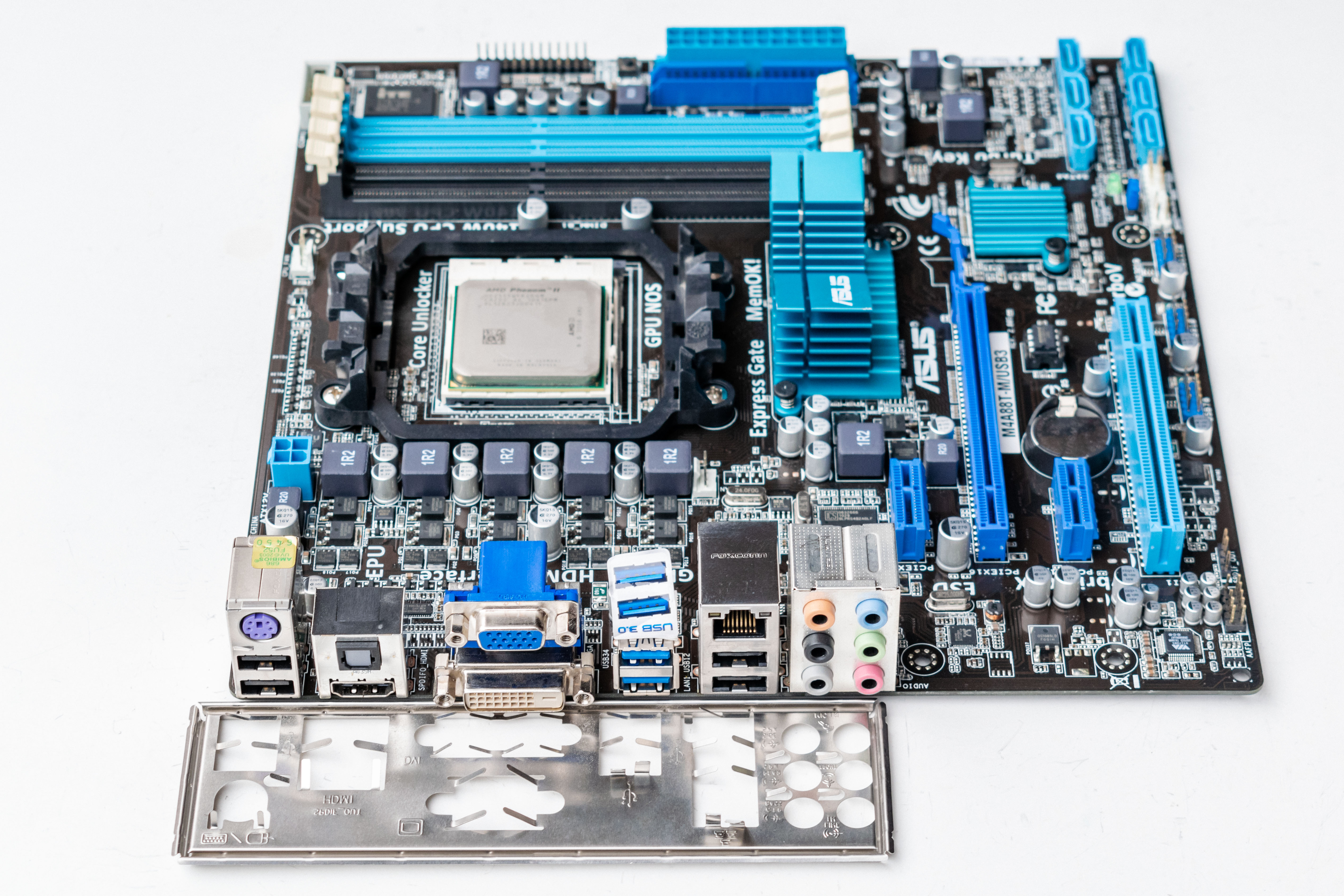

Image 1 of 4 (ASUS)
Image 2 of 4 (Motherboard Continuum)
Image 3 of 4 (Motherboard Continuum)
Image 4 of 4 (Motherboard Continuum)
