ASUS M4A78LT-M/CM1730/DP_MB (Rev. 1.00G)
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS CM1730 System Board
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Toslink
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Cost reduced version of ASUS M4A78LT-M

Last updated 2025-05-10T14:13:43Z
Board info score is 9.4/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0802-000001-00101111-082410-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0801-000001-00101111-061110-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0801-000001-00101111-032713-RS760_SB7-A1822001
Note
CM1730 Bios
Core version
080015
BIOS version
Logs
POST string
64-0605-000001-00101111-041410-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0601-000001-00101111-031810-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0601-000001-00101111-122111-RS760_SB7-A1822001
Note
CM1730 Bios
Core version
080015
BIOS version
Logs
POST string
64-0508-000001-00101111-022210-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0503-000001-00101111-010710-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
POST string
64-0502-000001-00101111-070811-RS760_SB7-A1822001
Note
CM1730/CM1830 Bios
Core version
080015
BIOS version
Logs
POST string
64-0401-000001-00101111-041311-RS760_SB7-A1822001
Note
CM1730/CM1830 Bios
Core version
080015
BIOS version
Logs
POST string
64-0309-000001-00101111-030811-RS760_SB7-A1822001
Note
CM1730/CM1830 Bios
Core version
080015
BIOS version
Logs
POST string
64-0205-000001-00101111-120309-RS760_SB7-A1501001
Note
M4A78LT-M Bios
Core version
080015
BIOS version
Logs
drv 3 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
2011-03
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

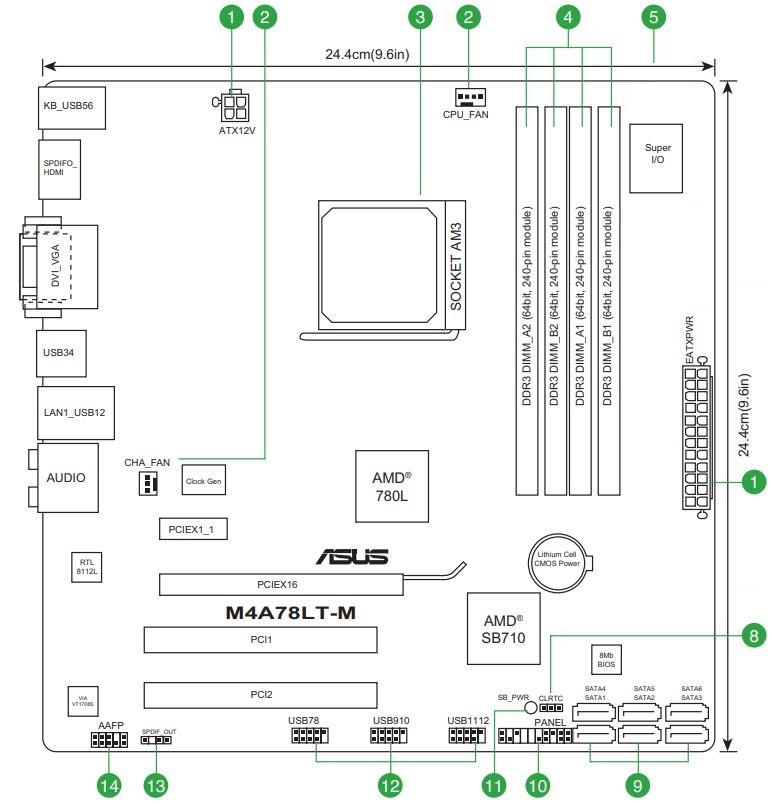

image1 Image 1 of 4 (ASUS)

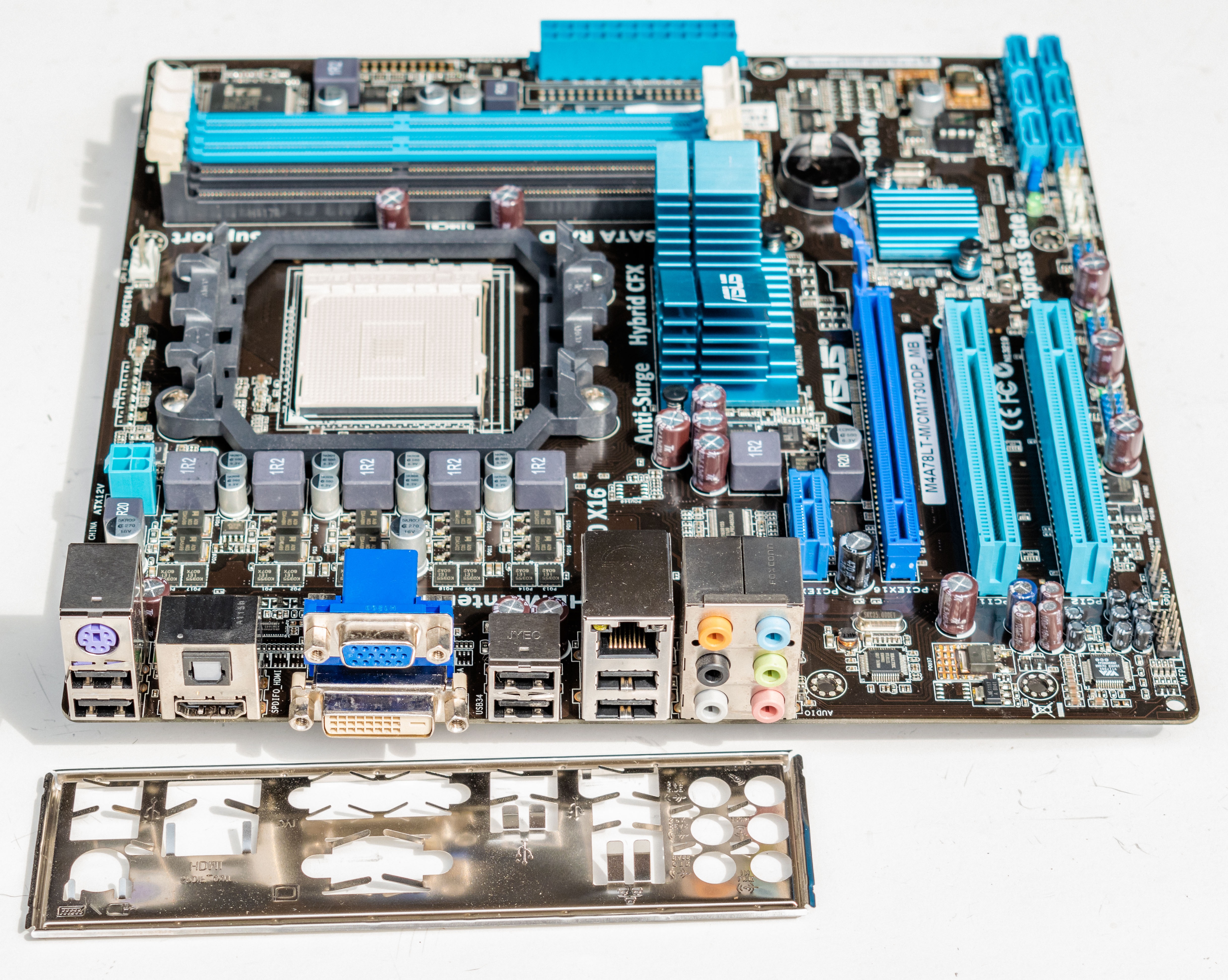

image2 Image 2 of 4 (Motherboard Continuum)

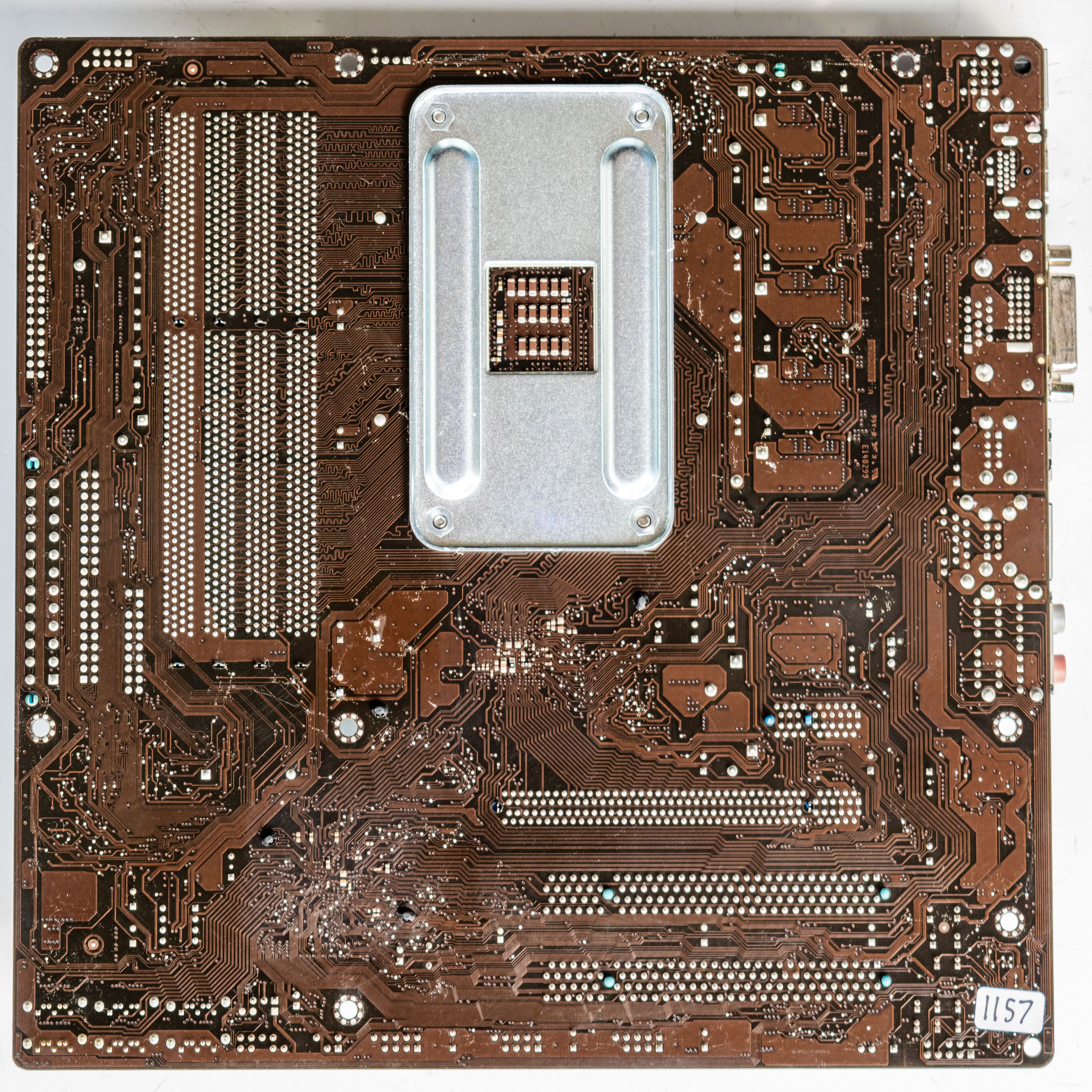

image3 Image 3 of 4 (Motherboard Continuum)

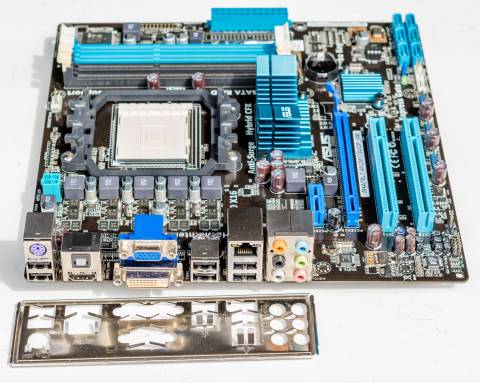

image4 Image 4 of 4 (Motherboard Continuum)
