ASUS M4A785-M (Rev. 1.01G)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-31T12:57:52Z
Board info score is 9.4/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1101-000001-00101111-112012-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-1006-000001-00101111-081810-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0906-000001-00101111-041410-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0803-000001-00101111-031810-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0702-000001-00101111-020610-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0604-000001-00101111-010810-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0601-000001-00101111-121509-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0506-000001-00101111-112409-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0503-000001-00101111-092809-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0406-000001-00101111-091009-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0405-000001-00101111-090709-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
POST string
64-0307-000001-00101111-080709-RS785_SB7-A1429001
Note
Core version
080015
BIOS version
Logs
drv 3 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

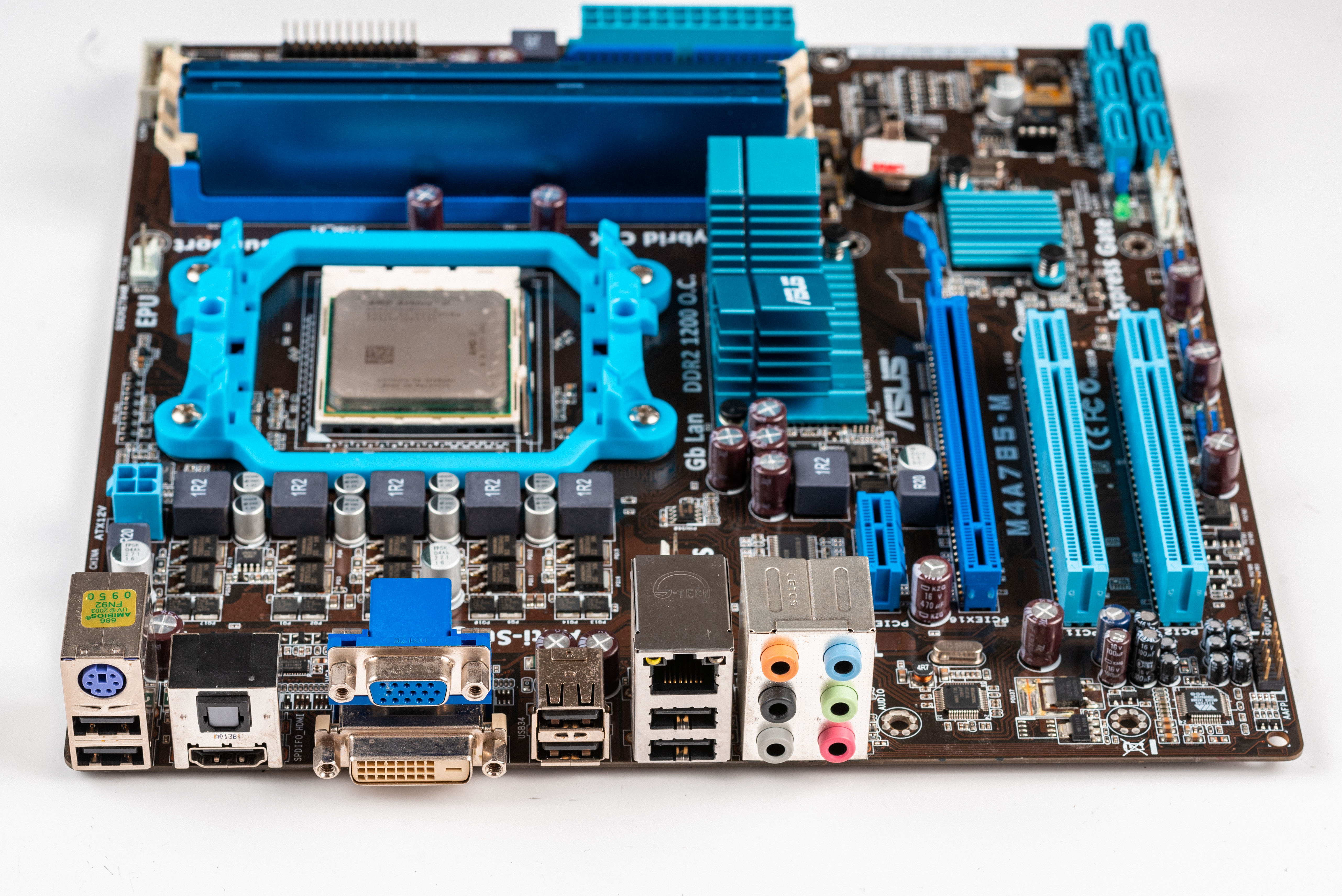

image1 Image 1 of 4 (ASUS)

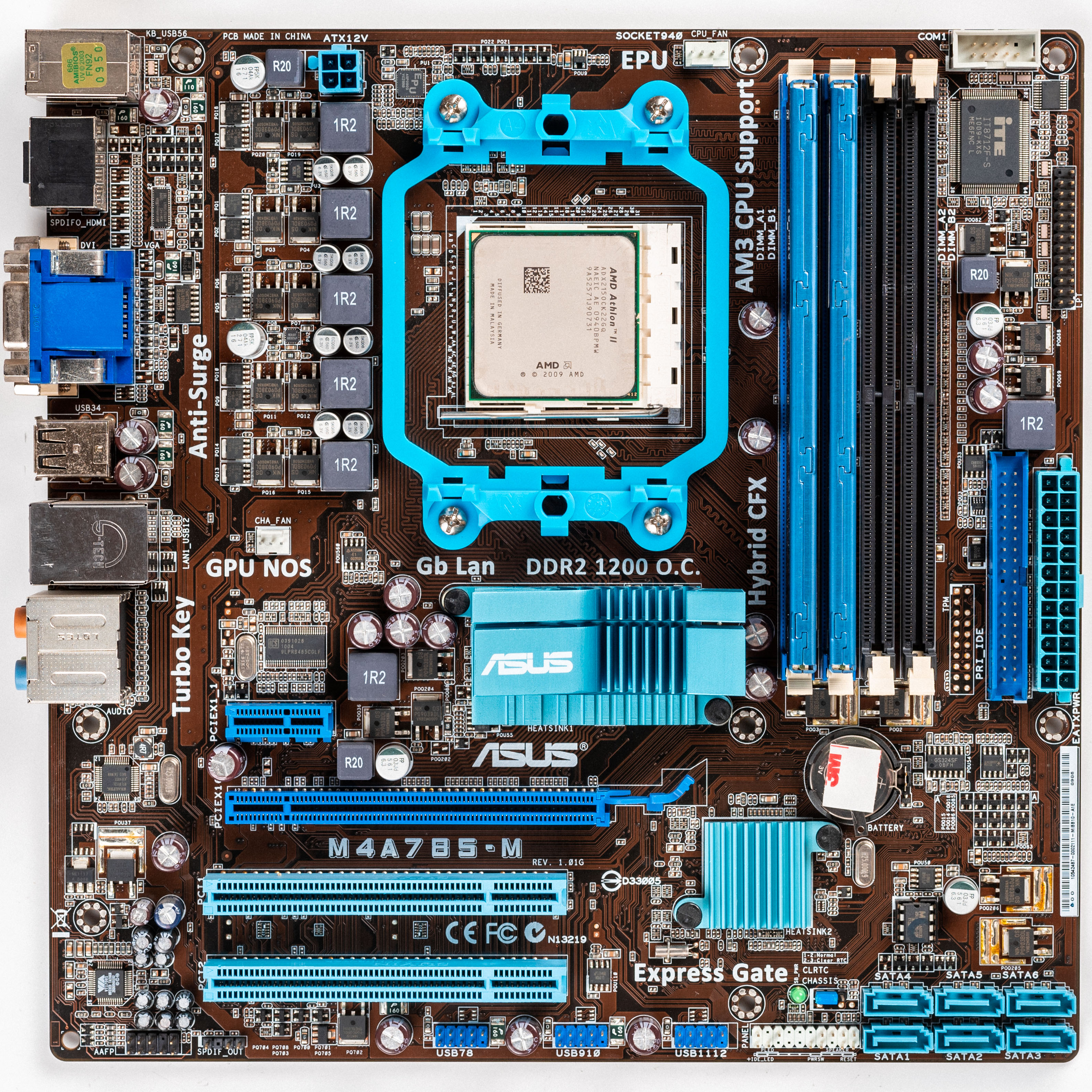

image2 Image 2 of 4 (Motherboard Continuum)

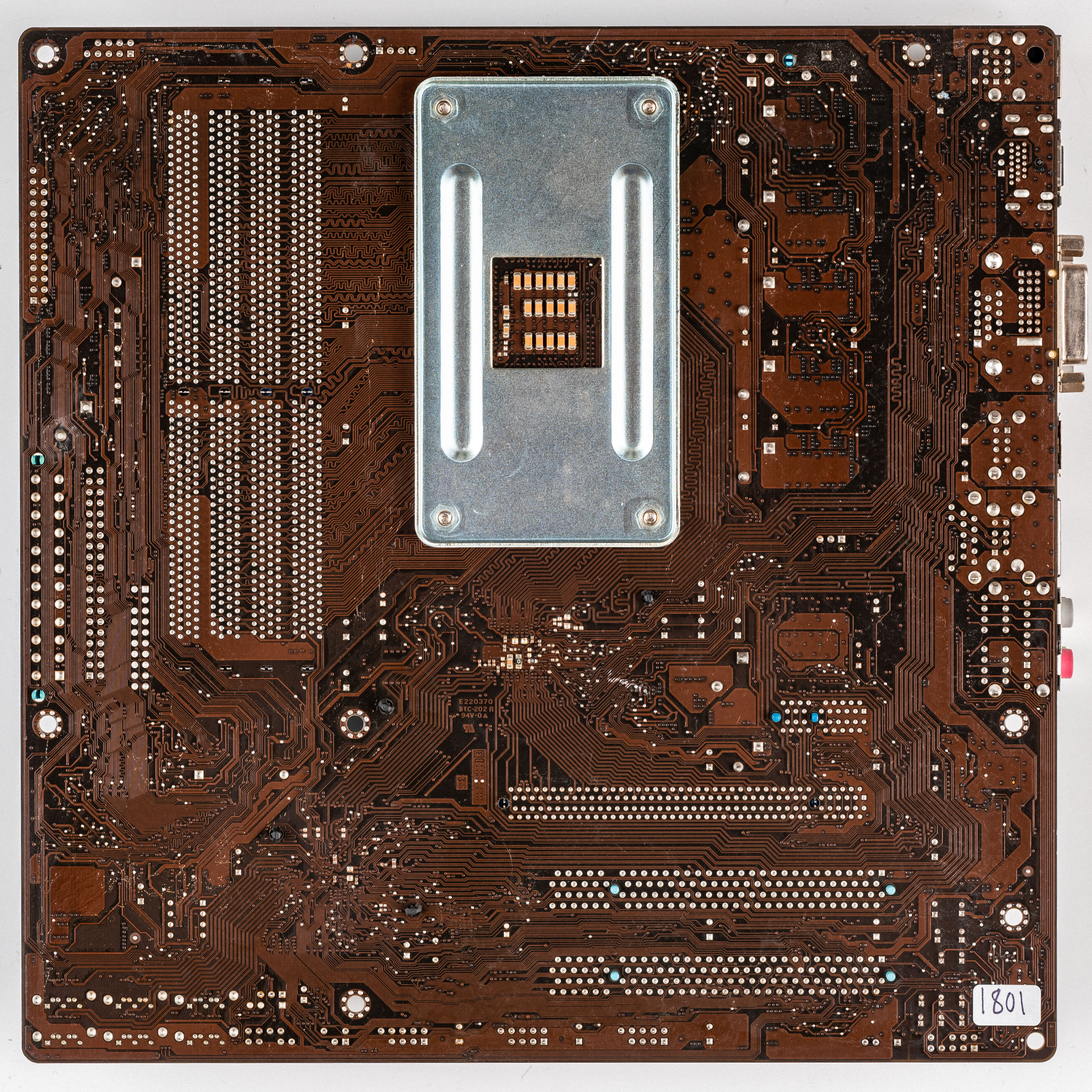

image3 Image 3 of 4 (Motherboard Continuum)

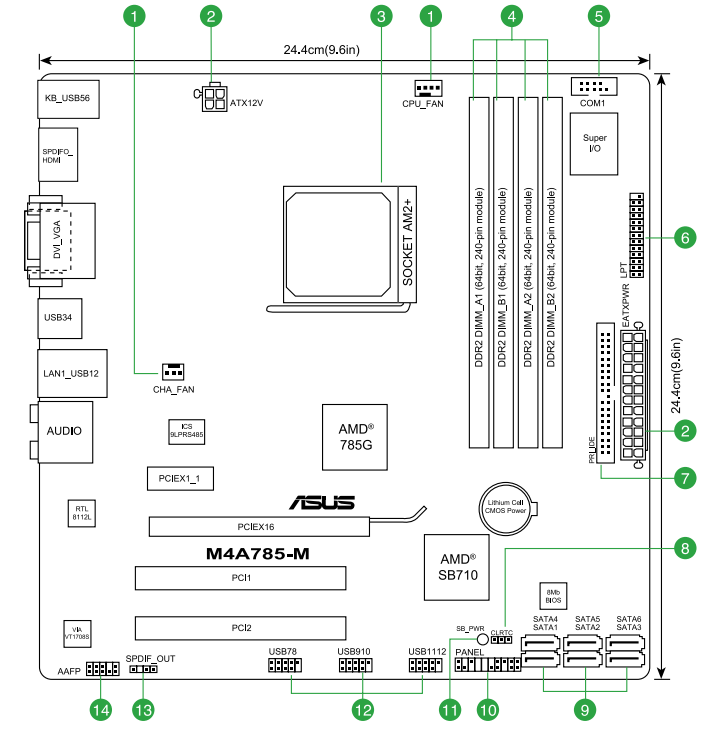

image4 Image 4 of 4 (Motherboard Continuum)
