ASUS M2N68-AM SE2 (Rev. 2.00G)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 203mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-04-08T18:27:49Z
Board info score is 9.4/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1801-000001-00101111-060810-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1409-000001-00101111-042910-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1407-000001-00101111-041410-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1304-000001-00101111-031910-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1103-000001-00101111-012610-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1101-000001-00101111-101609-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-1002-000001-00101111-092209-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-0901-000001-00101111-082509-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-0706-000001-00101111-062909-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-0704-000001-00101111-051909-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-0502-000001-00101111-032809-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
POST string
64-0212-000001-00101111-011609-MCP68SE-A1269000
Note
Core version
080014
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.10.00.5010
OS support
Windows XP/2k3
Arch
x86
Size
6.7MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename

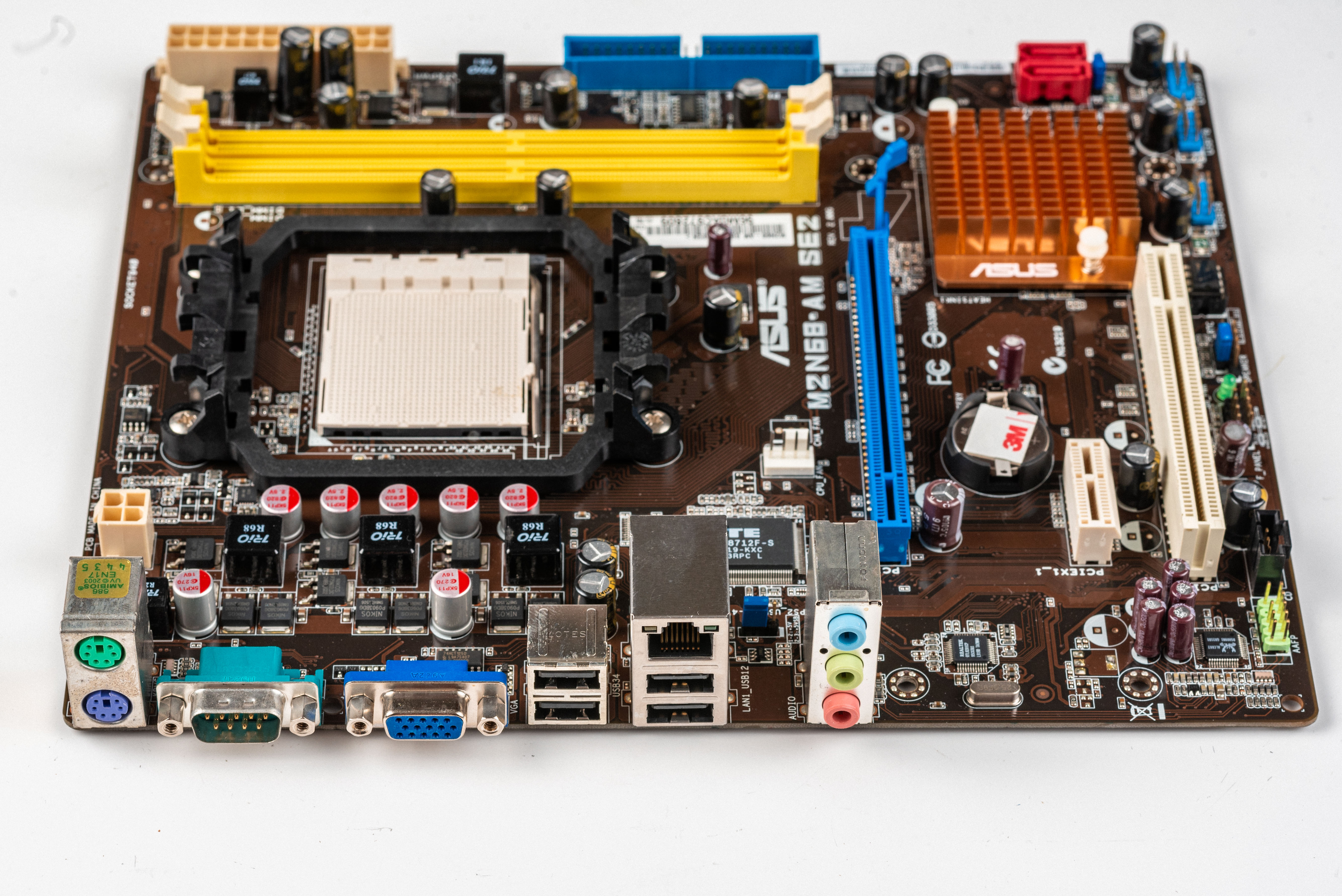

image1 Image 1 of 5 (ASUS)

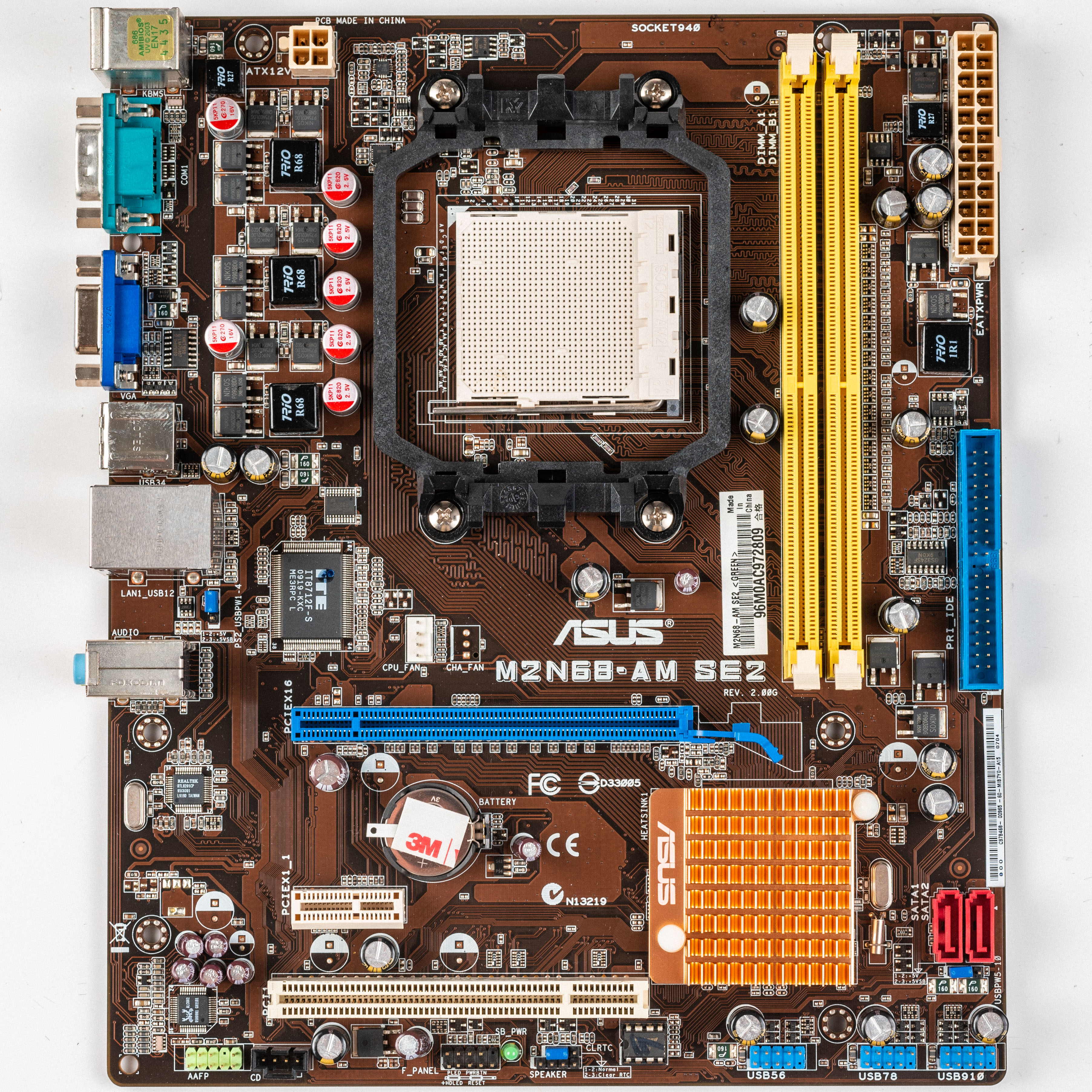

image2 Image 2 of 5 (Motherboard Continuum)

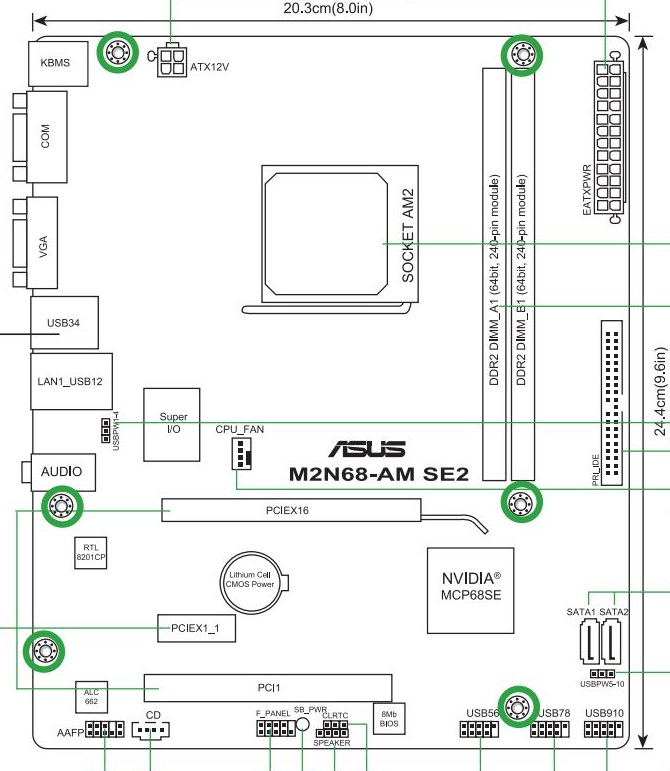

image3 Image 3 of 5 (Motherboard Continuum)

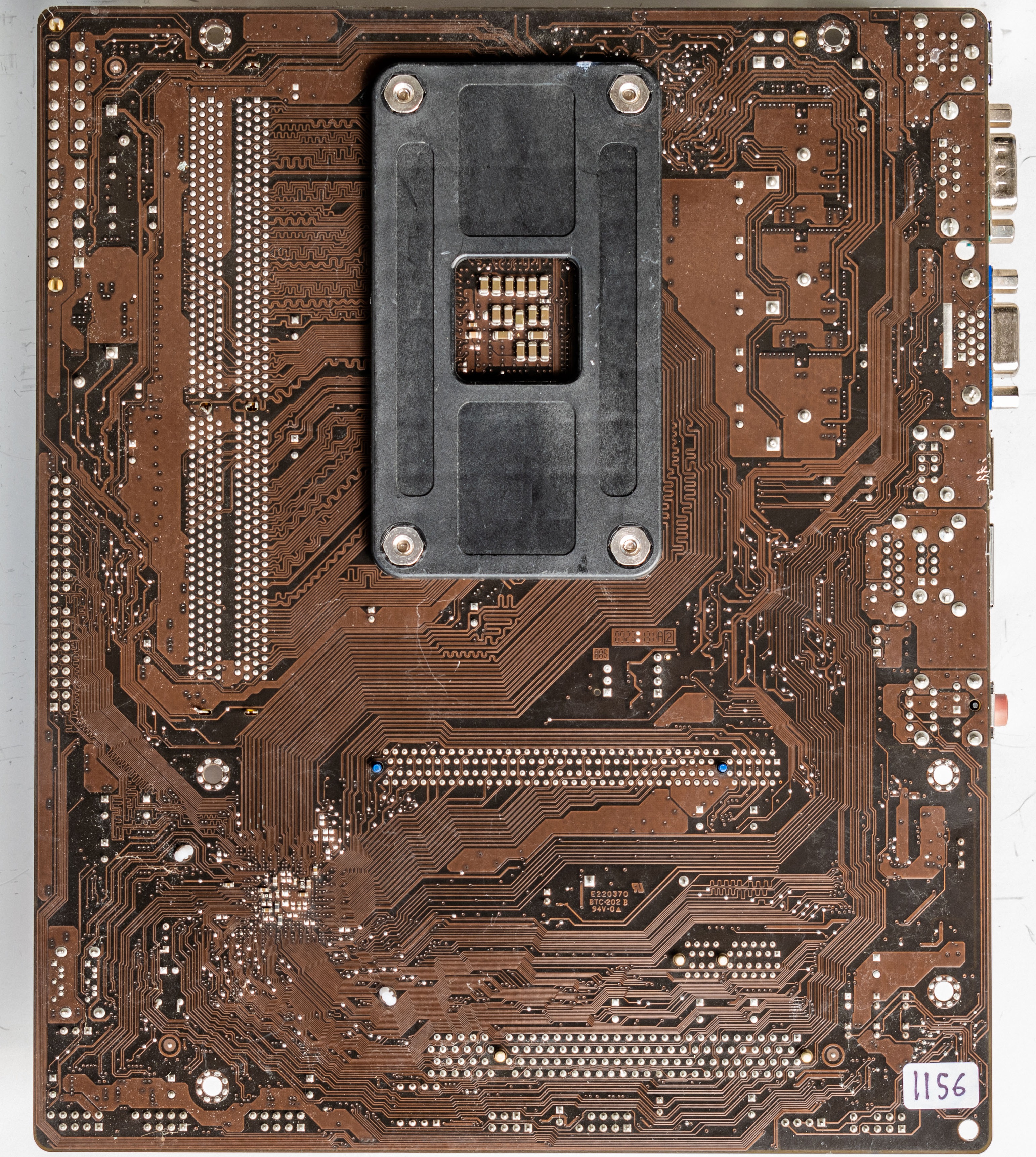

image4 Image 4 of 5 (Motherboard Continuum)

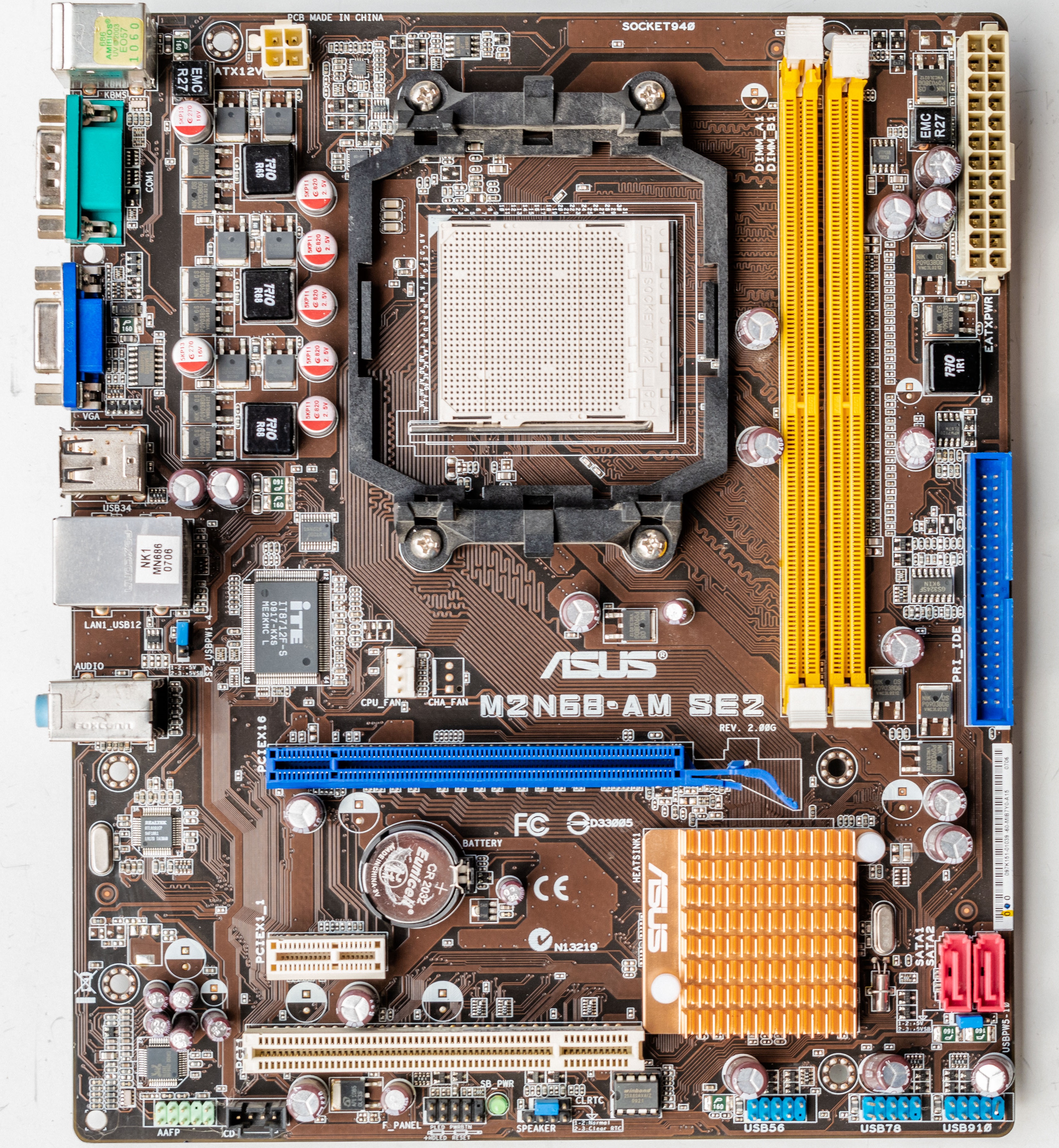

image5 Image 5 of 5 (Motherboard Continuum)
