ASUS K8N-E Deluxe
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA I
2x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes
Capacitor list
  • 6x 1500µF @6.3V
  • 17x 820µF @6.3V
  • 3x 1000µF @16v
Last updated 2024-05-31T16:39:55Z
Board info score is 9/10
bios 32 BIOS files available

vendor AMI - 32 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1207-000001-00101111-011806-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1206-000001-00101111-122205-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1202-000001-00101111-110305-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1201-000001-00101111-100605-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1104-000001-00101111-090705-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1003-000001-00101111-070105-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1002-000001-00101111-062905-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-1003-000001-00101111-070105-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0906-000001-00101111-062305-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0902-000001-00101111-050505-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0905-000001-00101111-051805-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0813-000001-00101111-041805-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0810-000001-00101111-031105-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0805-000001-00101111-022505-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0804-000001-00101111-012605-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0802-000001-00101111-011905-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0707-000001-00101111-122104-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0705-000001-00101111-112604-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0701-000001-00101111-110404-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0705-000001-00101111-112604-ATHLON64-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0608-000001-00101111-100404-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0608-000001-00101111-100404-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0502-000001-00101111-081804-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0403-000001-00101111-081304-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0401-000001-00101111-080904-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0403-000001-00101111-081304-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0309-000001-00101111-073004-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0305-000001-00101111-072604-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0303-000001-00101111-071504-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0309-000001-00101111-073004-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0202-000001-00101111-071204-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
POST string
63-0140-000001-00101111-061504-Hammer-A0055003
Note
Core version
080009
BIOS version
Logs
drv 20 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.008
OS support
Empty
Arch
x86
Size
2.2MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
1.0.65.1
OS support
Windows 7
Arch
x86 , x86-64
Size
6.9MB
Filename
Name
Version
1.3.10.0
OS support
Windows 9x
Arch
x86
Size
126.6KB
Filename
Name
Version
1.2.9.0
OS support
Windows Vista Windows XP/2k3
Arch
Size
377.5KB
Filename
Name
Version
1.3.11.0
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
Size
132.2KB
Filename
Name
Version
1.5.20.3
OS support
Windows Vista Windows XP/2k3
Arch
Size
266.7KB
Filename
Name
Version
1.5.20.3
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86
Size
216.5KB
Filename
Name
Version
1.0.20.0
OS support
Linux Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
14.6MB
Filename
Name
Version
1.08.5
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
11.4MB
Filename
Name
Version
1.0
OS support
Windows 9x
Arch
x86
Size
406.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
30.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86-64
Size
251.5KB
Filename
Version
OS support
Windows 7
Arch
x86
Size
241KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
Arch
x86
Size
44.9KB
Filename
Version
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
2004-06
File
Logs
Release date
2005-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2008-08-14
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2002-10-01
File
Logs

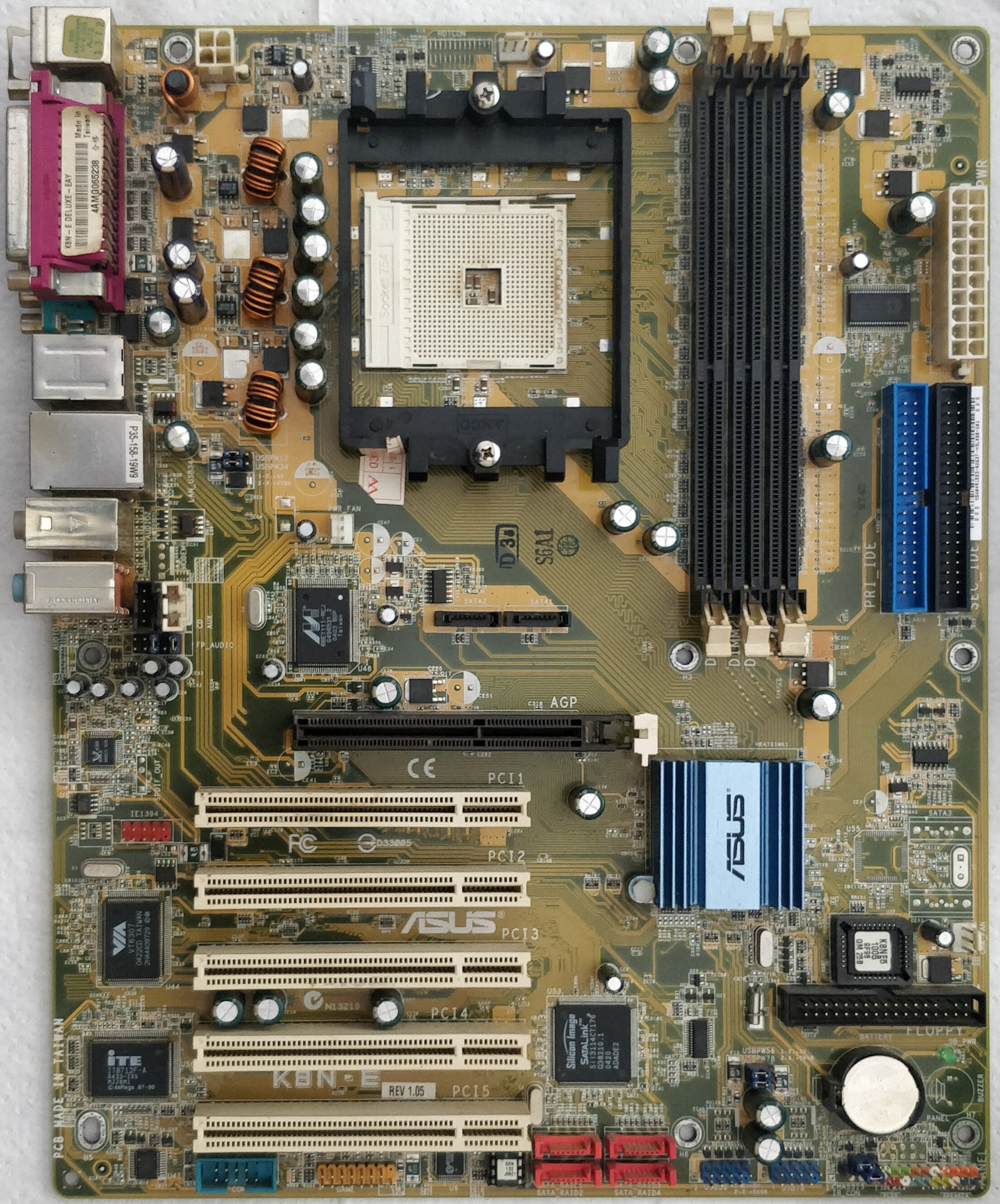

image1 Image 1 of 3 (LINUXRULZ!)

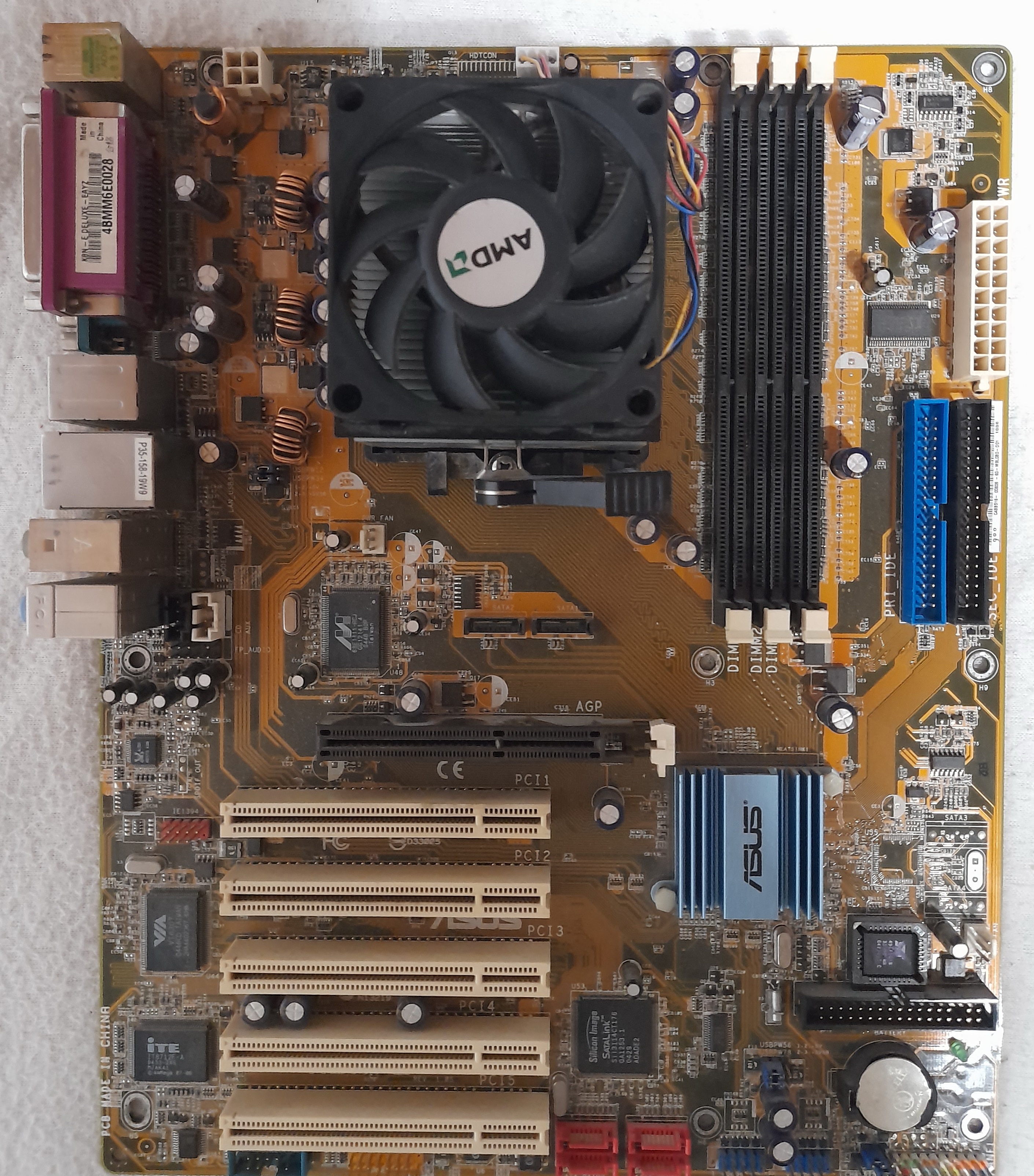

image2 Image 2 of 3 (deksor)

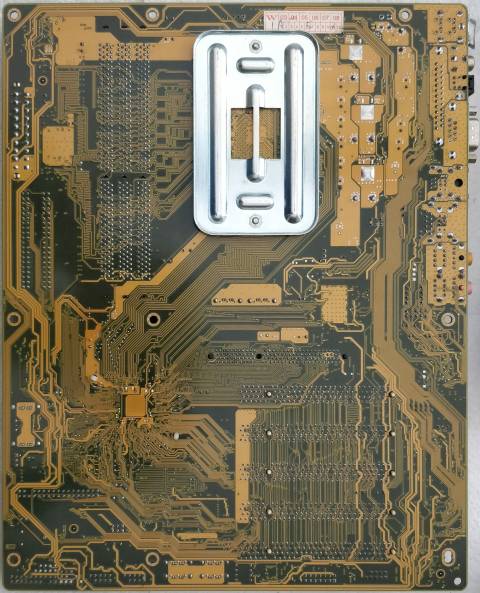

image3 Image 3 of 3 (deksor)
