ASUS A8N-E/S (Rev. 2.01G) (Targa OEM)
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
4 GB
RAM types DDR UDIMMDDR UDIMM ECC
PSU connector
Also known as
- Targa Ultra AN64II 3700 System Board

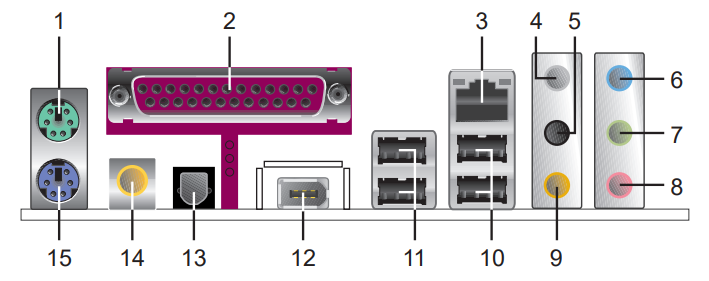

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
Expansion slots3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x4
Notes
Bioses from Asus A8N-E can be used instead of the limited OEM Bios
Last updated 2025-04-27T15:17:39Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
8 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.0
Arch
x86
OS support
Windows 2000
Windows NT 4.0
Size
1.4MB
Filename
Name
Version
1.0
Arch
x86-64
OS support
Windows 2000
Windows NT 4.0
Size
819.6KB
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
x86
OS support
Windows XP/2k3
Size
50.9MB
Filename
Version
Arch
OS support
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs

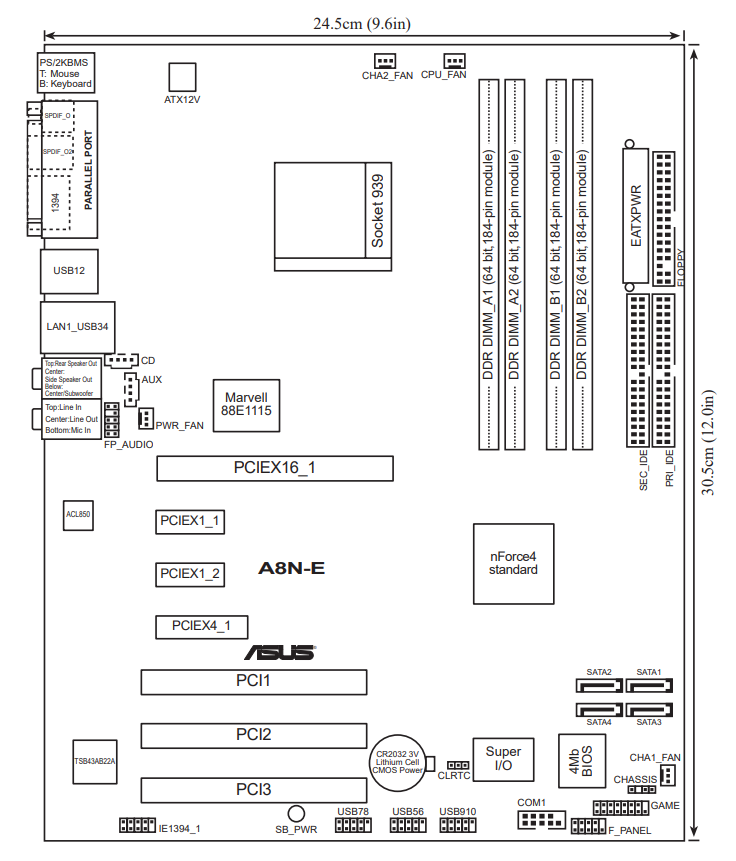

Image 1 of 3 (ASUS)

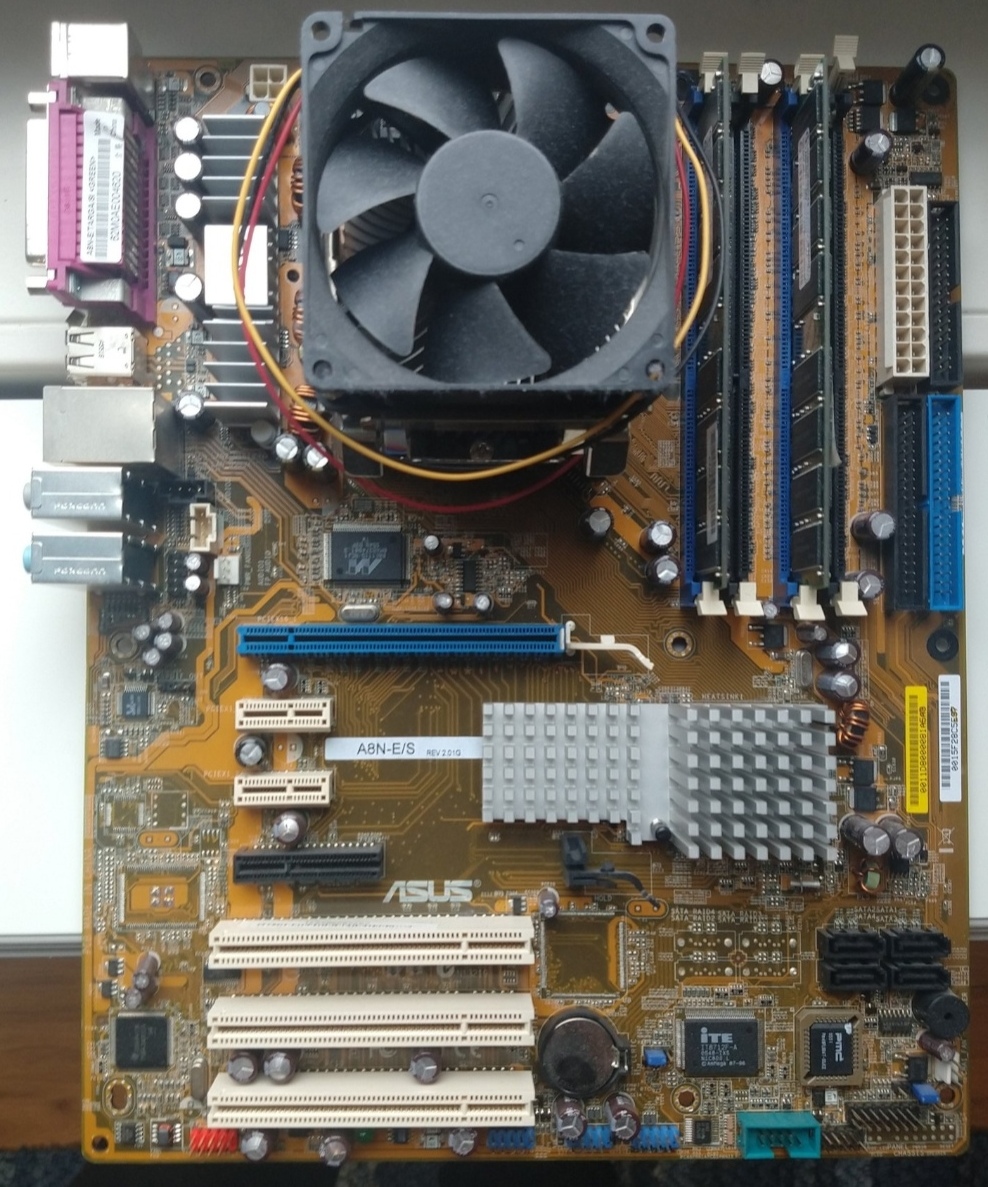

Image 2 of 3 (Ashley98)
Image 3 of 3 (ASUS)
