Portwell PB-VORTEX86-DX3
Chipset
Socket
FSB speed Empty
Form factorPC 104 (max 96 × 90 mm)
Dimensions96mm x 90mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
2GB(DDR3L-1333)
RAM type Empty
PSU connector
Empty
I/O ports1x
GPIO
1x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
SATA III
2x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
M.2 (B key)
1x
PC/104+ (PC/104-Plus)
Notes
Onboard DMP Vortex86 DX3-9126 CPU
Last updated 2025-05-30T20:53:21Z
Board info score is 6/10
Chips
-> Audio
-> Miscellaneous
-> Network
-> Processor
-> Signal transmitter/receiver
CPU family support
Empty
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2016-07
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
2017-11-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-03
File
Logs
Chip
Release date
2022-05
File
Logs
Chip
Release date
2009-12-16
File
Logs

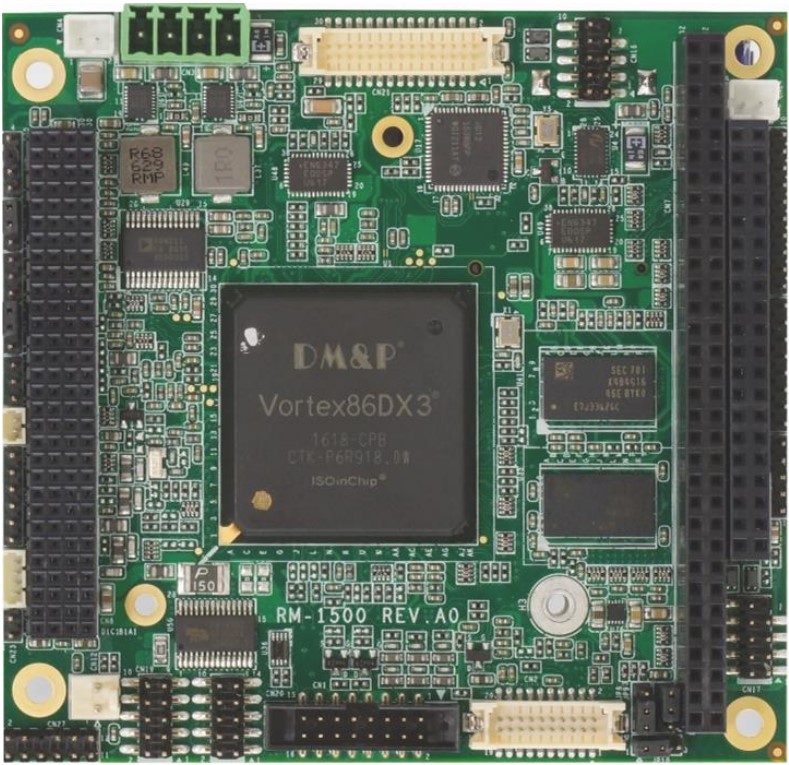

Image 1 of 2 (Portwell)

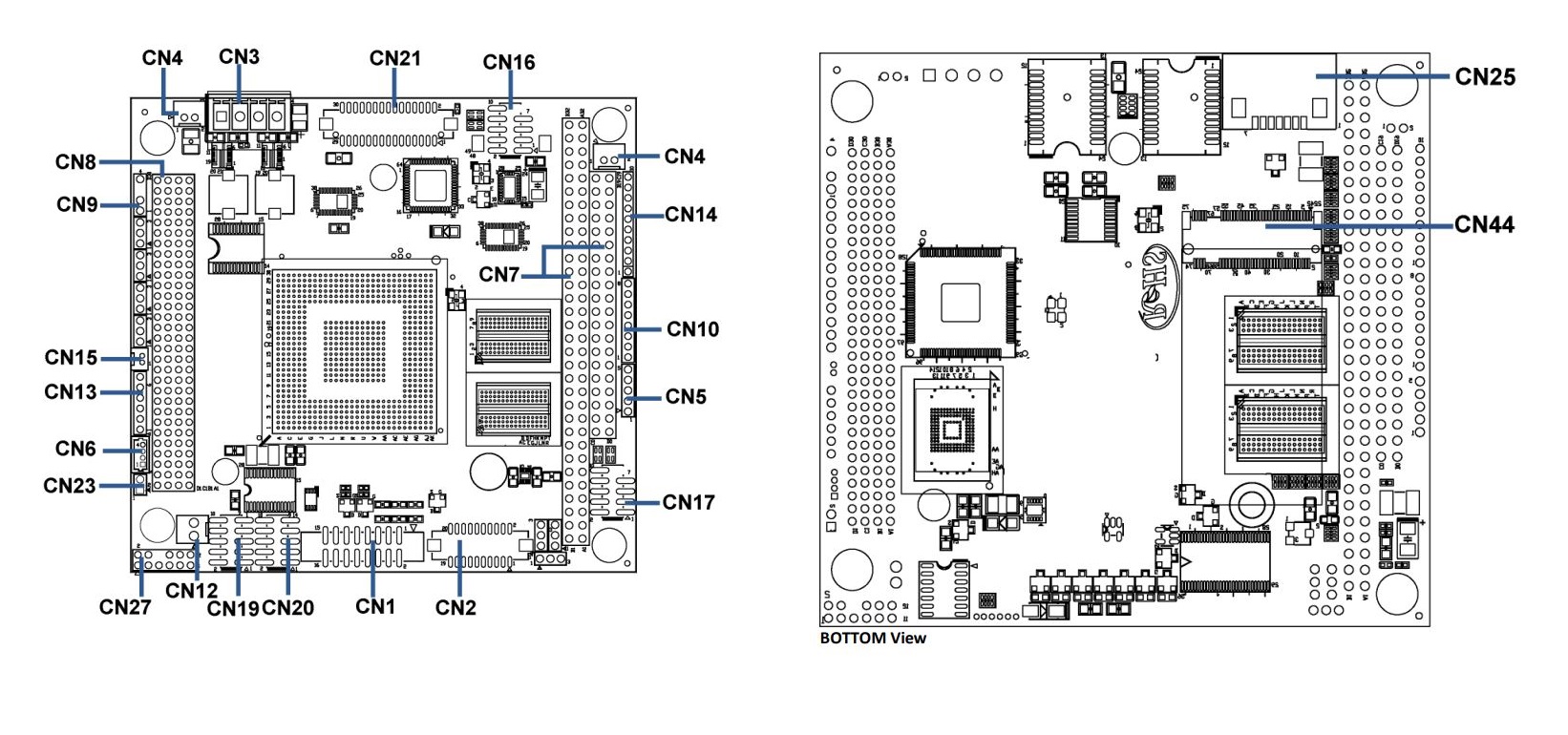

Image 2 of 2 (Portwell)
