BEC COMPUTER ENTERPRISE Precision 286-12II

Description

Chips

BIOS 3

Drivers 2

Documentation 0

Logs

Chipset

VLSI VL82CPCAT-QC (Popular AT 12 MHz 0/1 ws)

Sockets

FSB speed

12.5MHz

Form factor

Baby AT (max 220 x 330 mm)

Dimensions

330mm x 218mm

Cache

None/Integrated in the CPU

Max RAM size

4MB

RAM types

30-pin SIPPDIP-18 (1bit)DIP-20 (4bit)DIP-18 (4bit)DIP-16 (1bit)

PSU connector

AT (6-pin P8 + 6-pin P9)

I/O ports

AT Keyboard

Expansion slots

16-bit ISA

Last updated 2024-09-04T16:14:06Z

Board info score is 6.7/10

Chips

-> Chipset part

VLSI VL82C100 (PC/AT-Compatible Peripheral Controller) VLSI VL82C101 (PC/AT-Compatible System Controller) VLSI VL82C102 (PC/AT-Compatible Memory Controller) VLSI VL82C103 (PC/AT-Compatible Address Buffer) VLSI VL82C104 (PC/AT-Compatible Data Buffer)

CPU family support

0 BIOS files available

AMI - 1 entry

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

Note

Core version

BIOS version

Logs

Award - 1 entry

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

Note

Core version

BIOS version

Logs

Phoenix - 1 entry

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

Note

Core version

BIOS version

Logs

2 drivers available

No board documents available

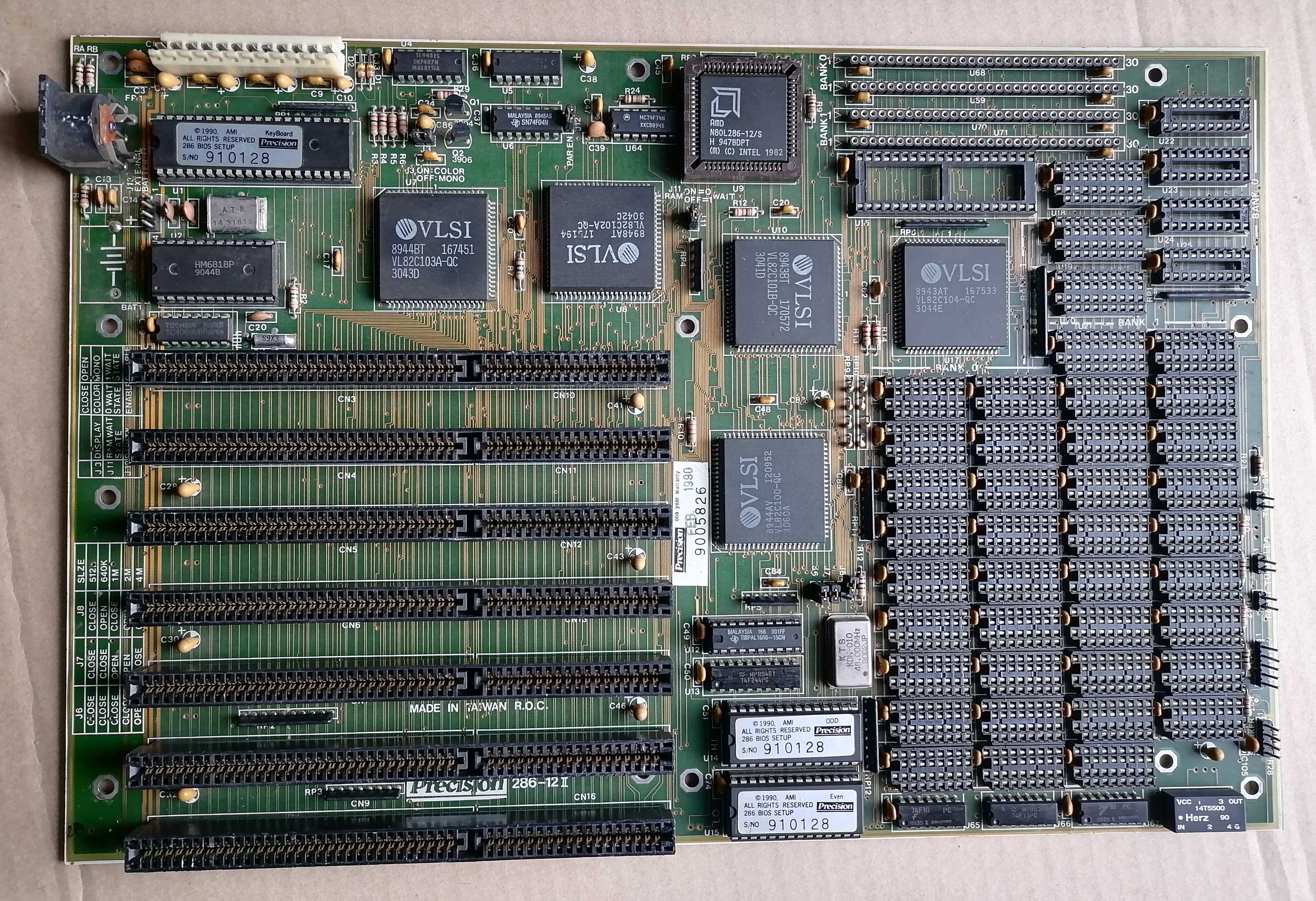

Image 1 of 1 (Alexei)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
