ACME A-77066A
Logs
chipChipset
cpuSockets
DIP40 CLCC68
speedFSB speeds
6MHz8MHz12.5MHz16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4MB
ramRAM type
DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes

Originally sold as Micromation Technology, Inc

Last updated 2025-07-27T14:28:15Z
Board info score is 7.9/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
S286-1119-011388
Note
KAI-BOARD.
Core version
01/13/88
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
Arch
Size
52.5KB
Filename
Version
OS support
MS-DOS
Arch
Size
31.9KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

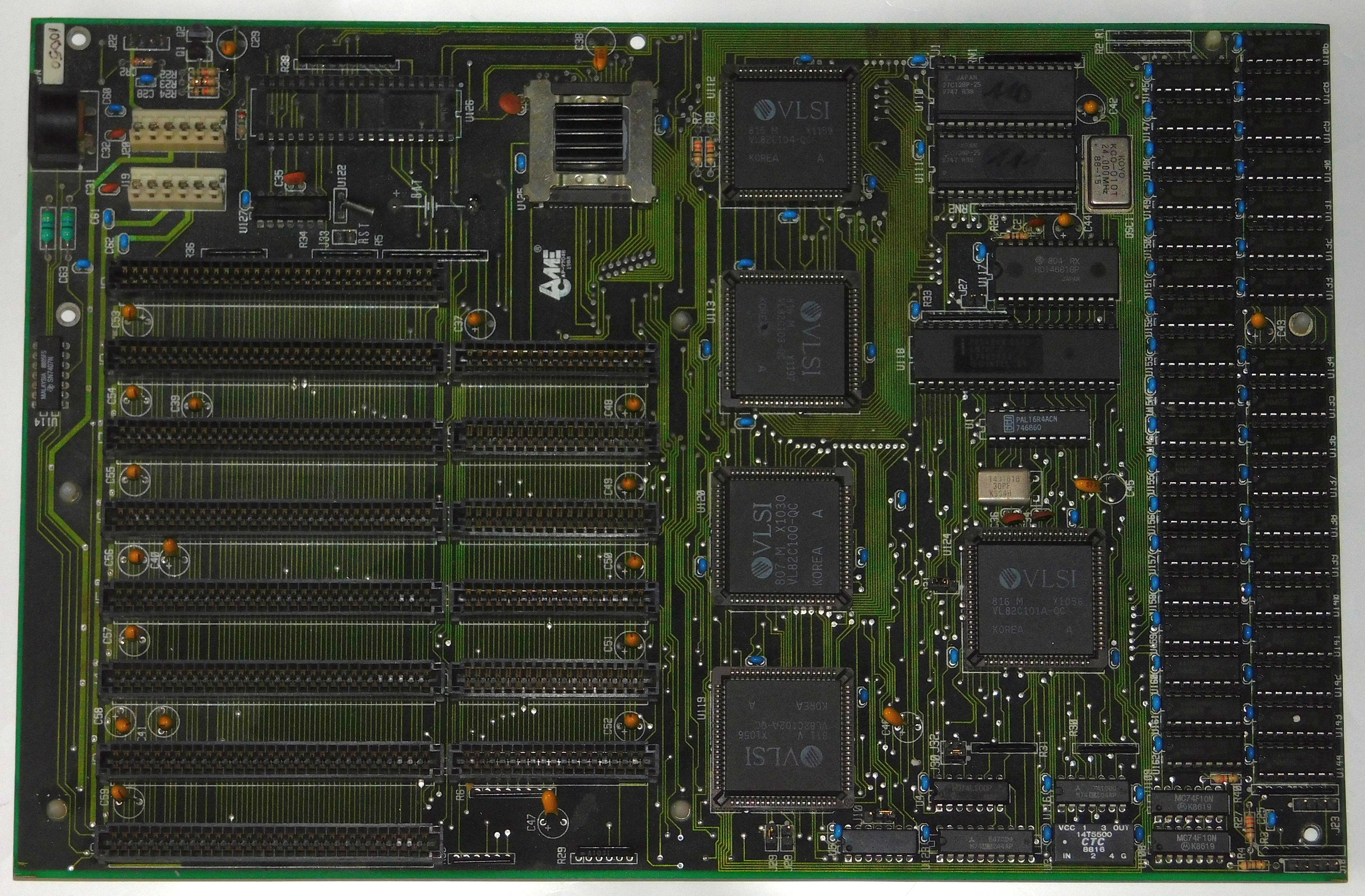

image1 Image 1 of 1 (Michael Rath)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
