WinSystems PCM-VDX-1
Logs
chipChipset
cpuSocket
BGA581
speedFSB speed
Empty
moboForm factor
PC 104 (max 96 × 90 mm)
dimDimensions
96mm x 90mm
chipCache
None/Integrated in the CPU
ramMax RAM size
256MB
ramRAM type
DDR2
pwrPSU connector
Empty
tag Also known as
connI/O ports
1x
CF Card Slot
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
Serial
4x
USB 2.0
cardExpansion slots
1x
32-bit mini-PCI
1x
PC/104
notes Notes

PCM-VDX-1-256 - 500 MHz PC/104 SBC with 256 MB RAM

PCM-VDX-1-256-F - 500 MHz PC/104 SBC with 256 MB RAM and 512MB Flash Storage

PCM-VDX-1-256-ST - 500 MHz PC/104 SBC with 256 MB RAM with 512MB Flash Storage and Stackthrough

PCM-VDX-1-256-F-ST - 500 MHz PC/104 SBC with 256 MB RAM with Stackthrough

Last updated 2025-05-28T14:51:11Z
Board info score is 7/10
chip Chips
-> Processor
DM&P (DMP) Vortex86DX
cpufam CPU family support
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0.01.0205
OS support
Windows 2000
Arch
x86
Size
44.1KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12-16
File
Logs
Chip
Release date
2019-04-24
File
Logs
Chip
Release date
2019-08-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-12-06
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-12-16
File
Logs
Family
Release date
File
Logs
doc 1 other file available
Title
File
Logs
Title
Mechanical Drawings
File
Logs

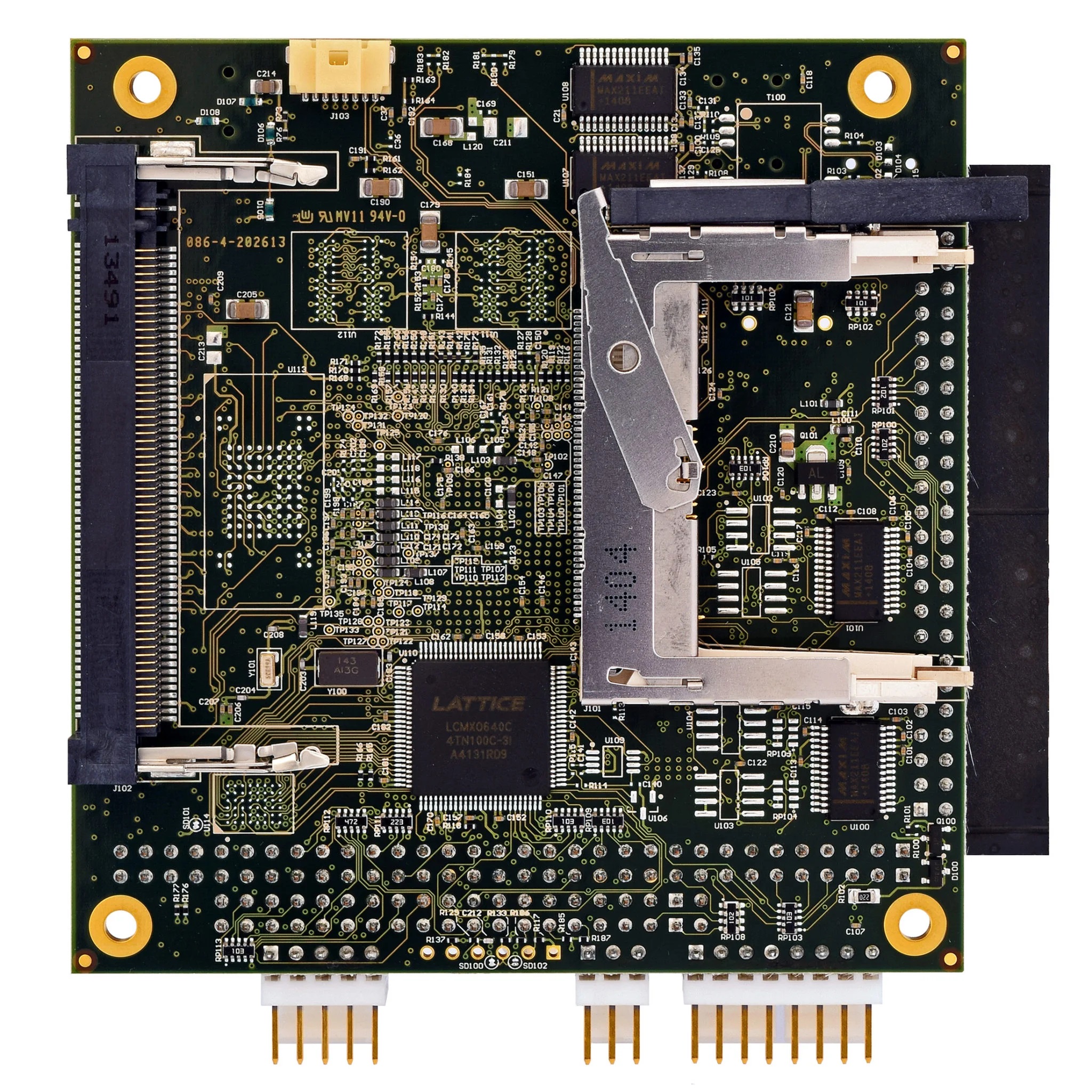

image1 Image 1 of 2 (WinSystems)

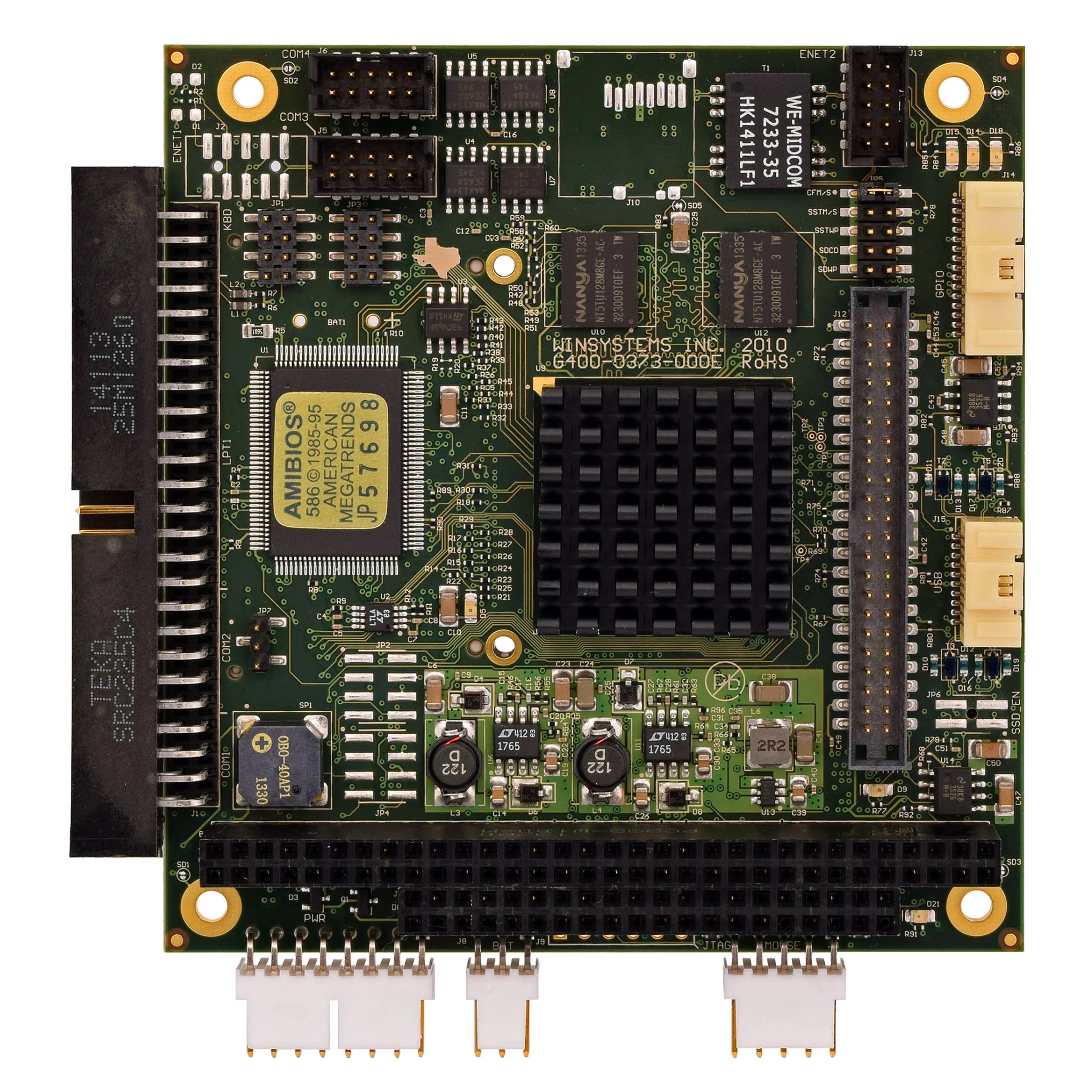

image2 Image 2 of 2 (WinSystems)
