Viglen 386SX-20/25TAP
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
16MHz20MHz25MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
512KB
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Unknown 11010
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
5x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-07-30T17:50:11Z
Board info score is 6.7/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
r02
OS support
MS-DOS
Arch
Size
6.4KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-03-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

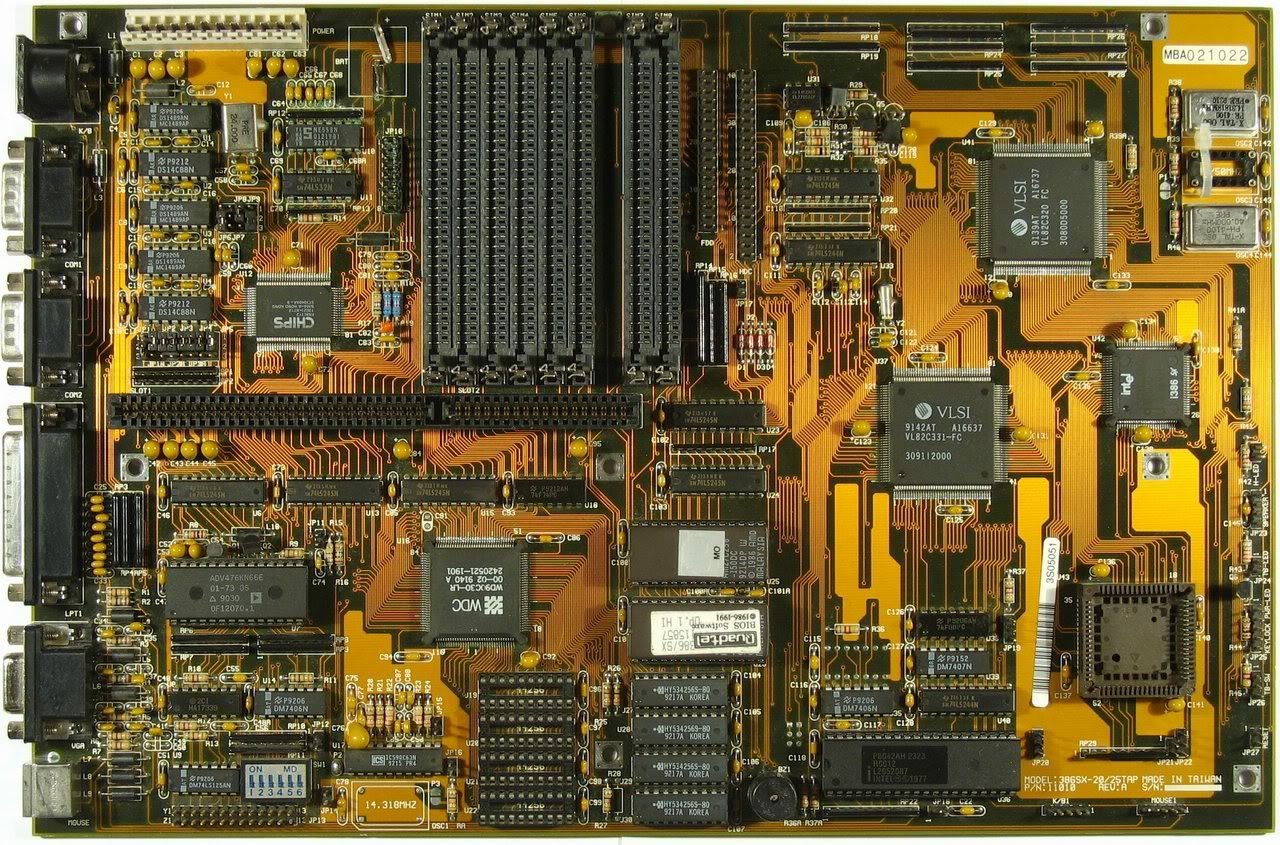

image1 Image 1 of 1 (old_pc_parts)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
