Universal Scientific Ind. (USI) Pro-162
Chipset
Socket
FSB speeds 50MHz60MHz66MHz75MHz
Form factorMini LPX (max 229 x 279 mm)
Dimensions228 x 250 mm
Max VRAM size4MB
Cache
256KB512KB
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
2x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
Onboard video can be any of the 4 options listed in the "Chips" section
Gameport is optional
Last updated 2025-06-24T19:55:16Z
Board info score is 7/10
Chips
-> Chipset part
-> Super I/O
-> Video
CPU family support
0 BIOS files available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
1.70.04
OS support
Windows 3.1x
Arch
x86
Size
606.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
4.10.01.2122-3.42.02
OS support
Windows 9x
Arch
Size
266.7KB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
Size
Empty
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
1996-05
File
Logs

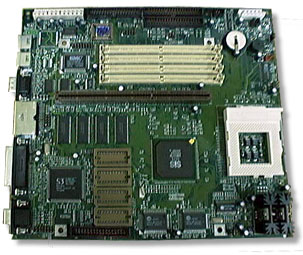

Image 1 of 1
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
