RadiSys Base-G
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
NLX (max 229 x 345 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
256KB
ramMax RAM size
512MB
ramRAM types
168-pin EDO UDIMM168-pin FPM DIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

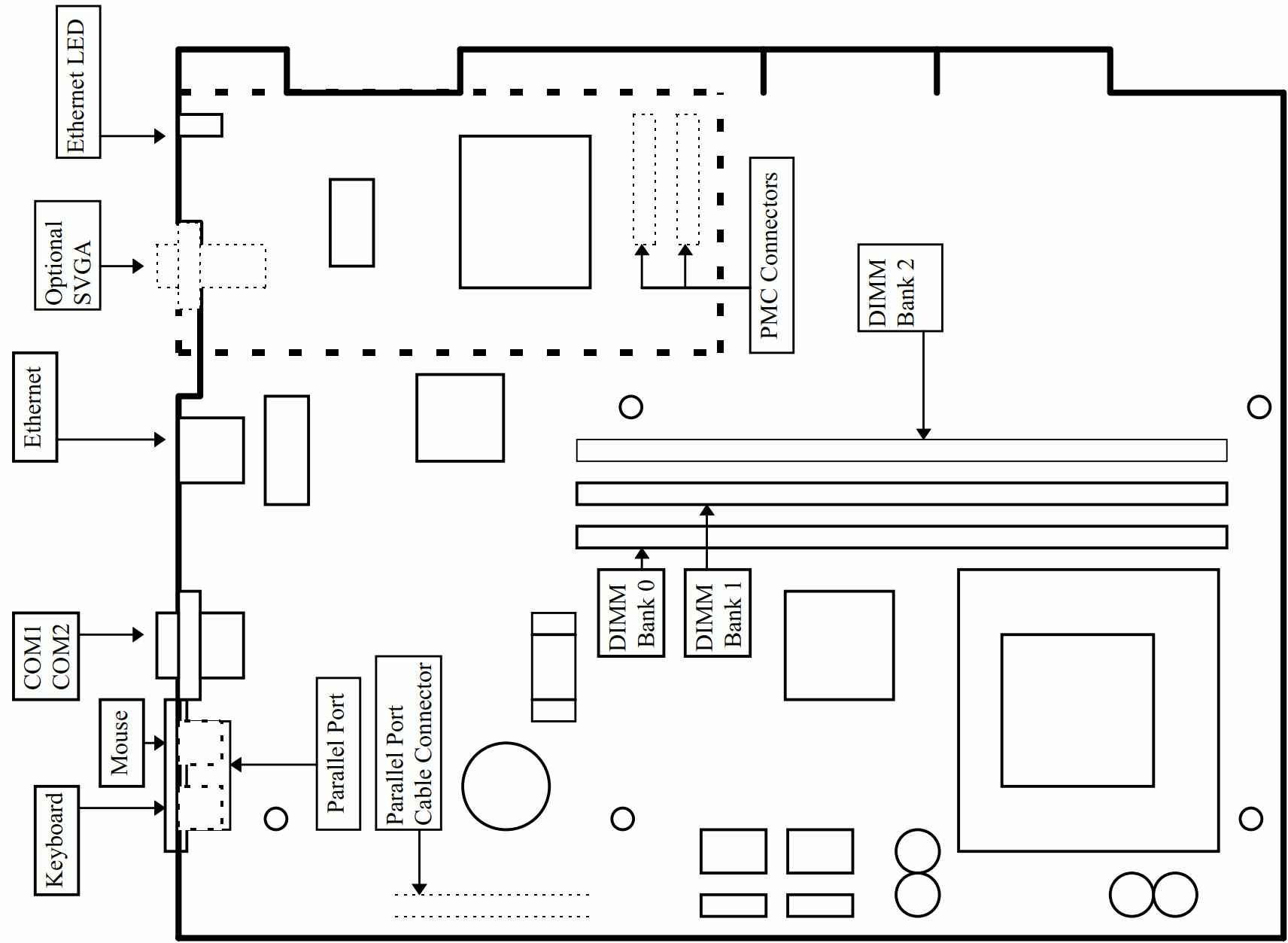

Board has 2 PMC connectors which can be used for the SVGA board.

Last updated 2025-07-24T17:46:49Z
Board info score is 6.6/10
bios 0 BIOS files available
drv 12 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.62
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x
Arch
Size
130KB
Filename
Name
Version
5.05
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
Size
538.2KB
Filename
Name
Version
2.61
OS support
MS-DOS
Arch
x86
Size
38KB
Filename
Name
Version
3.11
OS support
NetWare Server 3 NetWare Server 4 Netware Client32
Arch
x86
Size
390.9KB
Filename
Name
Version
4.2.2
OS support
UnixWare
Arch
Size
182.6KB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-11
File
Logs
Chip
Release date
1997-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-11
File
Logs
image1 Image 1 of 1 (evasive)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
