Philips P3102
Chipset
Socket
FSB speed 8MHz
Form factorOEM / Proprietary
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
512KB
RAM type DIP-16 (1bit)
PSU connector
Also known as
- Philips 5107 200 26572
I/O ports1x
Floppy interface
1x
MDA
1x
Parallel
1x
Serial
1x
XT Keyboard
Expansion slots5x
8-bit ISA
Last updated 2025-06-20T12:51:18Z
Board info score is 8.5/10
Chips
-> Chipset part
Intel 8253 (Programmable Interval Timer)
Intel 8255A (PPI)
Intel 8284A (Clock Generator and Driver)
Intel 8288 (Bus Controller)
(multiple brand) Discrete Logic
Intel 8237A (DMA Controller)
Intel 8259A (Programmable Interrupt Ctrl.)
-> Floppy ctrl.
-> Signal transmitter/receiver
-> UART ctrl.
-> Video
1 BIOS file available
Philips - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-15
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
1997-06-13
File
Logs
Chip
Release date
File
Logs
1 other file available
Title
File
Logs

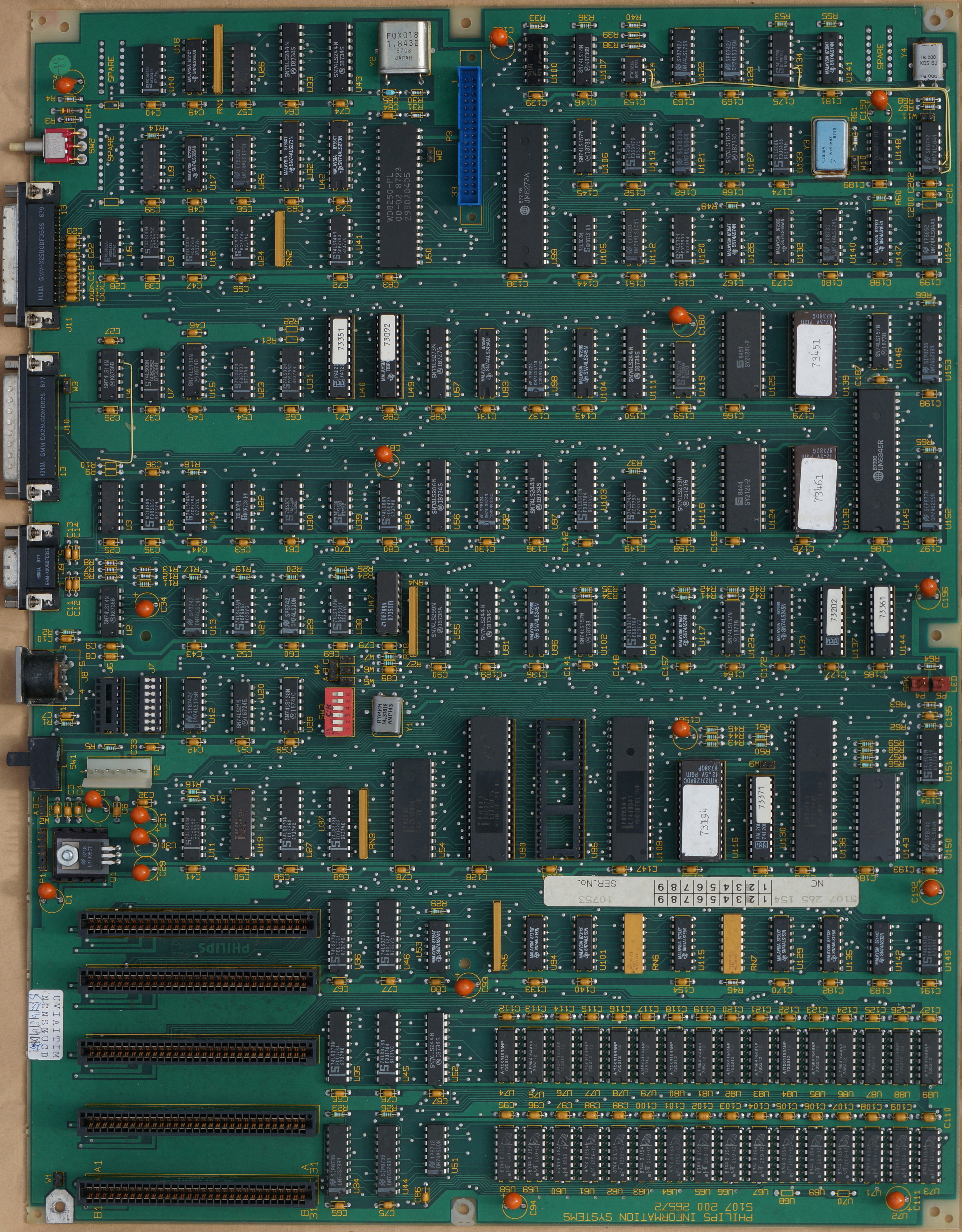

Image 1 of 2 (nlugic)

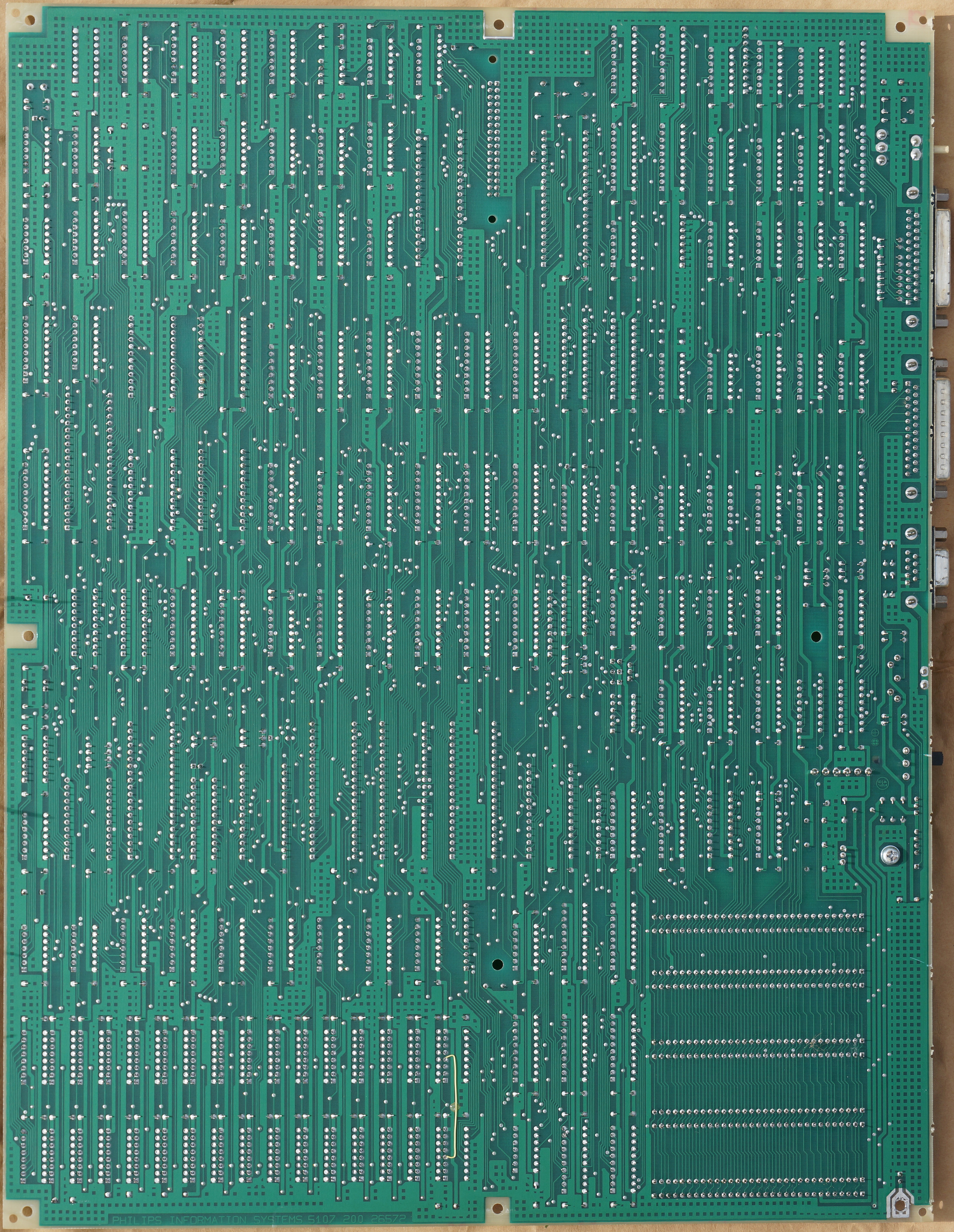

Image 2 of 2 (nlugic)
