MSI MS-6380E U2
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 235mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 2.0
cardExpansion slots
5x
32-bit PCI
1x
CNR
1x
Universal AGP
Last updated 2025-08-03T09:41:20Z
Board info score is 9.8/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0224-009999-00101111-040201-VIA_K7-1AARK204
Note
A6380VMS V5.7 022403
Core version
070010
BIOS version
Logs
POST string
62-0911-009999-00101111-040201-VIA_K7-1AARK204
Note
A6380VMS V5.6 091102
Core version
070010
BIOS version
Logs
POST string
62-0710-009999-00101111-040201-VIA_K7-1AARK204
Note
A6380VMS V5.5 071002
Core version
070010
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 6 (evasive)
image2 Image 2 of 6 (Motherboard Continuum)
image3 Image 3 of 6 (VooDooMan)
image4 Image 4 of 6 (Motherboard Continuum)
image5 Image 5 of 6 (VooDooMan)

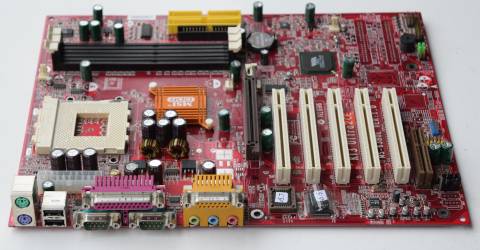

image6 Image 6 of 6 (Motherboard Continuum)
