VIA VT8235
Logs
dateType
Chipset part
actActions
See all boards with this chip
tag Also known as
doc 2 chip documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
notes Notes

The VIA VT8235 South Bridge features a complete suite of networking and communication features including support for 6 USB 2.0 ports for peripheral connectivity 40 times faster than USB 1.1, and ATA-133 support, the fastest IDE interface available. Additional features include integrated into the South Bridge include VIA MAC for 10/100Mbps Ethernet, integrated PCI support, 6 Channel Surround Sound with VIA Vinyl Six-TRAC AC’97 audio and MC’97 modem.

Key features:

  • 8X V-Link 533MB/s high bandwidth North/South Bridge interconnect
  • Support for Advanced Communications Riser (ACR) Card Standard
  • Integrated 6 channel Surround Sound AC-97 Audio
  • Integrated MC-97 Modem
  • Integrated 10/100 Ethernet MAC
  • Support for ATA 33/66/100/133
  • Support for USB 2.0, 6 USB ports, UHCI compliant
  • Advanced power management capabilities including ACPI/OnNow
  • 487-pin BGA package
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Last updated 2025-10-01T09:52:37Z

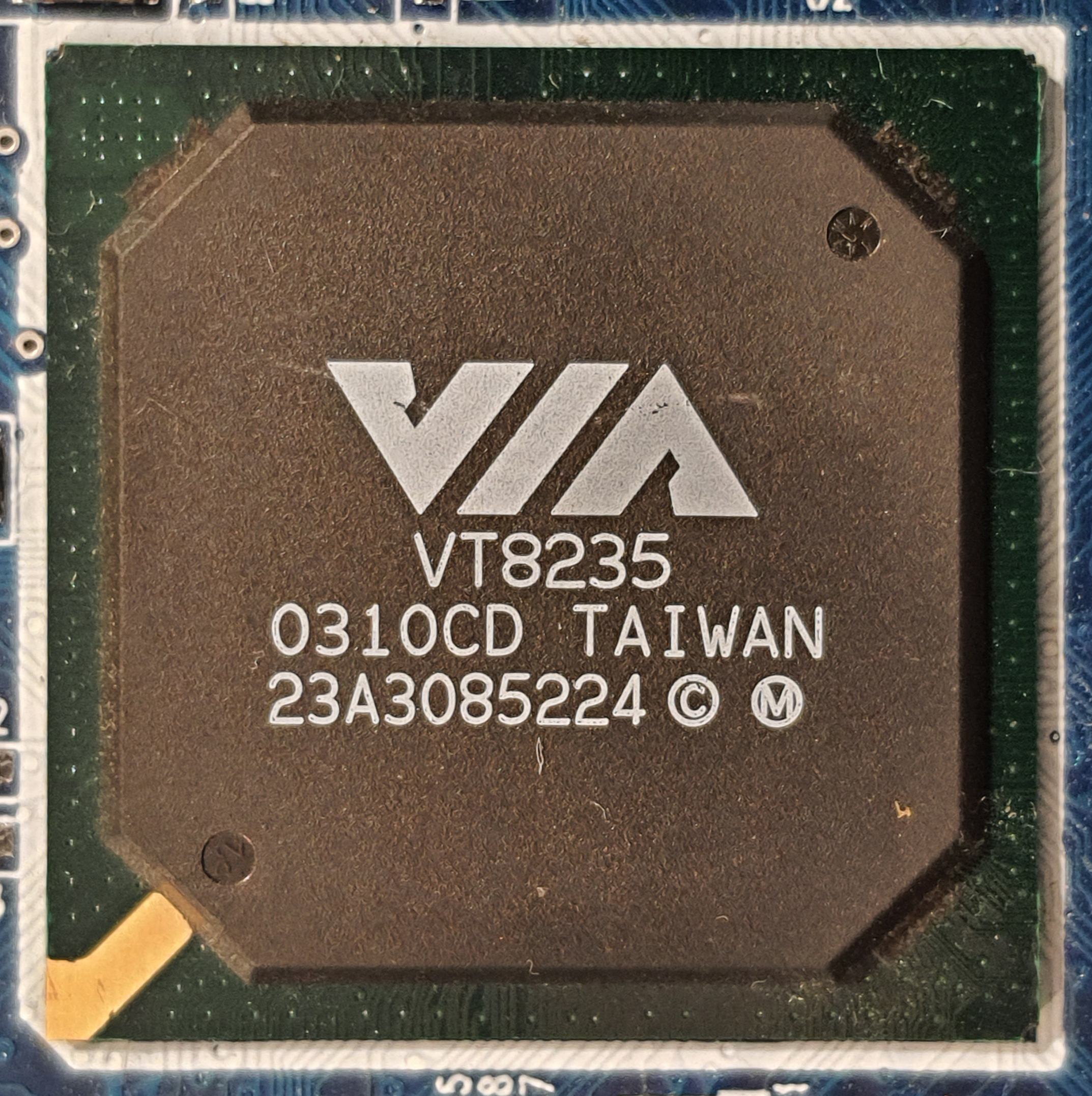

image1 Image 1 of 4 (maciej9783)

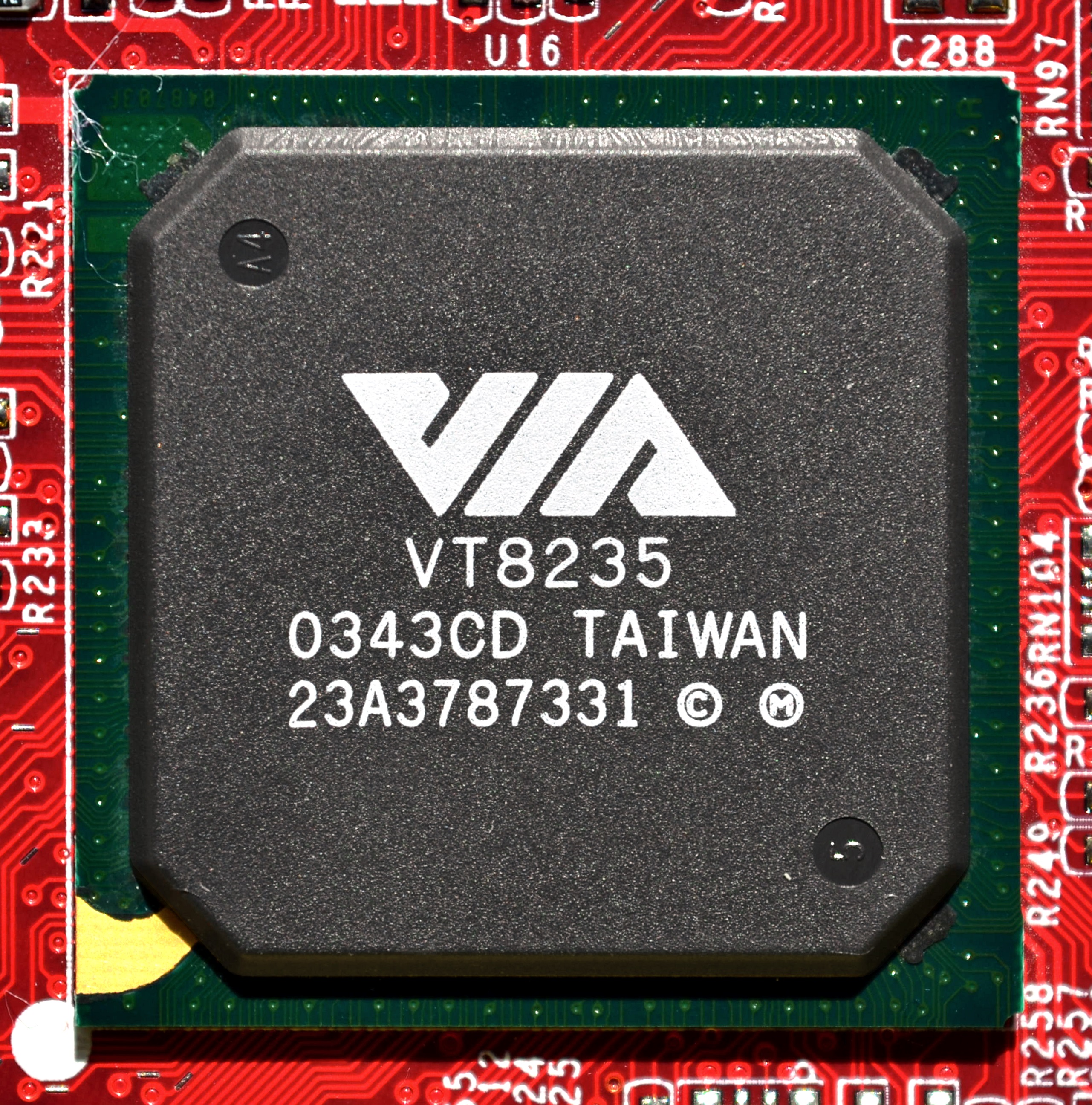

image2 Image 2 of 4 (Trio3D)
image3 Image 3 of 4 (computerguy096)

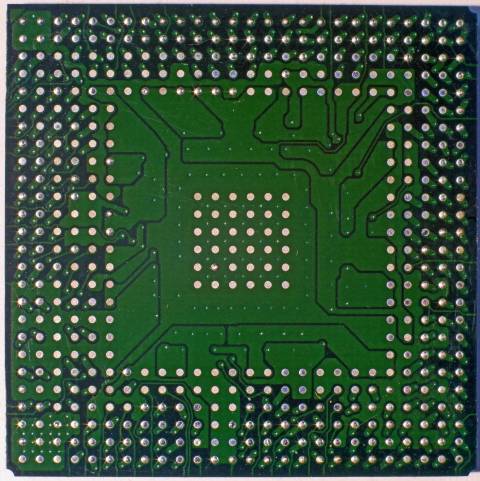

image4 Image 4 of 4 (maciej9783)
