MCST MBE2S-PC (Ver. 4)
Logs
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
24GB
RAM type DDR3 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
CF Card Slot
1x
DVI
1x
GPIO
1x
RJ-45 LAN
3x
SATA III
2x
Serial
6x
USB 2.0
1x
mSATA
Expansion slots2x
32-bit PCI
1x
PCIe x16 @ x8
Notes
- ТВГИ.469555.300 - Elbrus-4C 800Mhz
- ТВГИ.469555.300-01 - Elbrus-4C 750Mhz
Last updated 2025-11-23T15:36:56Z
Board info score is 7.5/10
Chips
-> Chipset part
-> Audio
-> Video
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Arch
x86
Size
3.6MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

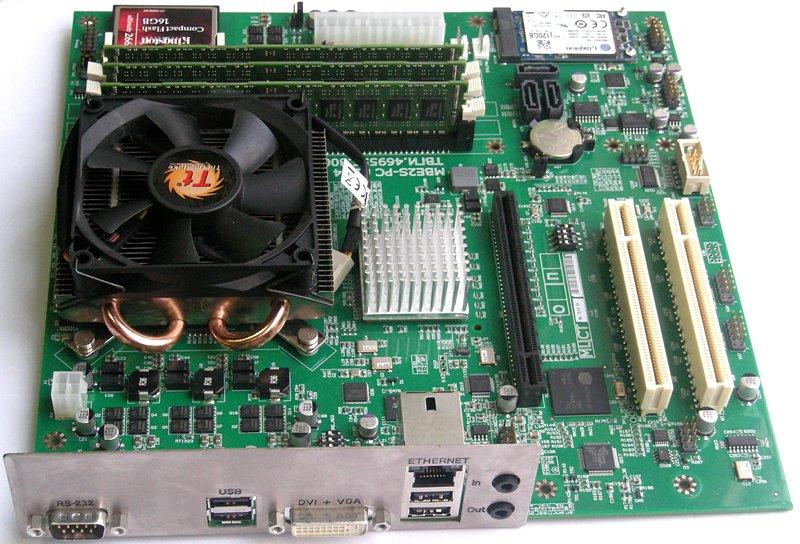

Image 1 of 2 (MCST)
Image 2 of 2 (MCST)
