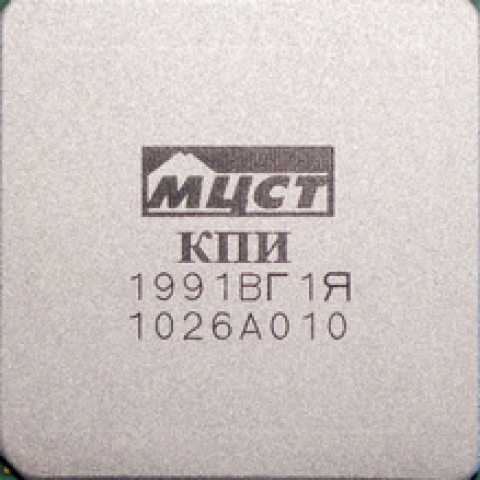

• MCST 1991ВГ1Я (1991VG1Y)
• MCST ТВГИ.431291.001

The KPI is compatible with the Elbrus-4C, Elbrus-2CM, Elbrus-2C+ and R1000 processors

MCST KPI Specifications

• LVDS controller for communication with the processor (full duplex, up to 2 Gb/s);
• PCI-Express 1.0a x 8 bus;
• PCI 2.3 bus (32/64 bits, 33/66 MHz);
• Gigabit Ethernet network controller (1 Gbps);
• USB 2.0 (2 channels);
• SATA 2.0 (4 devices);
• IDE (2 devices);
• AC-97 audio controller;
• RS-232 serial interface (2 channels);
• IEEE-1284 parallel interface;
• SPI and I2C serial interfaces;
• GPIO (16 signals, in a standard configuration 8 are available to the user);
• timers;
• interrupt controller.
