Kompan/Infinity (КОМПАН) Extra Plus 286
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
12MHz16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
256KB
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Bus Mouse
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Empty 27256 socket is for Video BIOS; would contain Cyrillic font ROM

Last updated 2025-06-24T18:52:46Z
Board info score is 8.3/10
bios 1 BIOS file available

vendor Kompan/Infinity (КОМПАН) - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
(C)1990 KOMPAN INFINITY USSR/USA286-EP BIOS (C) KOMPAN INFINITY Group
Note
Core version
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.2.0
OS support
MS-DOS
Arch
Size
40KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1992-03-13
File
Logs
Chip
Release date
1987-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1986-11
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Chip
Release date
1988-10
File
Logs
Chip
Release date
File
Logs

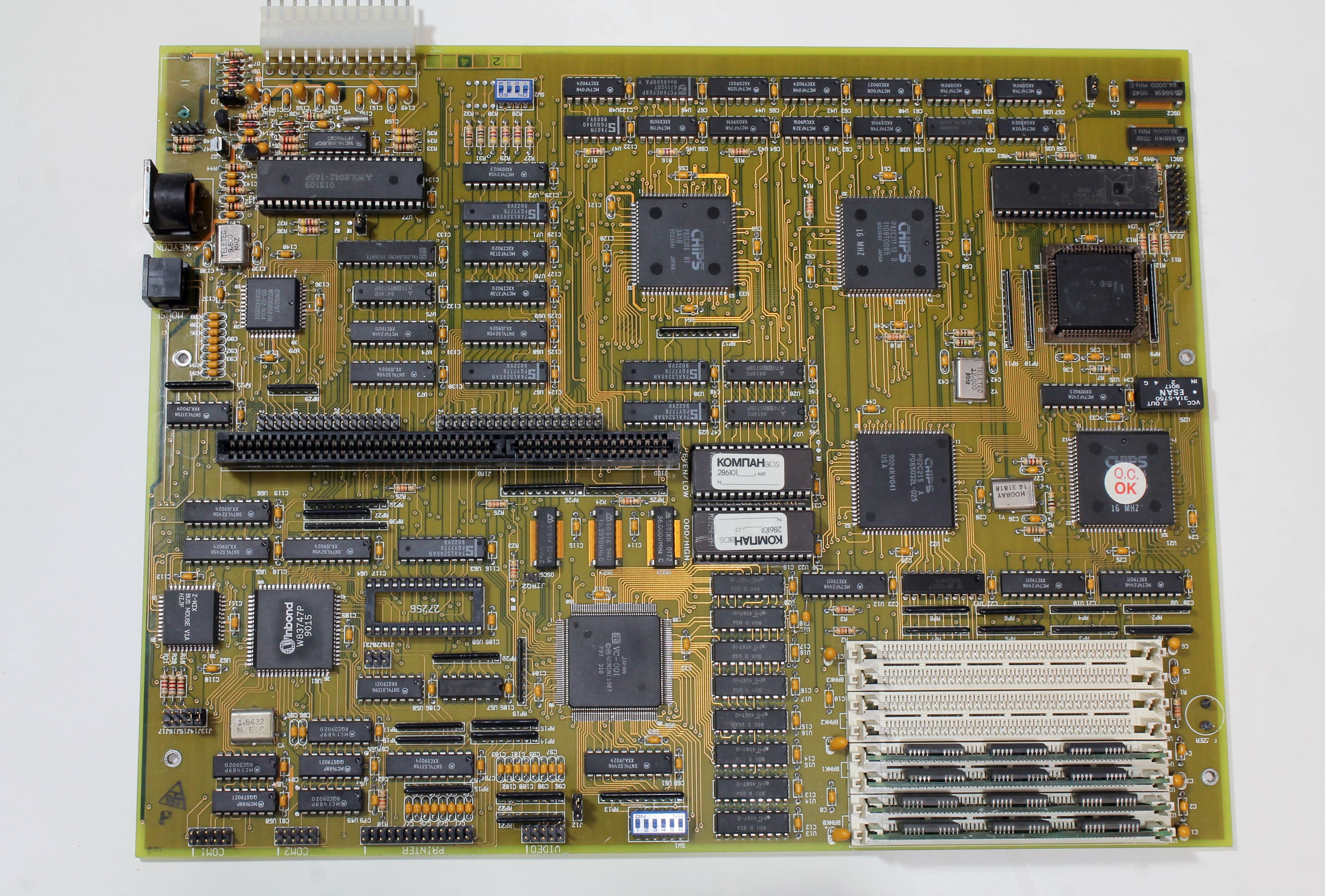

image1 Image 1 of 2 (Andrew Freeman)

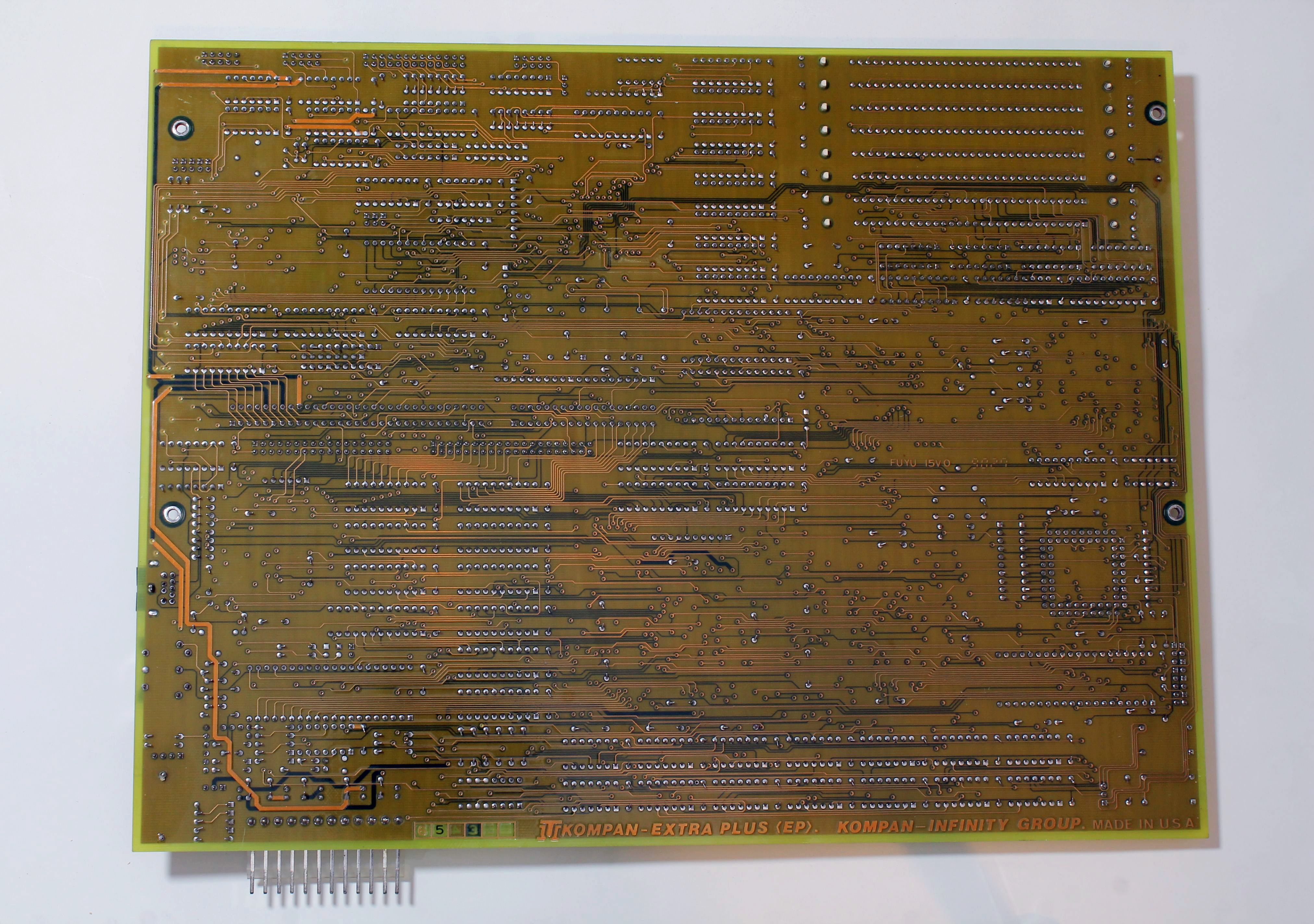

image2 Image 2 of 2 (Andrew Freeman)
