Intel D845GERG2 (Rexburg 2)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
234mm x 208mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI
1x
CNR
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

Last updated 2025-06-18T10:01:07Z
Board info score is 9.2/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
RG84510A.86A.0033.P17.0307141128
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0031.P16.0304111002
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0028.P15.0302260937
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0024.P13.0301161334
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0022.P12.0211151511
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0019.P11.0210211745
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0017.P09.0209092000
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0014.P07.0208231211
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0013.P06.0207251322
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0009.P04.0206051327
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0008.P03.0205171910
Note
Core version
Intel
BIOS version
Logs
POST string
RG84510A.86A.0007.P02.0205021701
Note
Core version
Intel
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.10.3.4342
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.5.1.6
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
4.1
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
2.11.15
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
Empty
Filename
Version
OS support
Windows NT 4.0
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003
File
Logs
Chip
Release date
2006
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

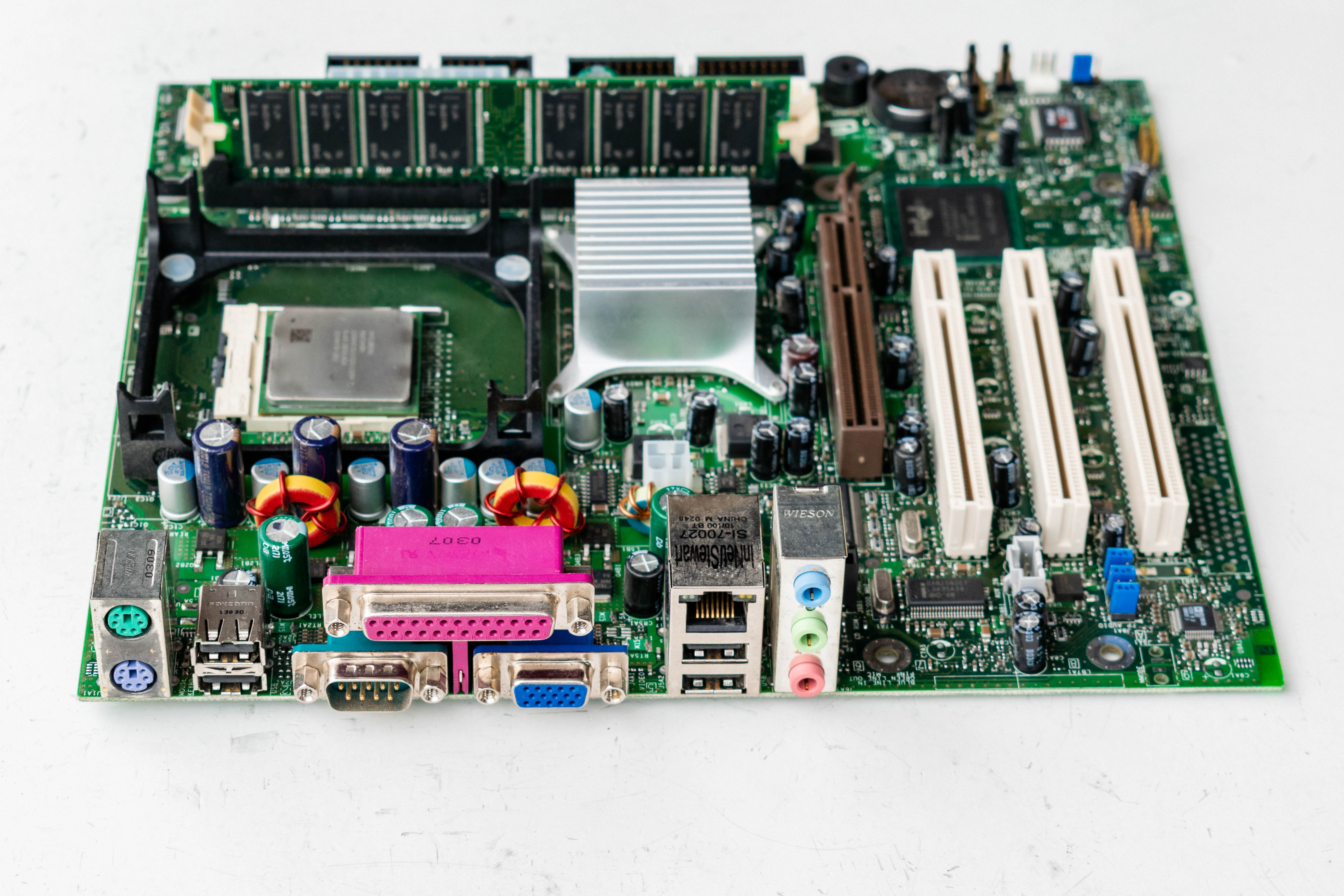

image1 Image 1 of 6 (evasive)

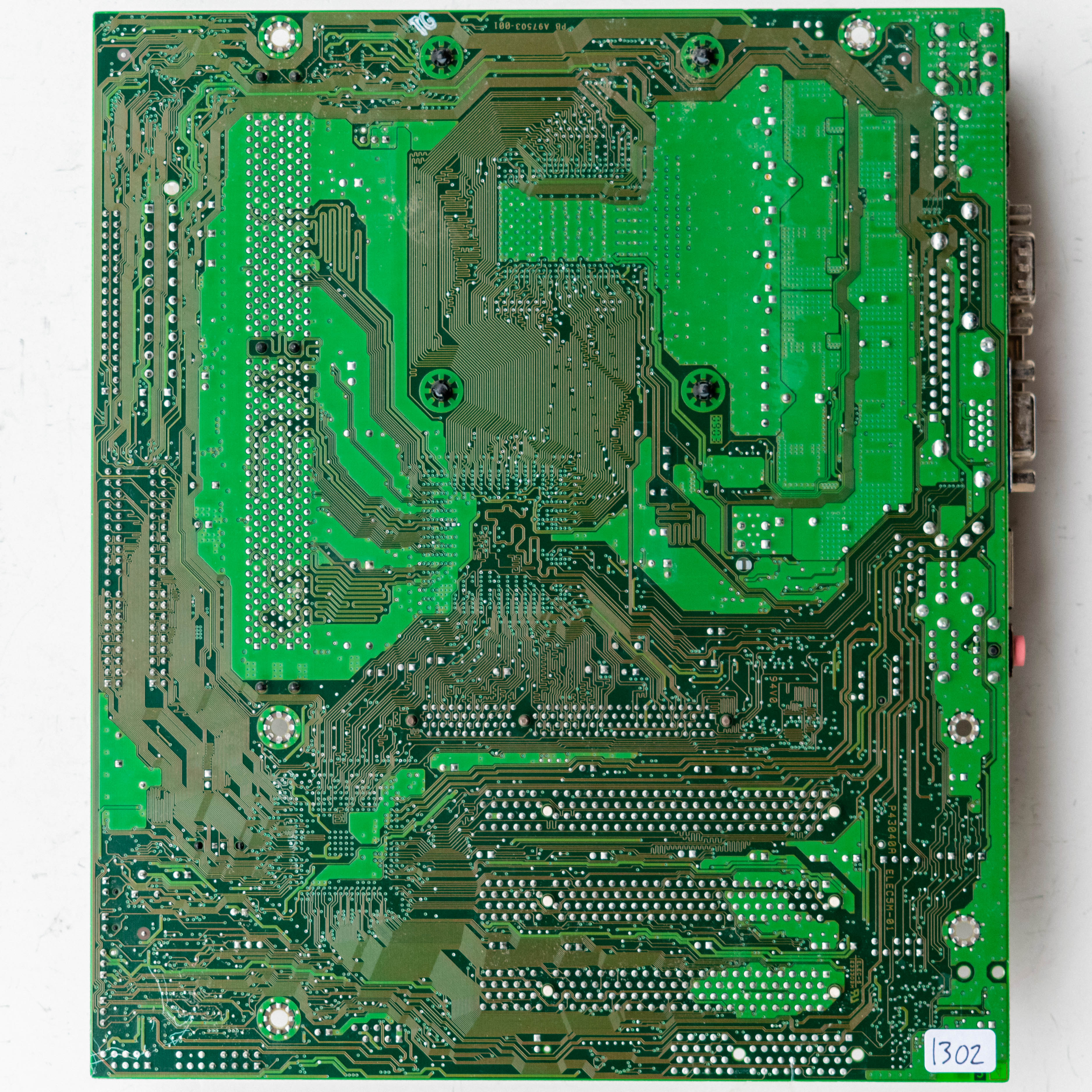

image2 Image 2 of 6 (BreakPoint)

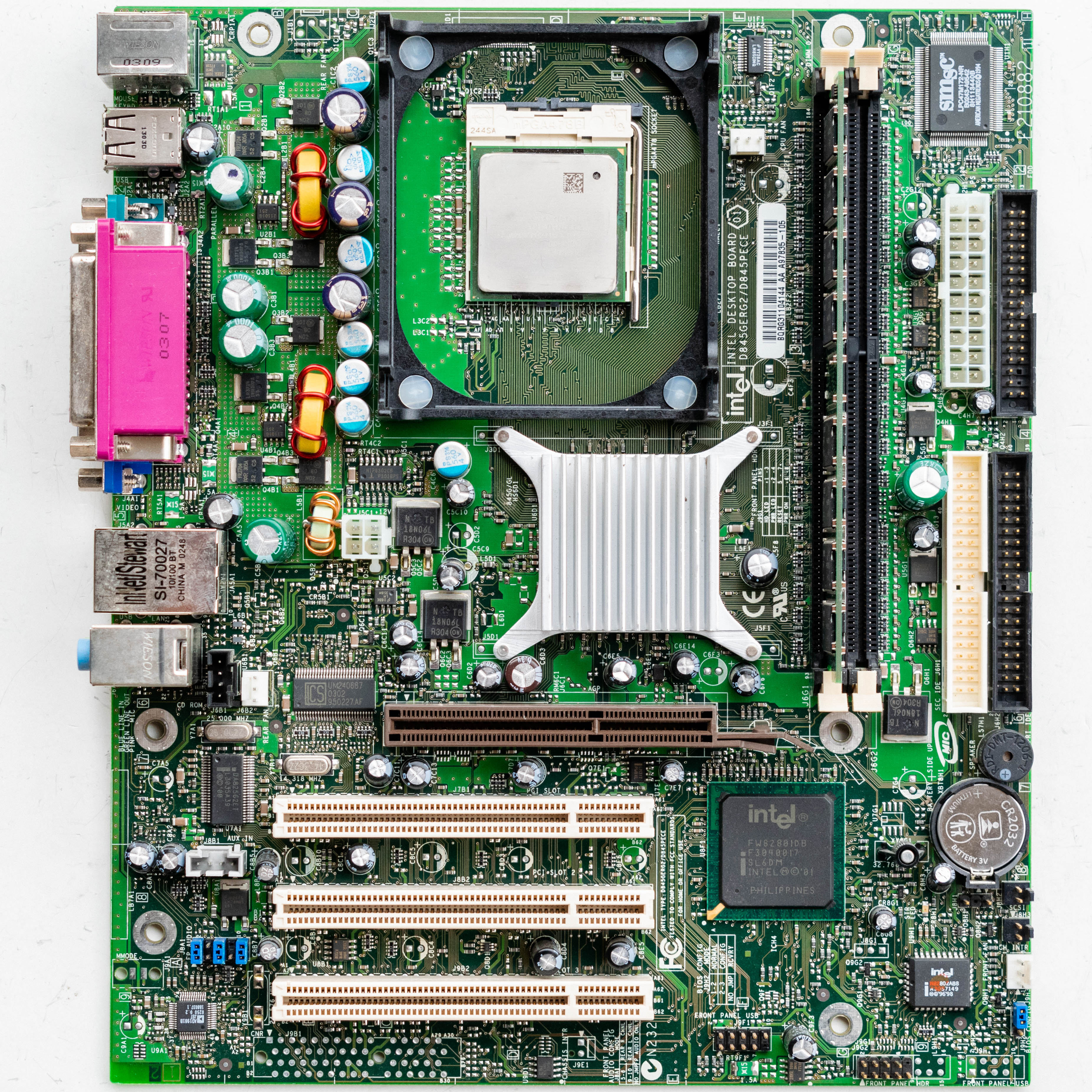

image3 Image 3 of 6 (Motherboard Continuum)

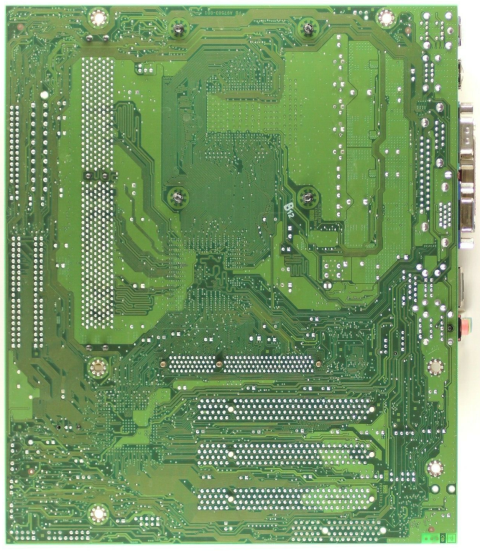

image4 Image 4 of 6 (BreakPoint)

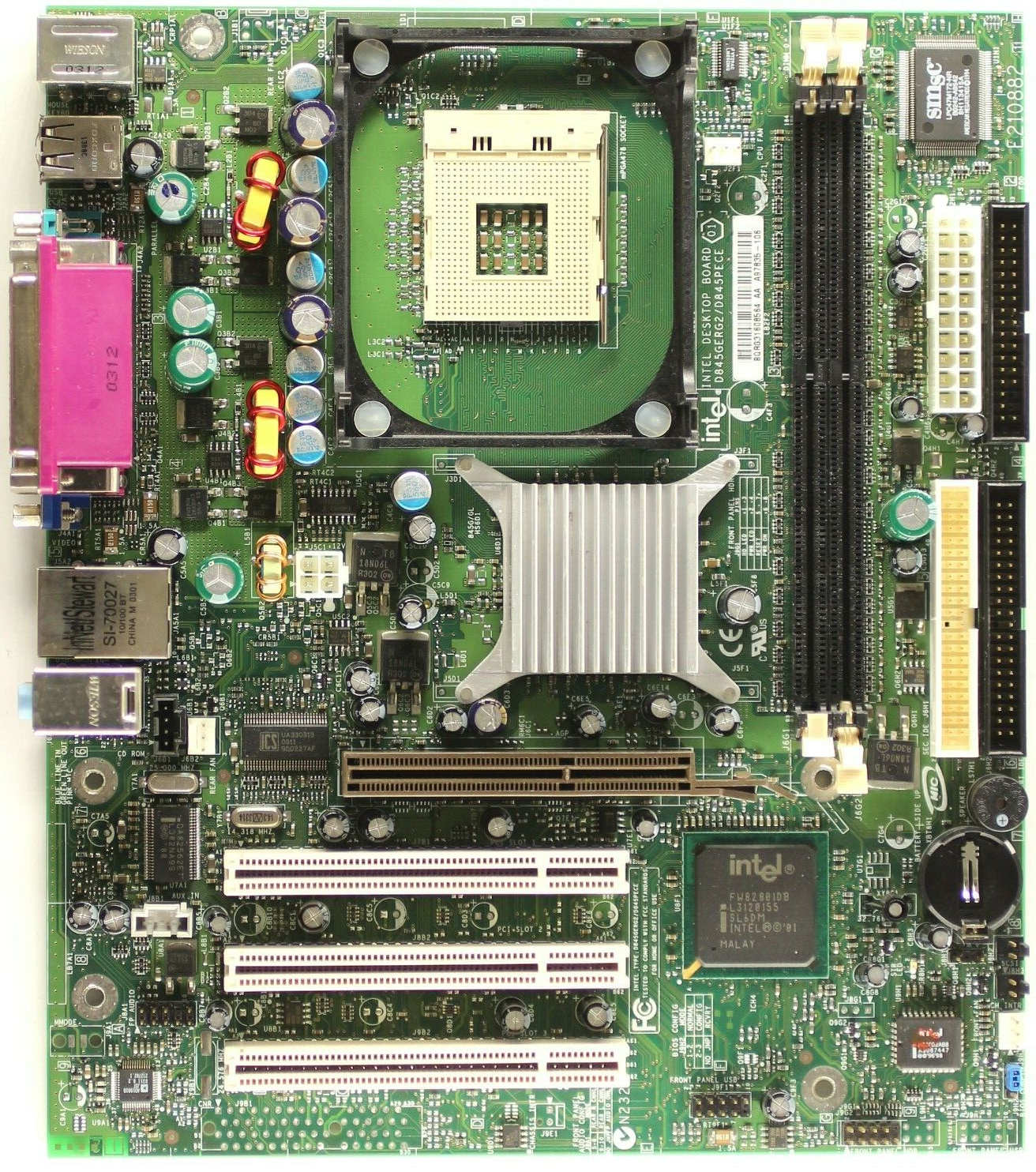

image5 Image 5 of 6 (Motherboard Continuum)

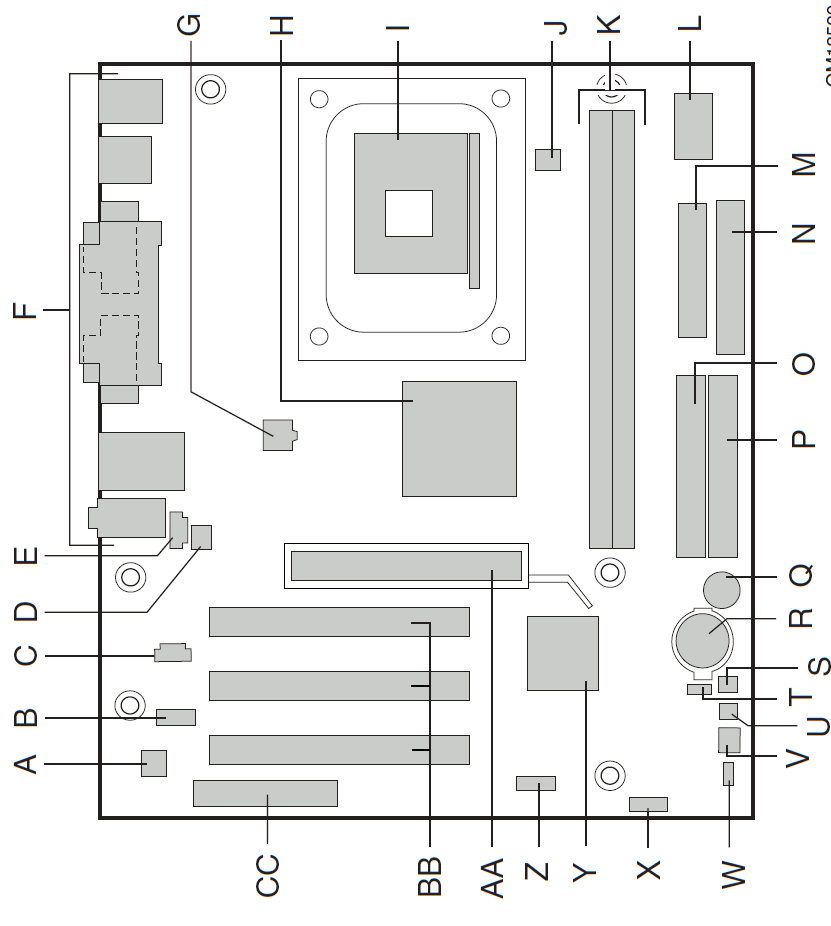

image6 Image 6 of 6 (Motherboard Continuum)
