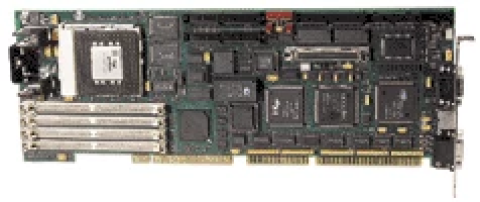

ICS Computers SB586T2V

Chipset

Intel 430HX (PCIset HX Triton II)

Socket

Socket 7 (PGA321)

FSB speed

66MHz

Form factor

Single Board Computer

Dimensions

Empty

Max VRAM size

1MB

Cache

512KB

Max RAM size

256MB

RAM types

72-pin FPM72-pin EDO

PSU connector

Empty

I/O ports

Floppy interface

IDE interface

PS/2 keyboard

PS/2 mouse

Parallel

Serial

VGA

Expansion slots

PICMG 1.0 (PCI/ISA)

Known issues

DALLAS RTC coin cell empty

The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.

Last updated 2024-03-20T22:00:46Z

Board info score is 6.8/10

Chips

-> Chipset part

Intel 82439HX (TXC) Intel 82371SB (PIIX3)

-> Real-Time Clock

Dallas DS12887A

-> Video

Cirrus Logic CL-GD5446 (64-bit VisualMedia Accelerator)
