iBASE/iBT/TechnoLand MI805
Logs
chipChipset
cpuSocket
FCBGA1170 (BGA1170)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (12V) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
RJ-45 LAN
2x
SATA III
6x
Serial
4x
USB 2.0
1x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
1x
PCIe x1
notes Notes

Uses Intel I211AT or I210AT Gigabit Network Chip

Last updated 2025-07-17T15:13:21Z
Board info score is 7.5/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2016-07
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
File
Logs

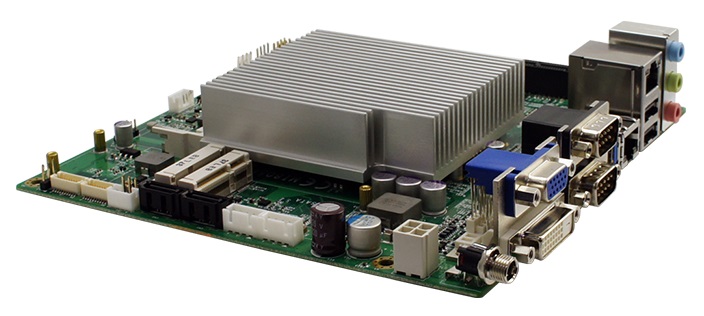

image1 Image 1 of 3 (iBASE/iBT/TechnoLand)

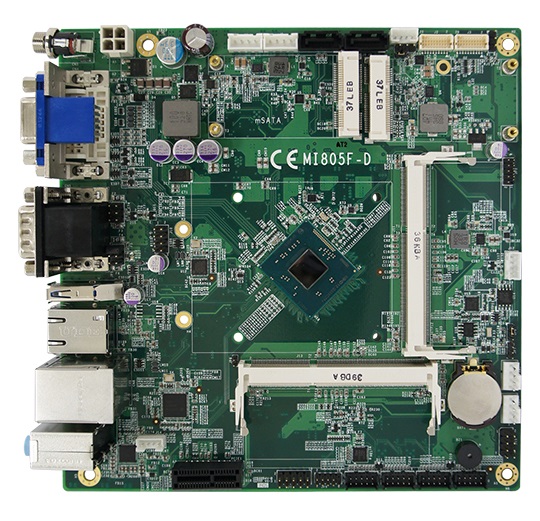

image2 Image 2 of 3 (iBASE/iBT/TechnoLand)

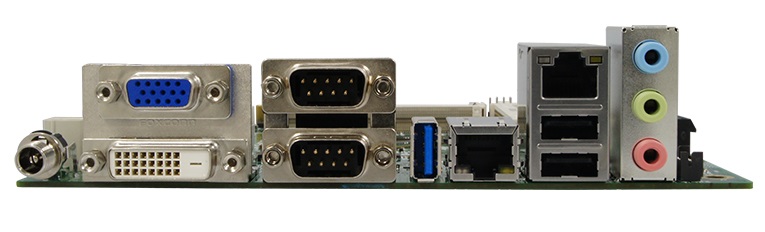

image3 Image 3 of 3 (iBASE/iBT/TechnoLand)
