Gigabyte GA-5AX Rev. 4.x
Chipset
Socket
FSB speeds 66MHz75MHz83MHz95MHz100MHz105MHz110MHz115MHz120MHz125MHz130MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 185mm
Cache
512KB
Max RAM size
768MB
RAM types SDR UDIMM168-pin EDO UDIMMSDR UDIMM ECC
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
Notes
Late revision of GA-5AX, changes PCI/ISA layout from 4/3 to 5/2
Difference between rev 4.x and 5.x
Last updated 2024-11-22T09:26:22Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Power Regulation
-> Real-Time Clock
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/19/2000-ALADDIN5-2A5KKG09C-00
Note
Latest BIOS
Core version
4.51PG
BIOS version
Logs
POST string
09/12/2002-ALADDIN5-6Z5KKG09C-00
Note
eSupport upgrade
Core version
6.00PG
BIOS version
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0.1.2
OS support
Windows 2000
Windows XP/2k3
Arch
Size
30.4KB
Filename
Name
Version
1.20
OS support
Windows 9x
Arch
Size
615.5KB
Filename
Name
Version
3.56
OS support
Windows 9x
Windows NT 4.0
Arch
Size
880.3KB
Filename
Name
Version
1.00
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2.13
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
7.3MB
Filename
Name
Version
2.20
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
10.1MB
Filename
5 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-05-08
File
Logs
Chip
Release date
2000-03-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1998-01
File
Logs
Image 1 of 3 (Microhouse)

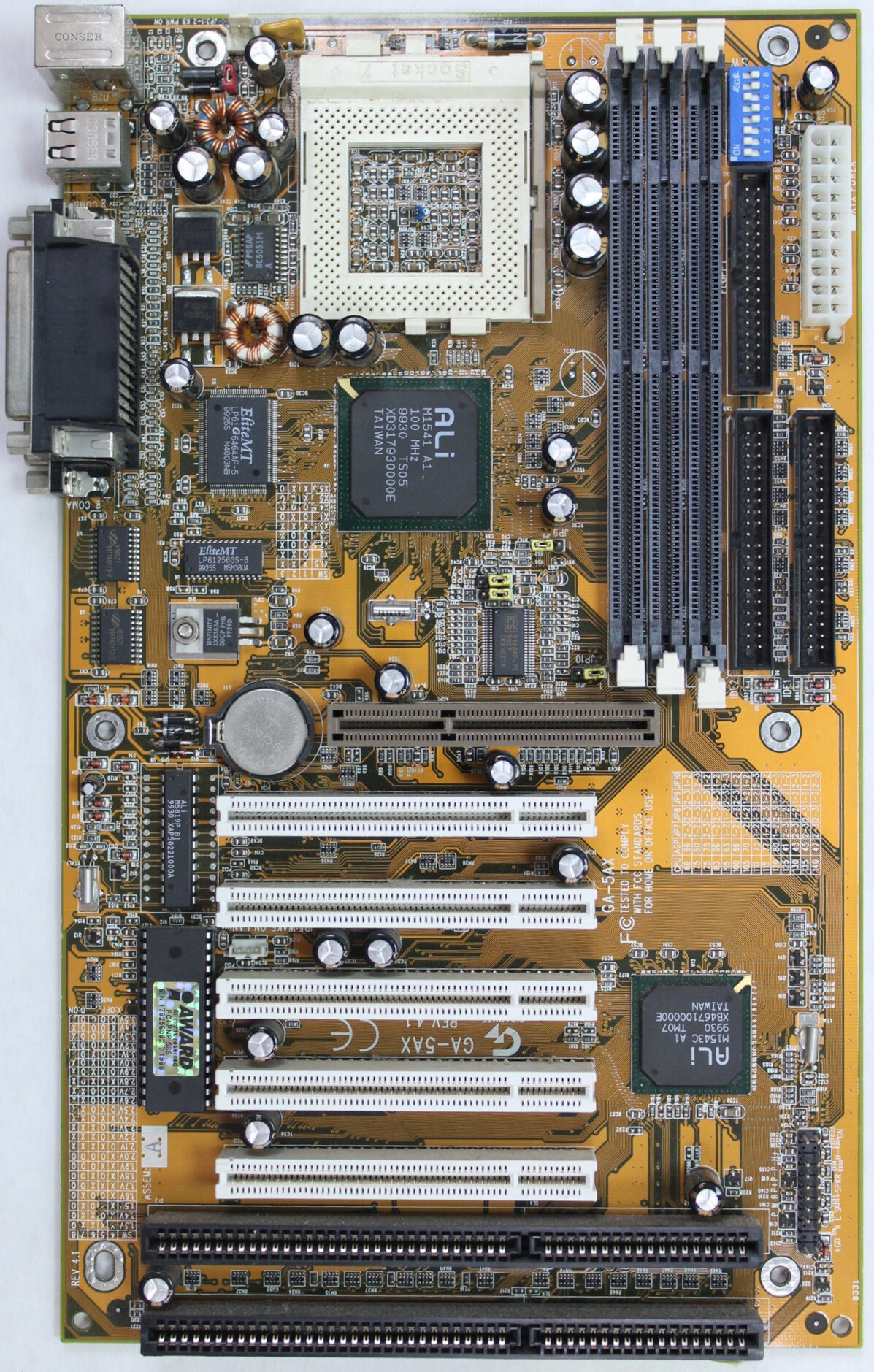

Image 2 of 3 (Clous)

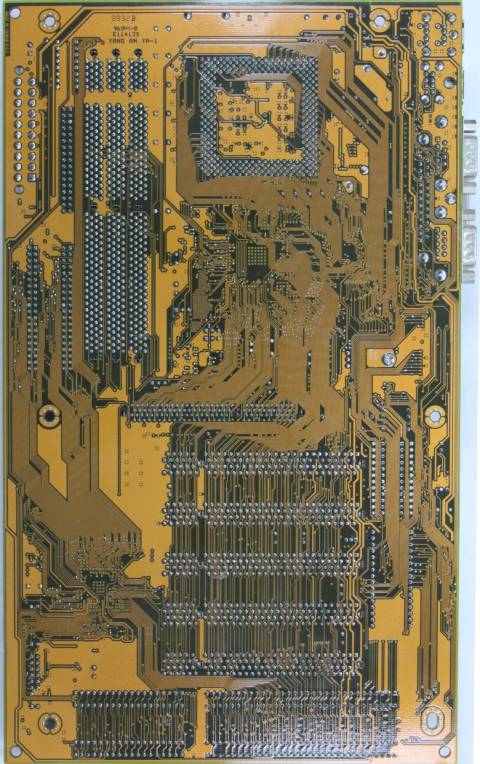

Image 3 of 3 (Clous)
