ECS SI58P VIO Rev.1.0B
Logs
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
Cache
256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
2x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser

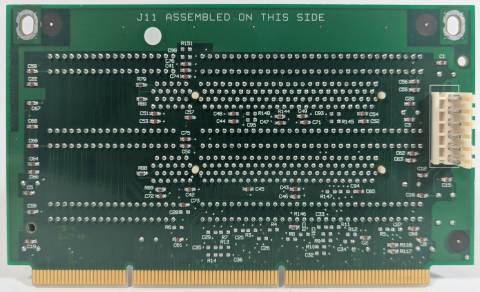

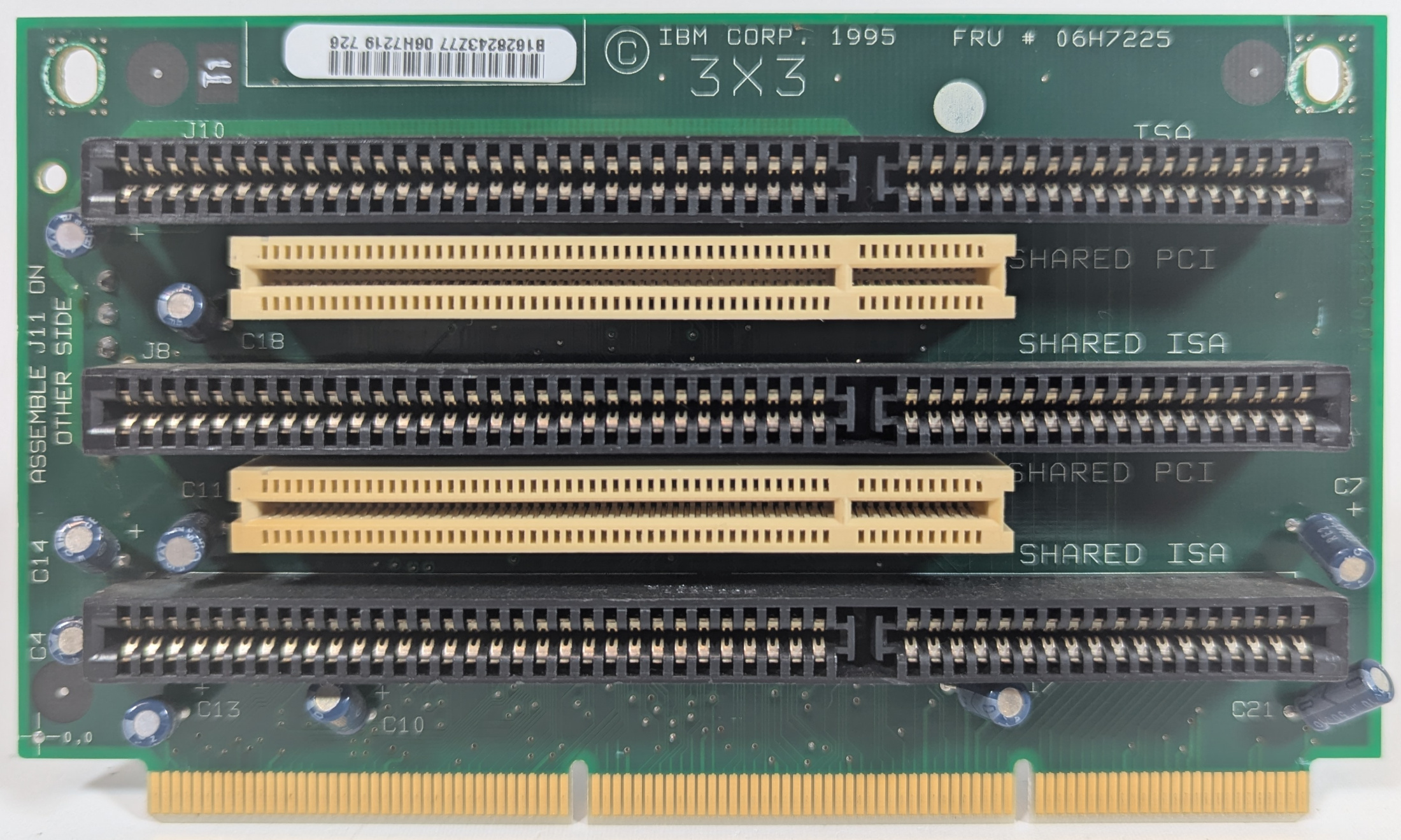

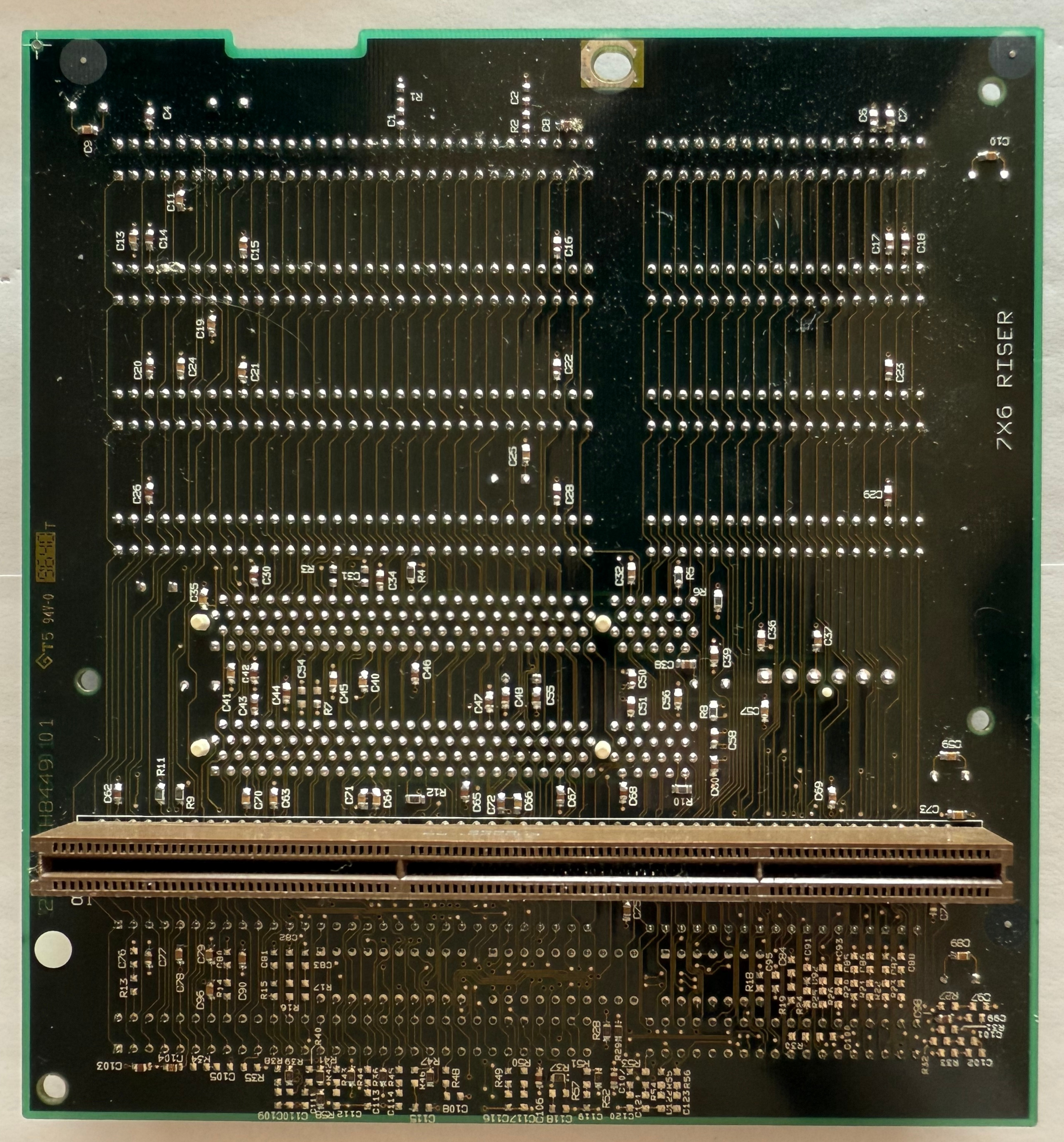

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-29T13:10:39Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Super I/O
-> Video
CPU family support
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 3.1
Arch
x86
Size
5.5MB
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 10 (Microhouse)
Image 2 of 10 (xoggy)
Image 3 of 10 (xoggy)
Image 4 of 10 (Andrew Spode)
Image 5 of 10 (xoggy)
Image 6 of 10 (Andrew Spode)
Image 7 of 10 (xoggy)
Image 8 of 10 (xoggy)
Image 9 of 10 (Andrew Spode)
Image 10 of 10 (Andrew Spode)
