Dell 0CRH6C
Chipset
Socket
FSB speed Empty
Form factorSSI CEB (max 305 × 267 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
48GB
RAM types DDR3 RDIMM ECCDDR3 UDIMM ECC
PSU connector
Multi CPU support2 CPUs
Also known as
- Dell Precision T5500
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
5x
SATA II
1x
Serial
10x
USB 2.0
1x
eSATA II
Expansion slots1x
32-bit PCI
1x
64-bit PCI-X
2x
PCIe x16
2x
PCIe x16 @ x8
Last updated 2025-12-04T15:50:04Z
Board info score is 6.8/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Clock Synth / PLL
-> Miscellaneous
Winbond WPCT210KA0WX (TPM 1.2)
ICS ICS9DB803D (Differential Buffer for PCIe)
ICS ICS9DB1200B (Differential Buffer for PCIe)
-> Network
-> Power Regulation
-> Programmable Logic
-> Sensing / Monitoring
-> Super I/O
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.10.02.6585
OS support
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
12.2MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2010-01-26
File
Logs
Chip
Release date
2009-03
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
2007-08-31
File
Logs
Chip
Release date
2025
File
Logs
Chip
Release date
2019
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs

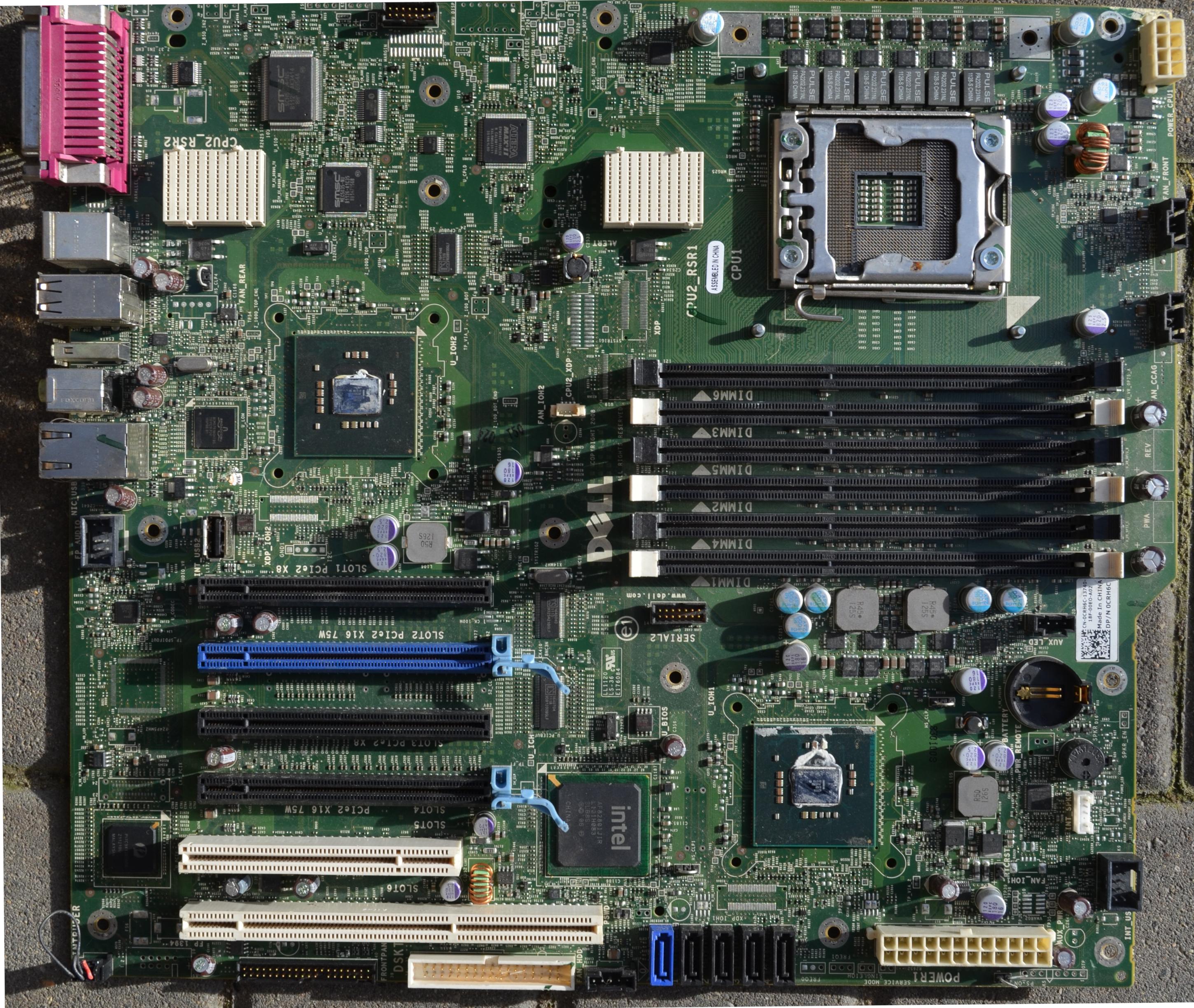

Image 1 of 4 (Dell)

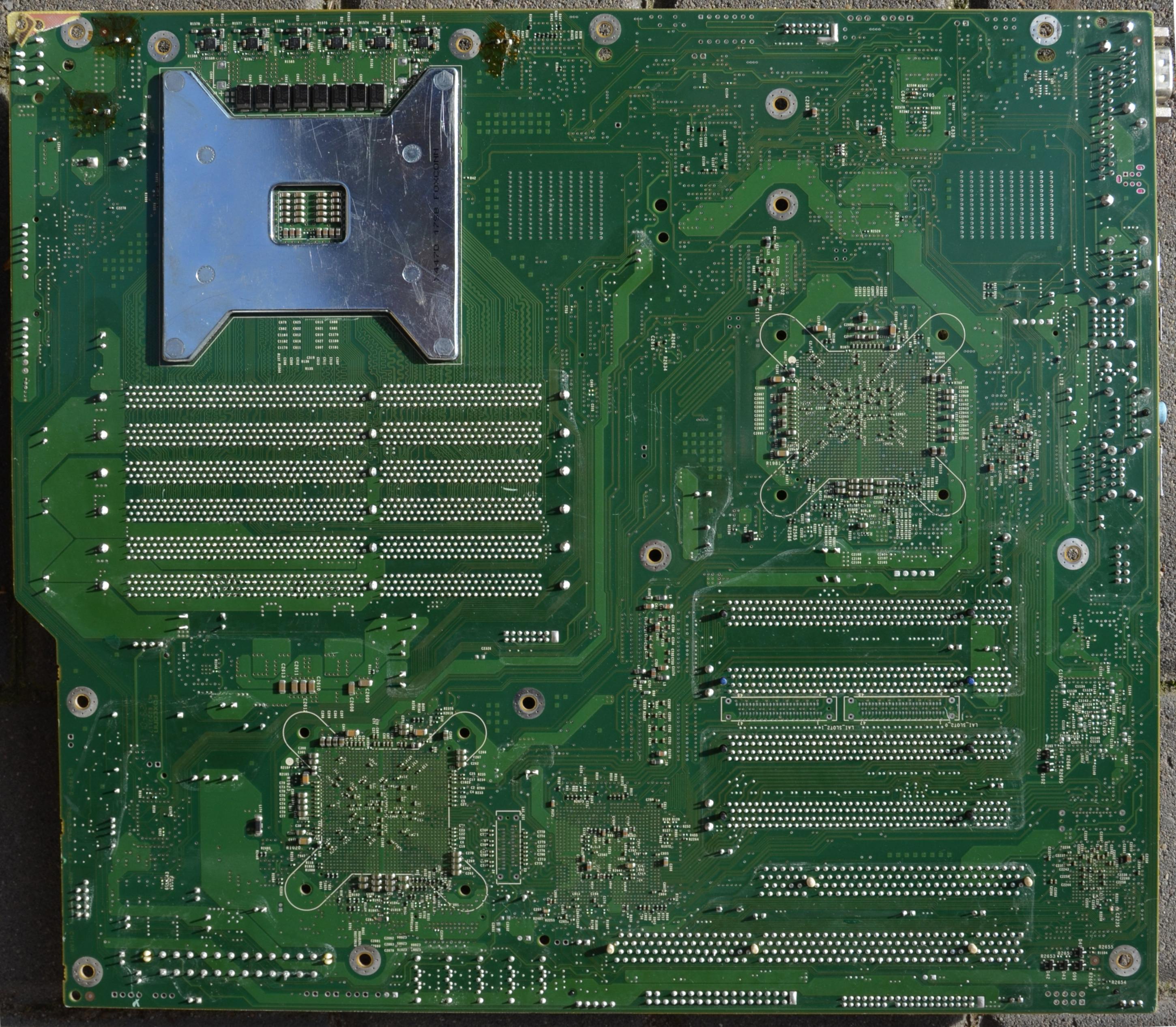

Image 2 of 4 (kotelstudios)
Image 3 of 4 (kotelstudios)
Image 4 of 4 (Dell)
