CAF TECHNOLOGY Prolite 286
Chipset
Sockets
FSB speeds 12.5MHz16MHz
Form factorOEM / Proprietary
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
8MB
RAM type 30-pin SIMM
PSU connector
Also known as
- Senor Science Co. 21-000136
I/O ports1x
AT Keyboard
1x
EGA
1x
Parallel
1x
Serial
Expansion slotsEmpty
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Notes
Solutions 88C211/88C215/88C216 = relabeled C&T NEAT chipset
Inital bios was declared illegal because copied too much from IBM.
Last updated 2025-12-11T10:31:18Z
Board info score is 7.6/10
Chips
-> Chipset part
CHIPS and Technologies 82C211 (CPU/BUS Controller)
CHIPS and Technologies 82C212 (Memory Controller)
CHIPS and Technologies 82C215 (Address/Data Buffer)
(multiple brand) 82C206 (DMA, IRQ, timer and RTC ctrl.)
-> Floppy ctrl.
-> Human Interface
-> Peripheral I/O
-> Signal transmitter/receiver
-> UART ctrl.
-> Video
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

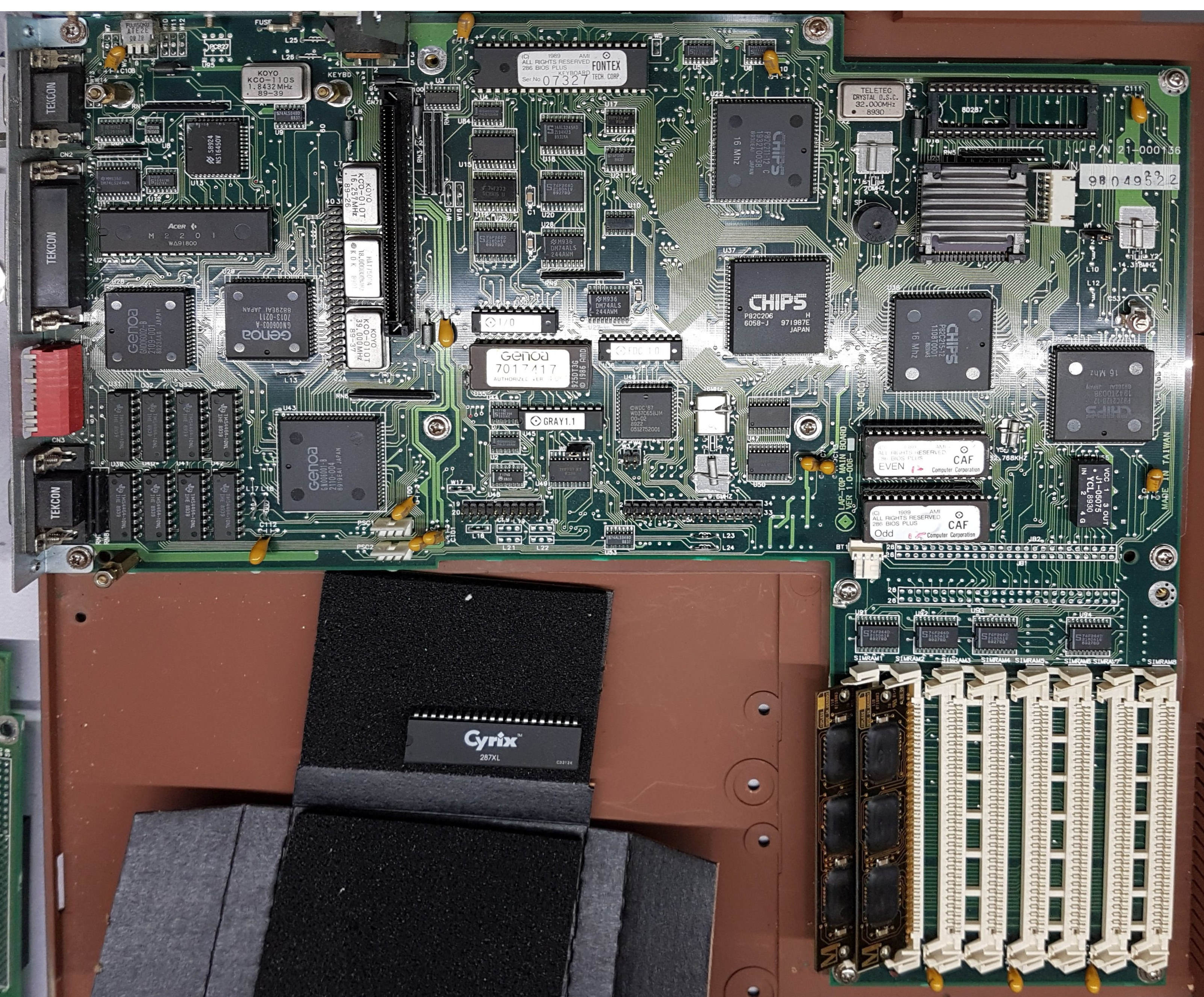

Image 1 of 1 (jensma)
