BCM FM562
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speed
Empty
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
None/Integrated in the CPU
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • HP 5182-5573
  • HP D3852-6xxxx
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
5x
16-bit ISA
2x
32-bit PCI
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Used in HP Pavilion 5235, 5255, 5305, 5320, 5322, 7125 GVC, 7230P

Due to a BIOS bug the system may hang at a blinking cursor while booting if an HDD partition exceeding 2015 MB is present, even when booting from an external medium like a floppy or CD drive.

Last updated 2025-11-17T15:52:06Z
Board info score is 9.1/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
A50X9005
Note
Core version
4.05
BIOS version
Logs
POST string
A50X9005
Note
Core version
4.05
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
1.00
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x Windows NT 3.1
Arch
x86
Size
5.5MB
Filename
Name
Version
2.13
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

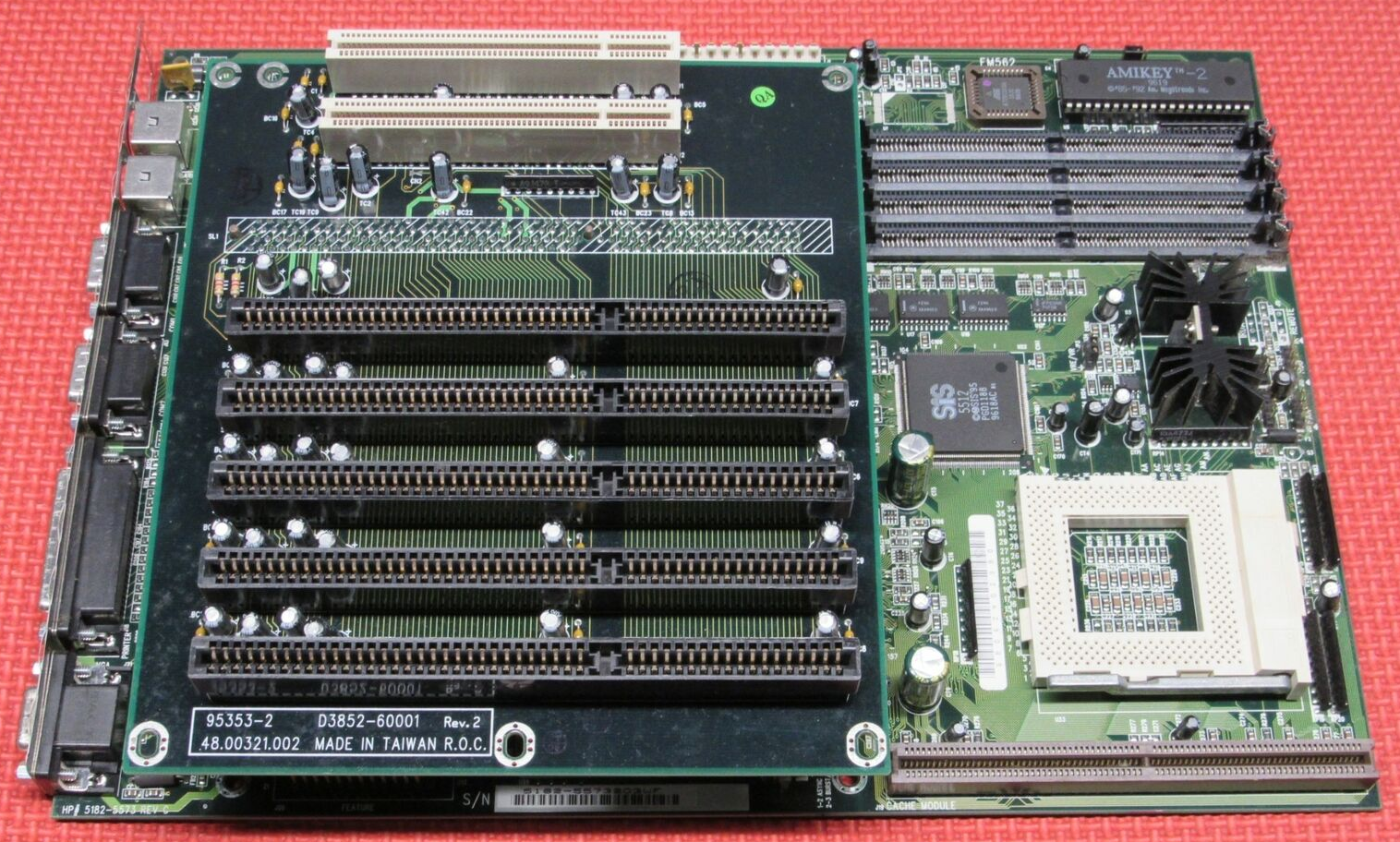

image1 Image 1 of 3

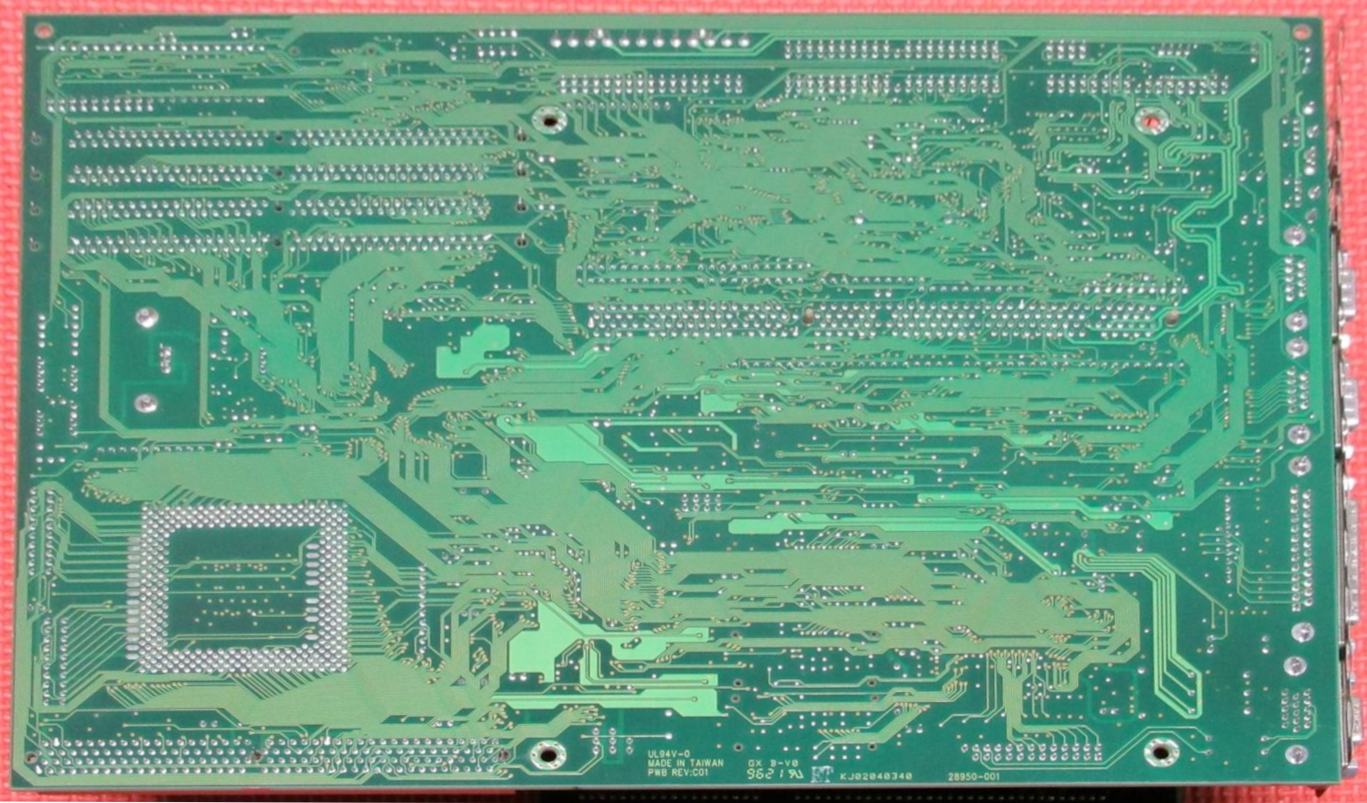

image2 Image 2 of 3
image3 Image 3 of 3
