AXIOM Tech / AXIOMTEK CAPA500 (Q170)
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
146mm x 104mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
260-pin DDR4 SO-DIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
HDMI
1x
LVDS
2x
RJ-45 LAN
1x
SATA III
1x
Serial
3x
USB 2.0
3x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
60-pin ZIO
1x
Mini-PCIe
notes Notes

Uses ALC662 or ALC888S Audio Chip

Optional ZIO Connector

Last updated 2025-05-28T13:59:20Z
Board info score is 7.7/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2015-05-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2016-07
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 4 (AXIOM Tech / AXIOMTEK)

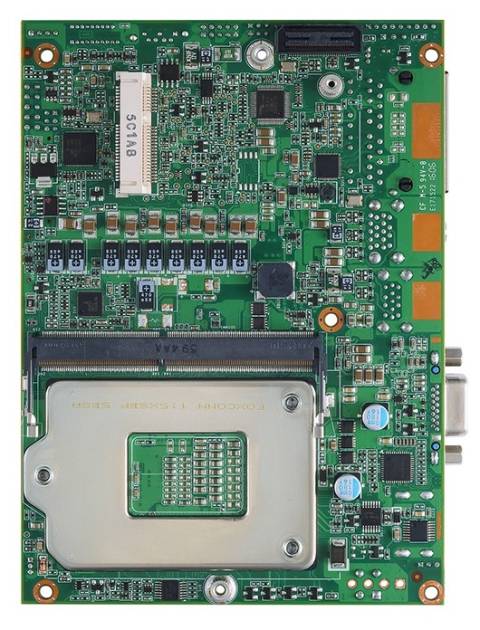

image2 Image 2 of 4 (AXIOM Tech / AXIOMTEK)
image3 Image 3 of 4 (AXIOM Tech / AXIOMTEK)

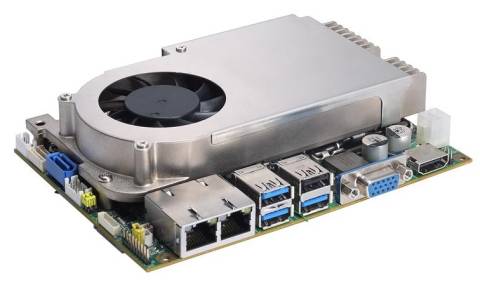

image4 Image 4 of 4 (AXIOM Tech / AXIOMTEK)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
