ASUS 970 PRO GAMING/AURA (Rev. 1.01)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
6x
SATA III
1x
Serial
1x
Toslink
14x
USB 2.0
2x
USB 3.0
2x
USB 3.1 Type-A
cardExpansion slots
2x
32-bit PCI
1x
M.2 (M key)
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Last updated 2025-11-17T23:03:52Z
Board info score is 9.4/10
bios 7 BIOS files available

vendor AMI - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10 Windows 7 Windows 8.x Windows Vista
Arch
x86 , x86-64 , IA-64
Size
8.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2015-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2016-07
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
File
Logs

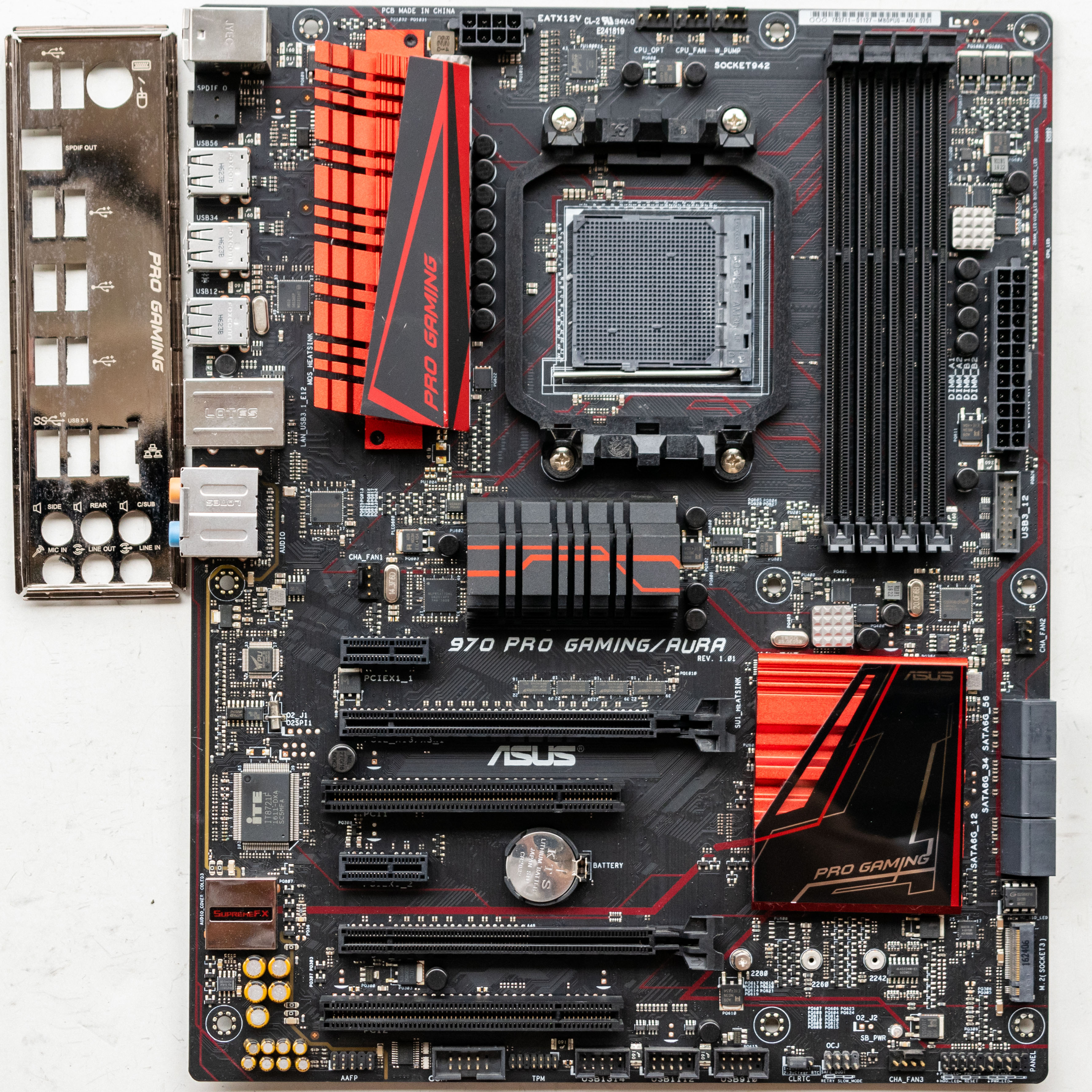

image1 Image 1 of 4 (ASUS)

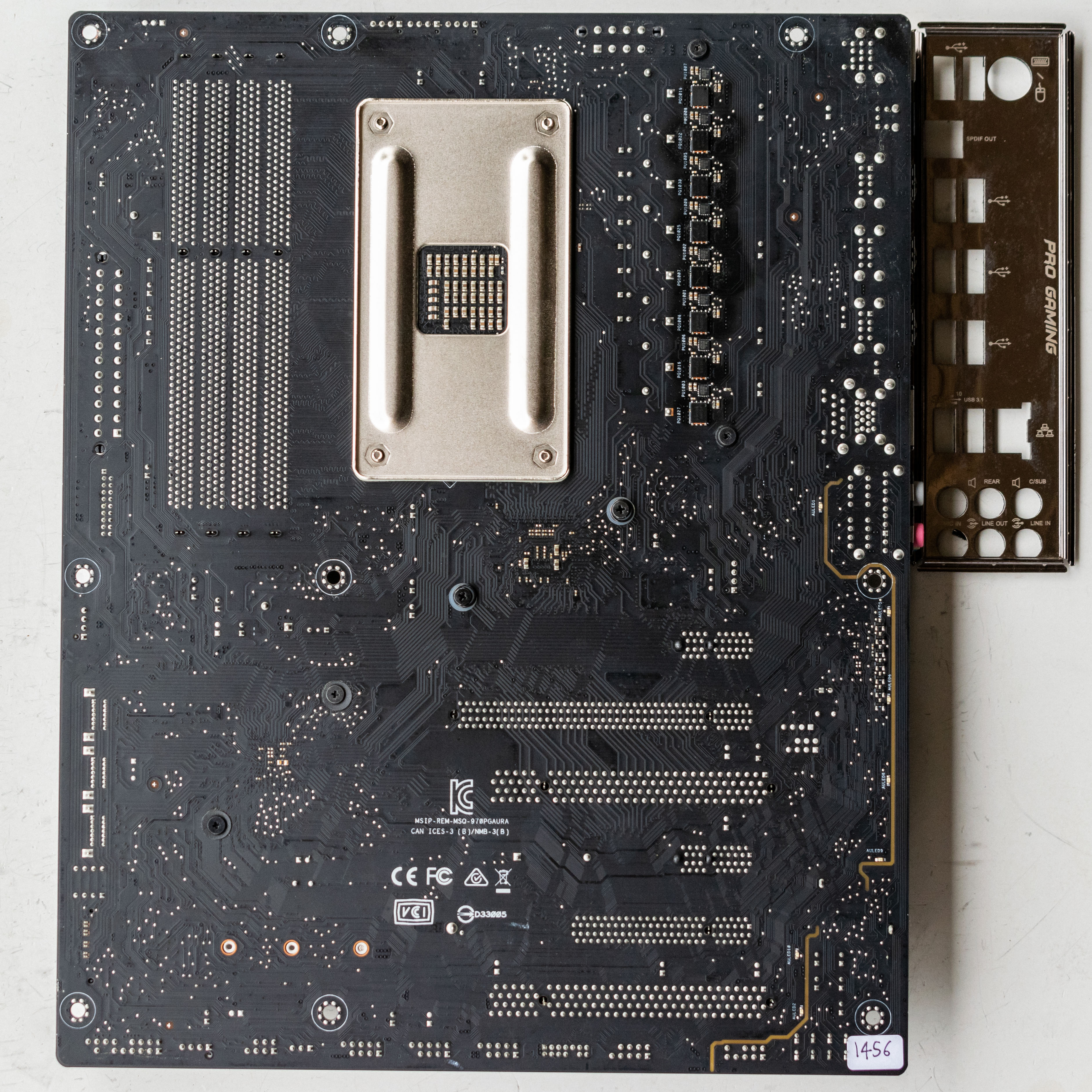

image2 Image 2 of 4 (Motherboard Continuum)

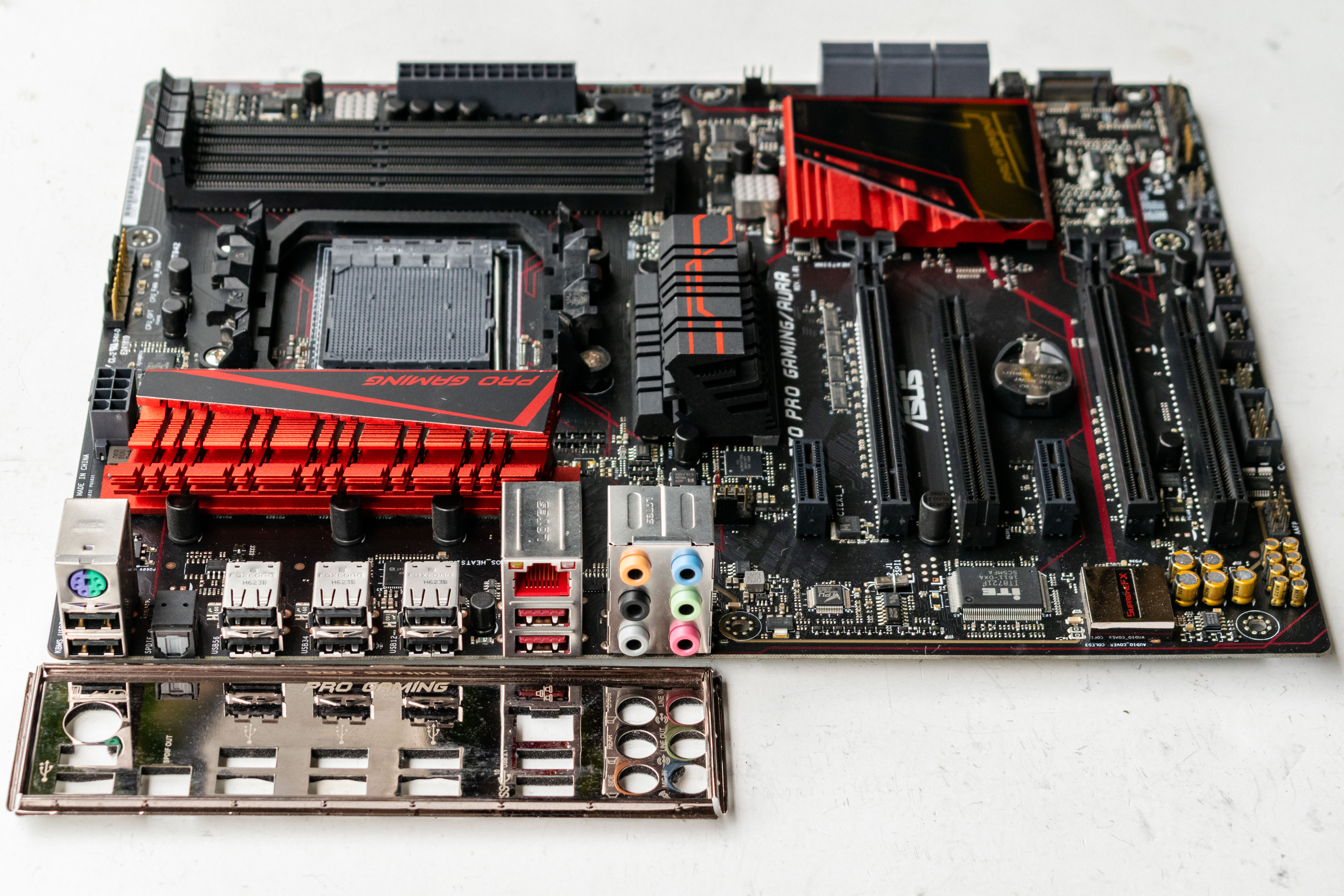

image3 Image 3 of 4 (Motherboard Continuum)

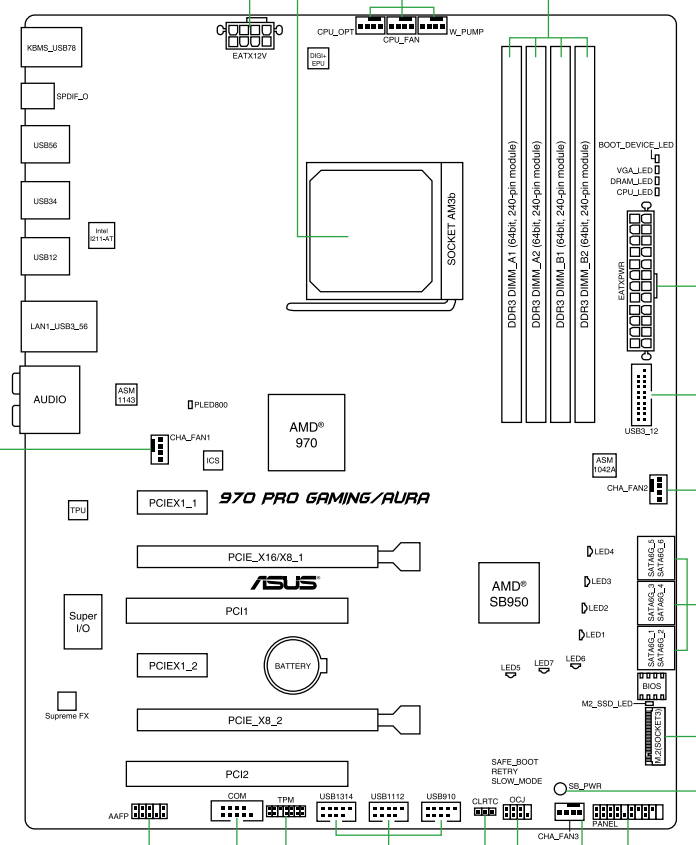

image4 Image 4 of 4 (Motherboard Continuum)
