AOpen AX59 Pro
Chipset
Socket
FSB speeds 66MHz68MHz75MHz83MHz95MHz100MHz112MHz124MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 202mm
Cache
512KB1MB
Max RAM size
1GB(EDO + SDRAM)
RAM types 72-pin EDOSDR UDIMM
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
Notes
Board allows the mixing of EDO and SDRAM
512KB L2 versions of this board may default to only running in Write-Through L2 cache mode The BIOS was very poorly coded and despite setting Write-Back mode seems to default to hard coded WT settings with poor timings.
1MB L2 versions of this board default to Write-Back mode for L2 with fast settings.
A BIOS Patch needs to be developed or 512K boards upgraded to 1MB L2.
Last updated 2025-07-28T09:20:20Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Power Regulation
-> Super I/O
19 BIOS files available
Award - 19 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.6
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2.1.24
OS support
Windows 9x
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
973.7KB
Filename
9 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05-13
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1998-01
File
Logs

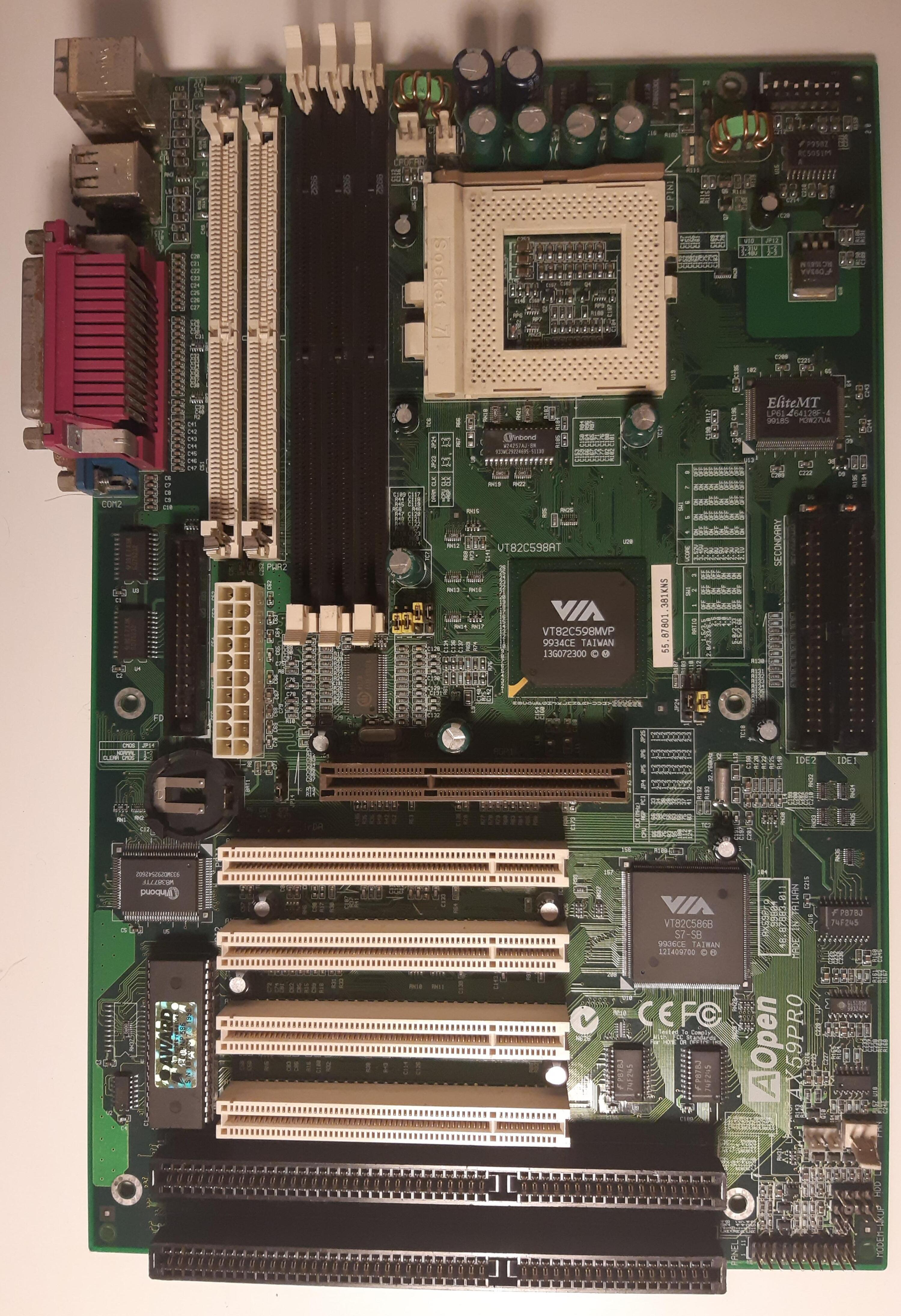

Image 1 of 5 (Microhouse)
Image 2 of 5 (Clous)

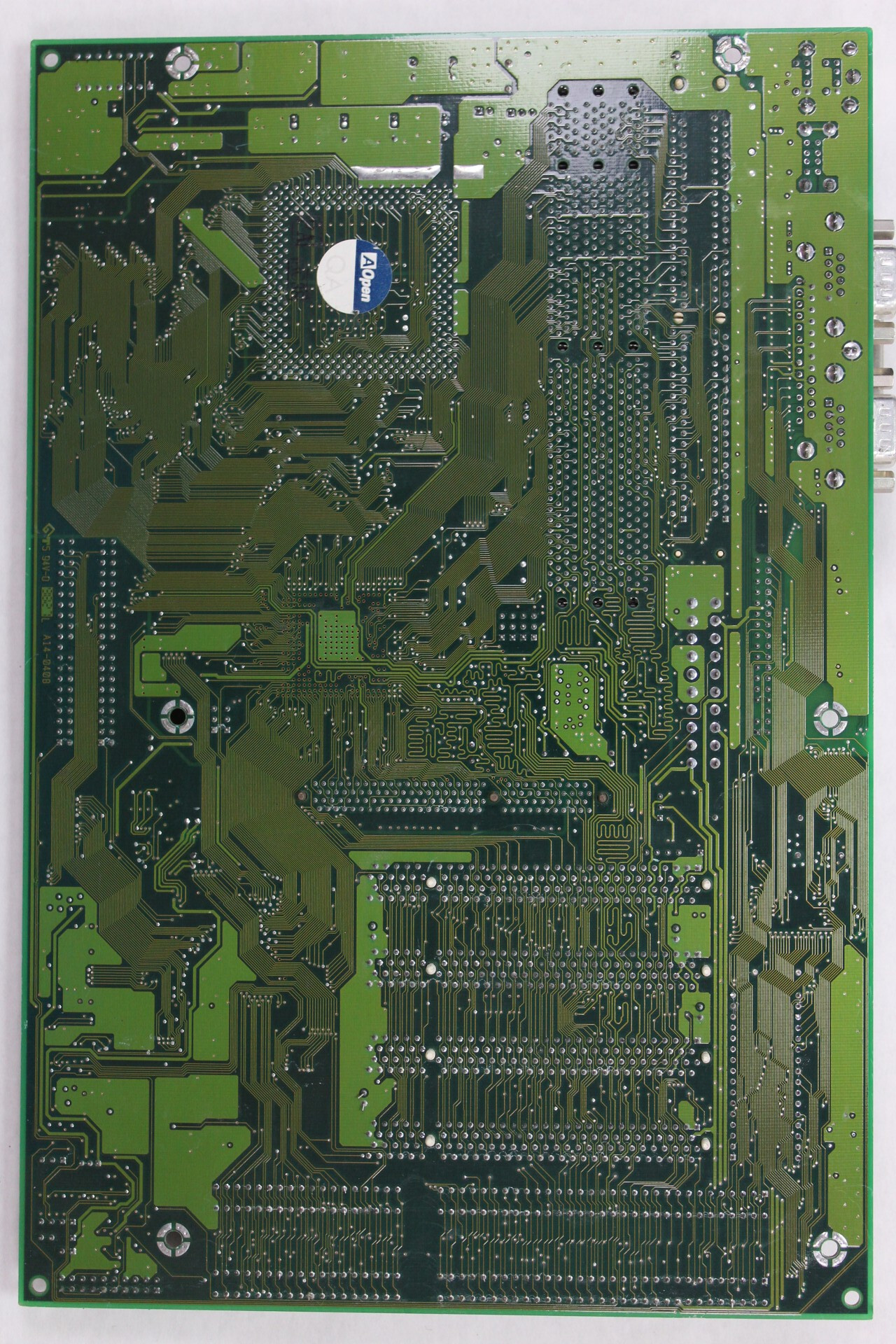

Image 3 of 5 (Carlos S. M.)

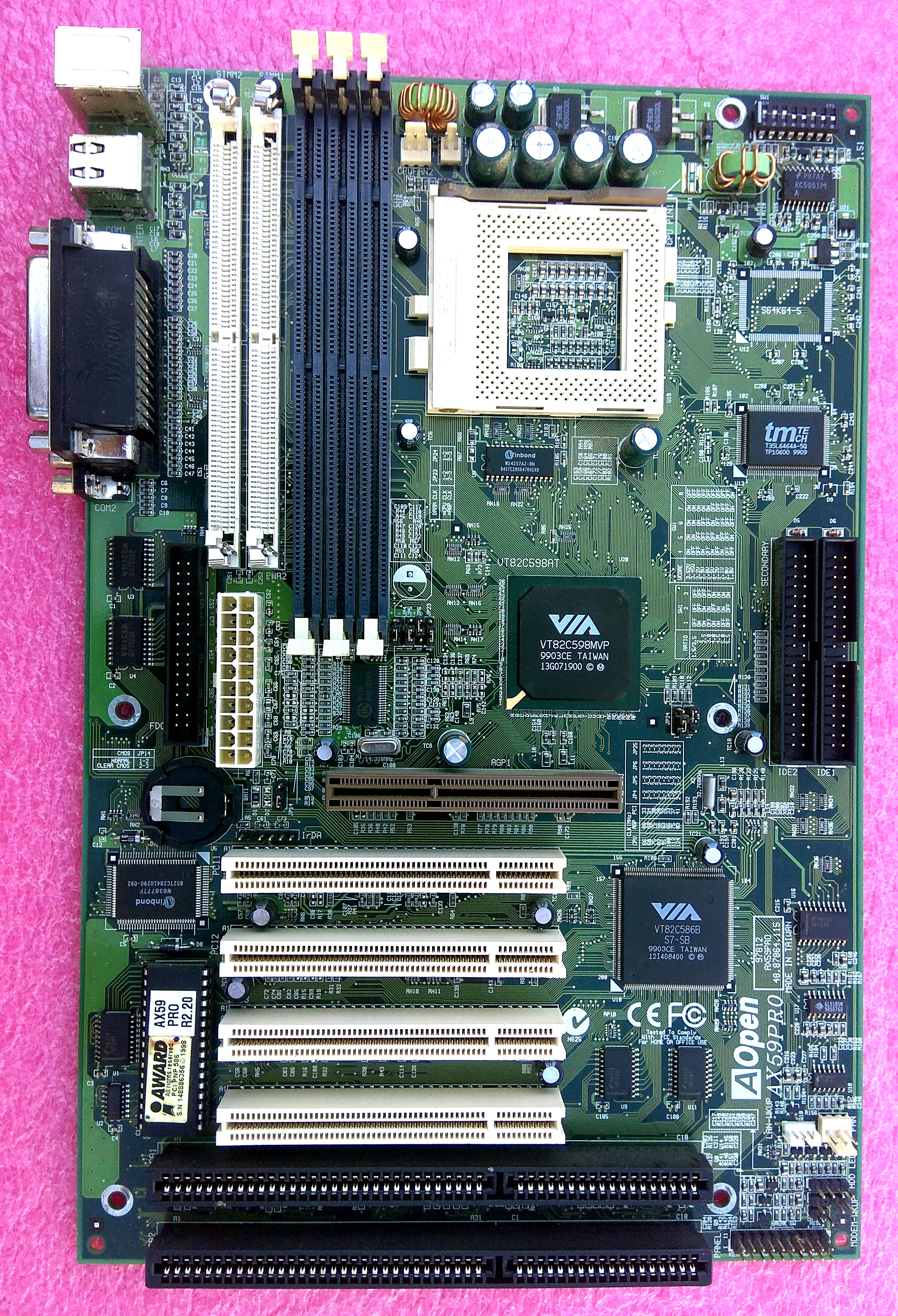

Image 4 of 5 (Rigo "0xCats" Reddig)
Image 5 of 5 (Clous)
