ABit AB-PH5 (rev. 1.3)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
40MHz50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
1x
COAST Slot
1x
Pentium VRM Header
Last updated 2025-08-09T22:33:37Z
Board info score is 9.6/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/19/96-SiS-5511-5513-2A5IDA19C-D9
Note
Super I/O: FDC37C665GT
Core version
4.51PG
BIOS version
Logs
POST string
10/04/95-SiS-5511-5513-2A5IDA19C-4F
Note
Super I/O: FDC37C665GT
Core version
4.50PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.13
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Arch
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
image1 Image 1 of 3 (Microhouse)

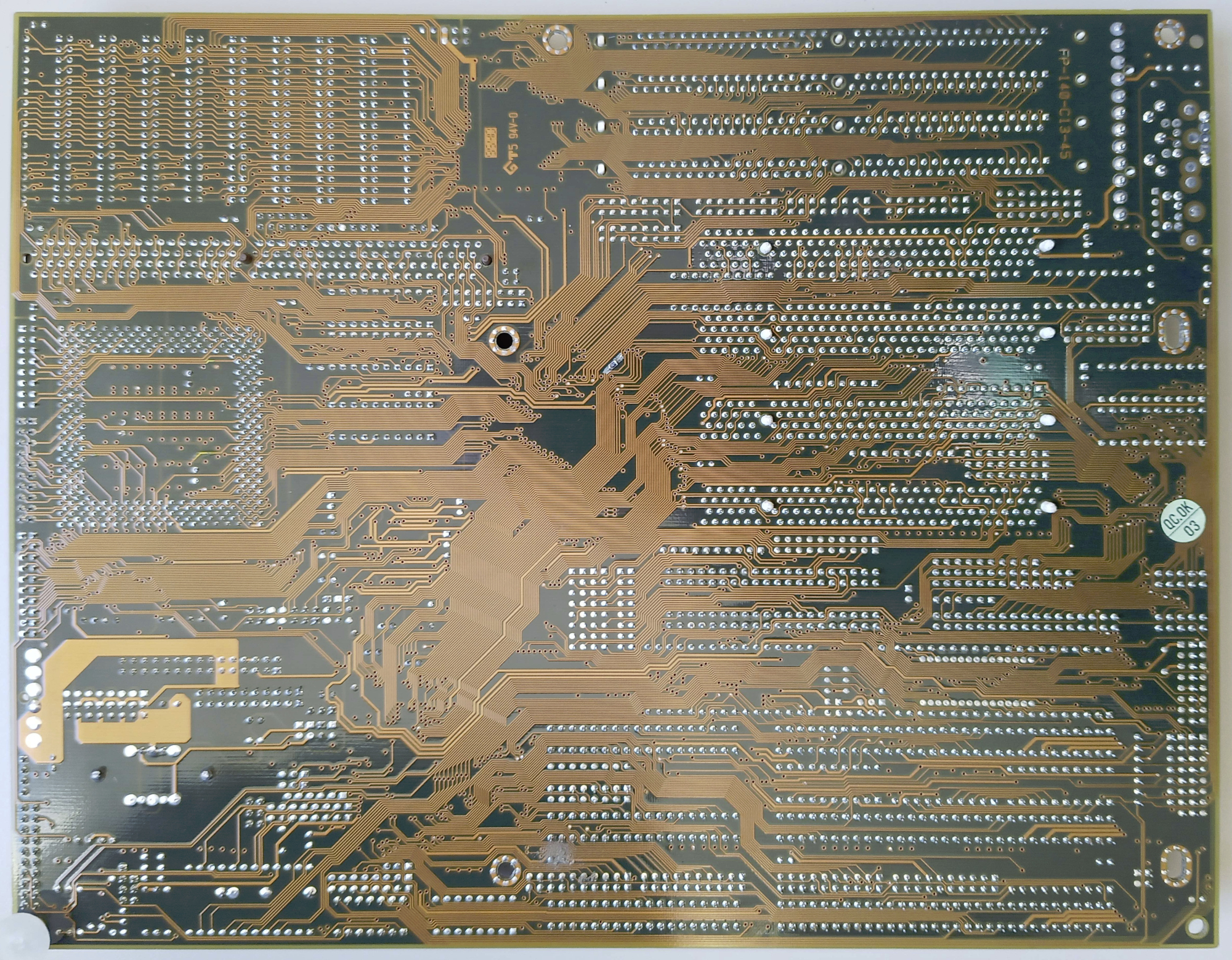

image2 Image 2 of 3 (matt)

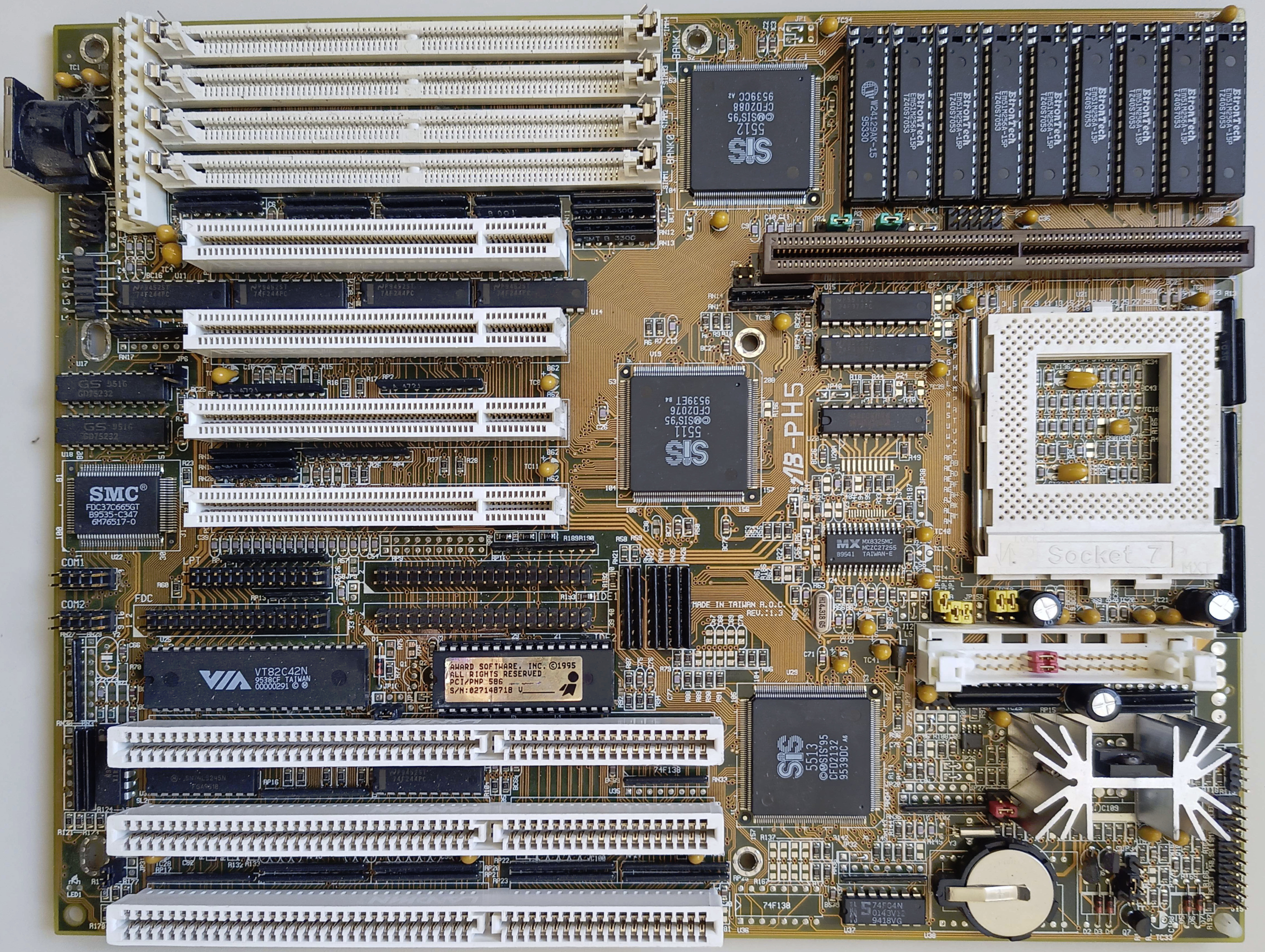

image3 Image 3 of 3 (matt)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
