Suk Jung SJ-VSIO32VL
Logs
typeType
IDE controller Parallel controller Serial controller Video
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
datePCI ID
Empty
ramRAM type
DRAM
ramRAM size
1MB
chip Chips and specs
-> IDE ctrl.
ZyMOS/Appian ADI2 (LOCAL-BUS IDE)
-> RAMDAC
Sierra SC15025 (HiCOLOR-24™Palette)
-> Signal transmitter/receiver
UMC UM82C865F (I/O coupler)
-> Super I/O
UMC UM82C863F
-> Video
Tseng Labs (TLI) ET4000/W32
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
2x
  • 2x5 2.54mm pin header
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-08-03T23:45:01Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V8.03N (2/22/93)
Note
WinStar HANARO ET4000/W32 VGA BIOS
File
Logs
drv 20 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v1.15
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
31.6KB
Filename
Name
Version
v2.14
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Arch
x86
Size
624.8KB
Filename
Name
Version
1992-01-15
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
504.9KB
Filename
Name
Version
1991-10-29
OS support
Windows 3.1x
Arch
x86
Size
397.5KB
Filename
Name
Version
1991-12-06
OS support
Windows 3.0 Windows 3.1x
Arch
x86
Size
399.3KB
Filename
Name
Version
4.0.953
OS support
Windows 9x
Arch
x86
Size
18.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
545.2KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
543KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
541.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
621.6KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
989.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.0
Arch
x86
Size
85.1KB
Filename
Version
OS support
MS-DOS Windows 3.0
Arch
x86
Size
51KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 1.x Windows 3.0
Arch
x86
Size
53.8KB
Filename
Version
OS support
MS-DOS OS/2 1.x Windows 3.0
Arch
x86
Size
67.2KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

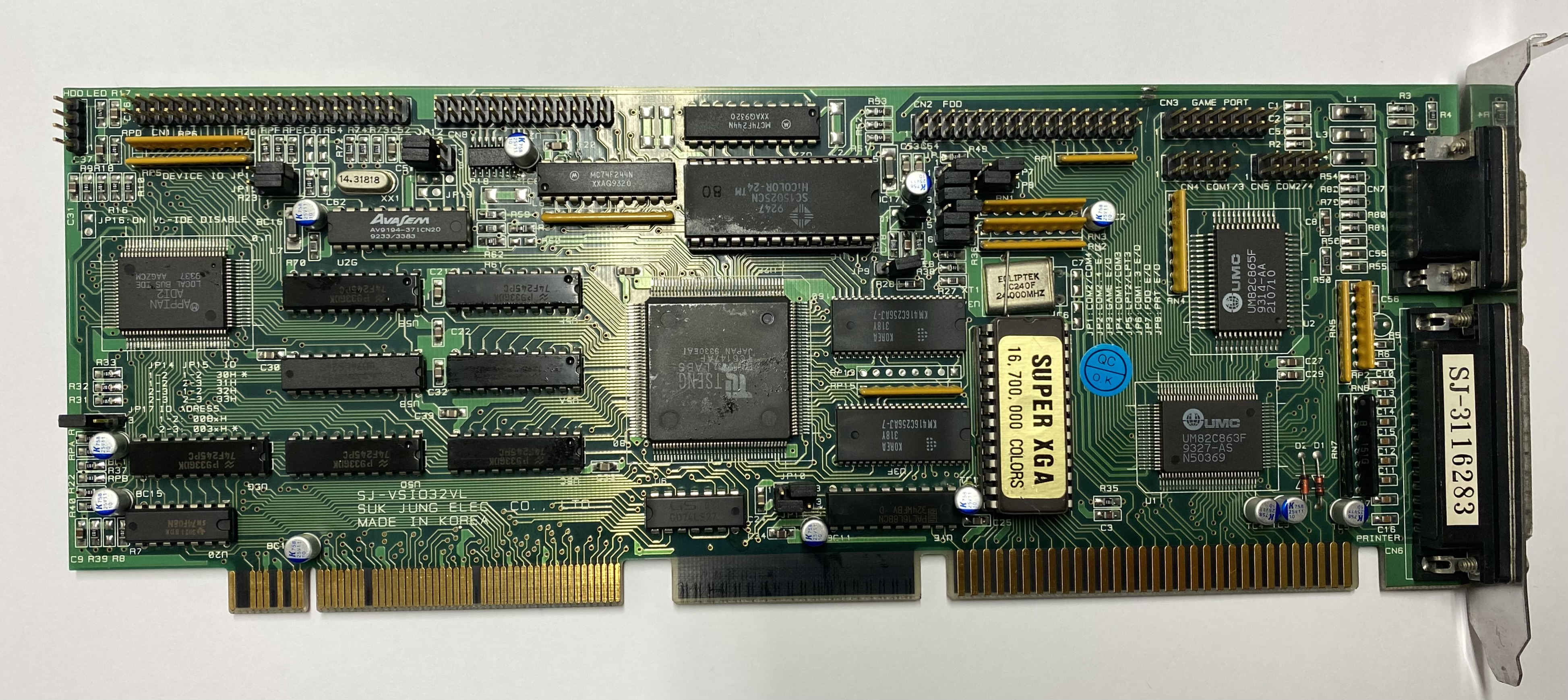

image1 Image 1 of 2 (dave_mm)

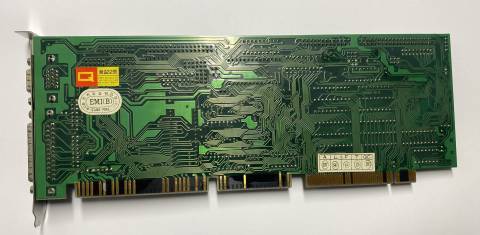

image2 Image 2 of 2 (dave_mm)
