PictureTel Live series Audio/Communications board
Logs
typeType
Peripheral/Misc
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Cirrus Logic CS4216 (16bit stereo codec)
-> Clock Synth / PLL
MITEL MT8940 (T1/CEPT Digital Trunk PLL)
-> Miscellaneous
MITEL MT8980D (Digital Switch)
-> Processor
Intel 80186-25 (N80C186-25) AT&T DSP1610 Texas Instruments TMS320C31 (Embedded Control DSP)
-> Programmable Logic
Xilinx XC3042
-> Signal transmitter/receiver
Siemens PEB2086 (ISDN S/T transm./rec. (ISAC)) PictureTel 426-0012-01 PCI
Microarchitecture
CPUID
Process node
Core
Bus speed 16MHz
Frequency 16MHz
Multiplier 1x
Power
Voltage 5V
tag Also known as
  • PolyCom Live series Audio/Communications board
portintI/O ports
1x
  • RJ45
1x
  • 7-pin Mini-DIN
1x
  • RCA Jack
1x
  • RCA Jack
powerPower connectors
Empty
notes Notes

Not the Live50, not the Live100. Video conferencing over ISDN

Last updated 2025-10-15T12:50:27Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

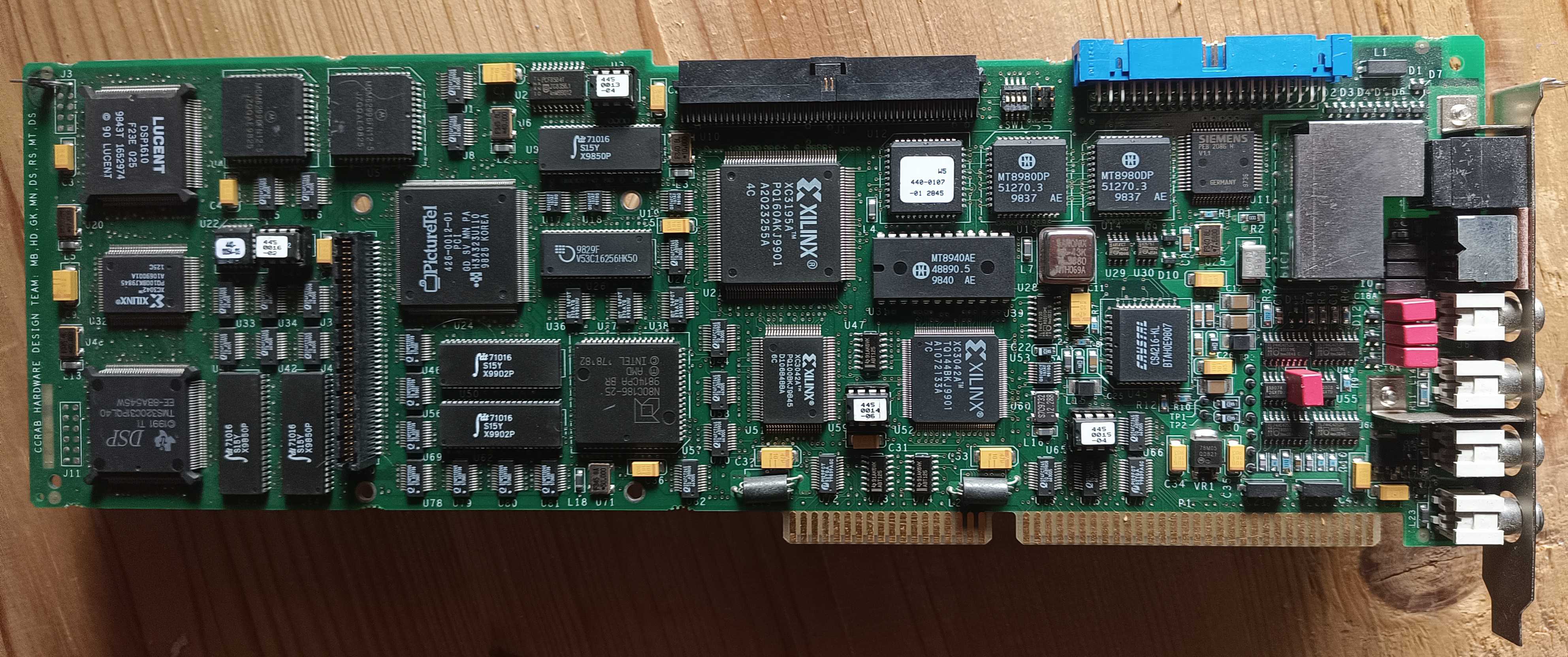

image1 Image 1 of 3 (Shadowdestroyer777)

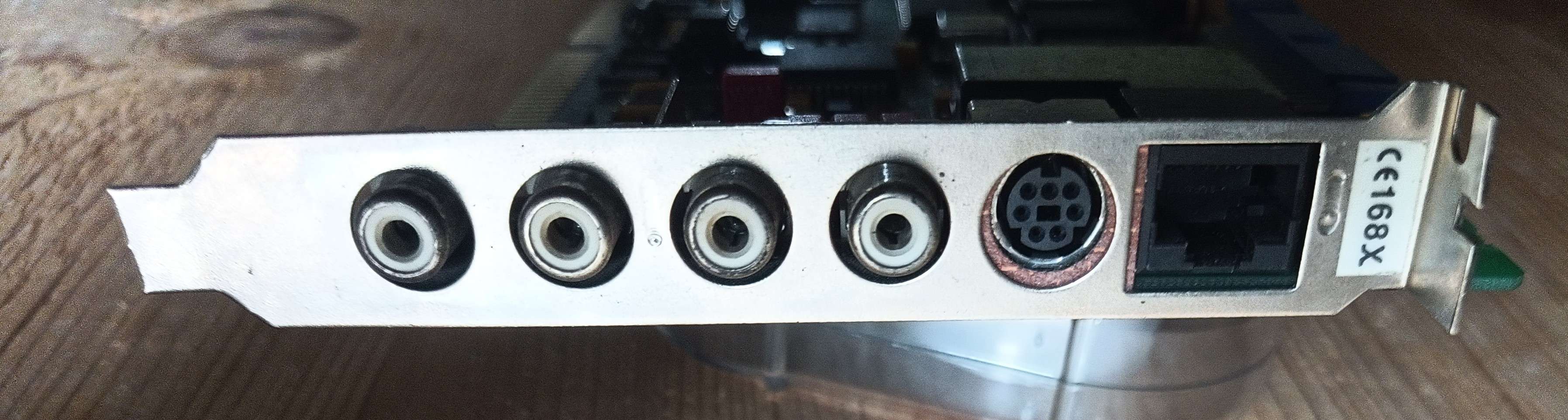

image2 Image 2 of 3 (Shadowdestroyer777)

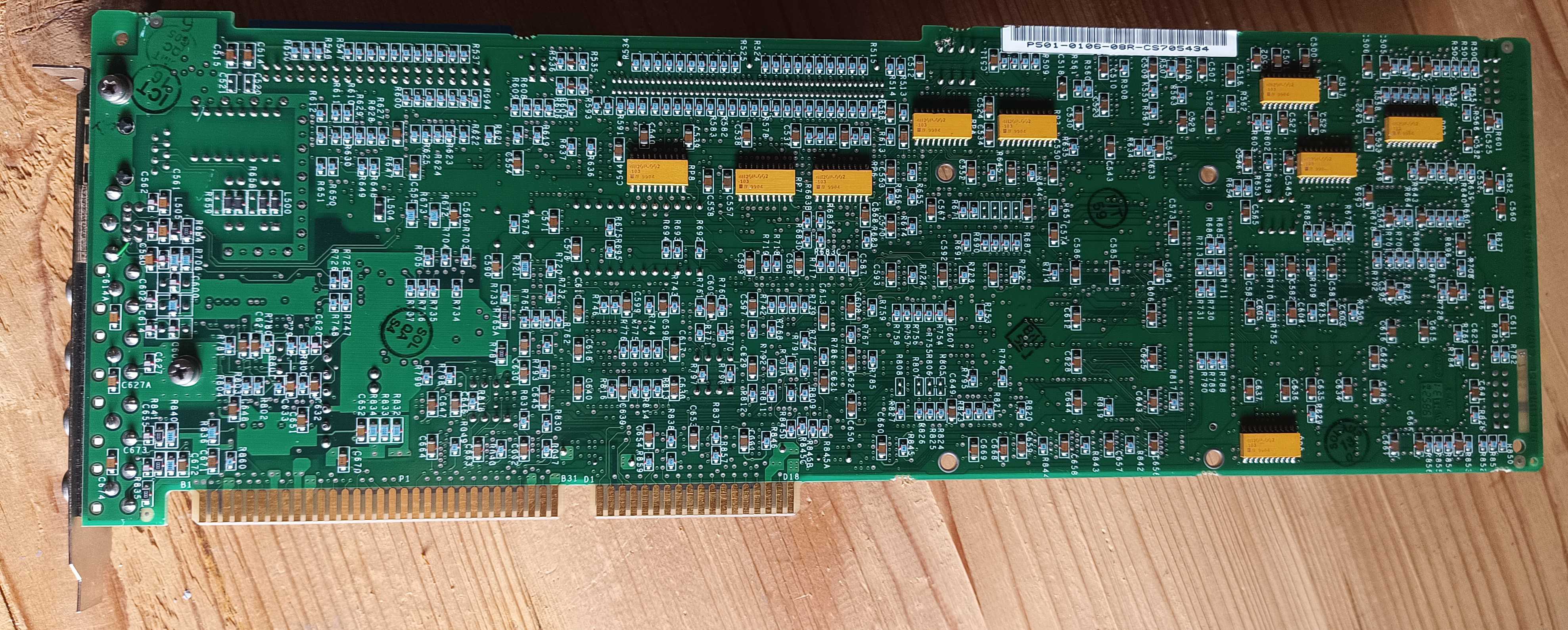

image3 Image 3 of 3 (Shadowdestroyer777)
