Macronix MX86101P PCI
Logs
typeType
Video
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
0066
ramRAM type
DRAM
ramRAM size
1MB2MB
chip Chips and specs
-> RAMDAC
Macronix MX86492 (RAMDAC)
-> Video
Macronix MX86101P
MTL
Data Bus 32 bit PCI
Card Type Video Card
Video Chip Set Macronix
Video Types Supported VGA
portintI/O ports
1x
  • 2x13 2.54mm pin header
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-11-30T11:30:43Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
V2.11
Note
MX86101P
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
101219a
OS support
MS-DOS Windows 3.1x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
1MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

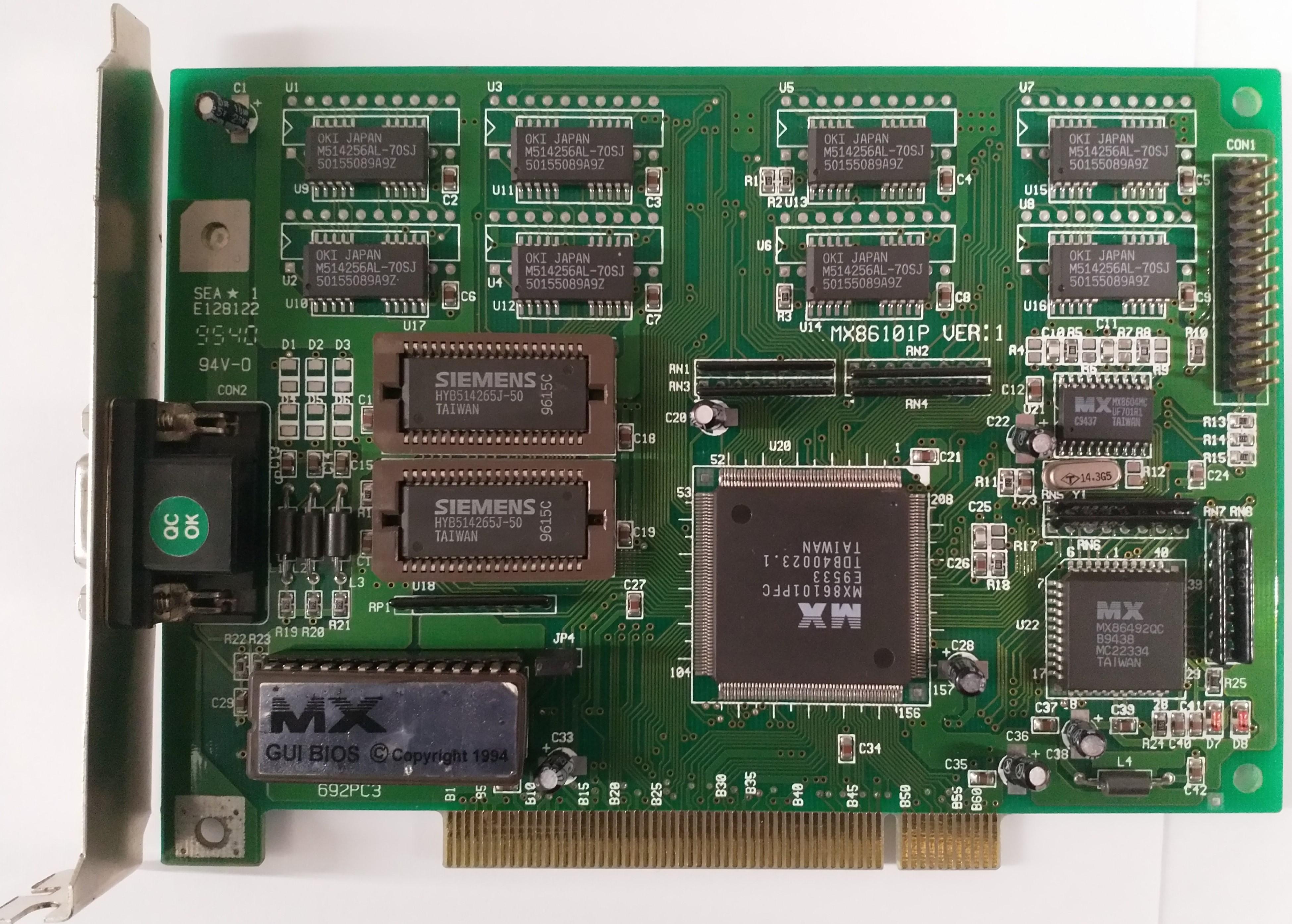

image1 Image 1 of 4 (Palcal)

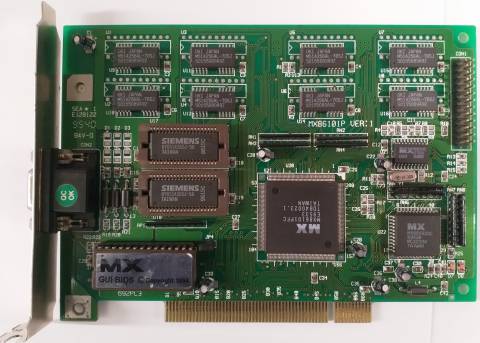

image2 Image 2 of 4 (Zapper)

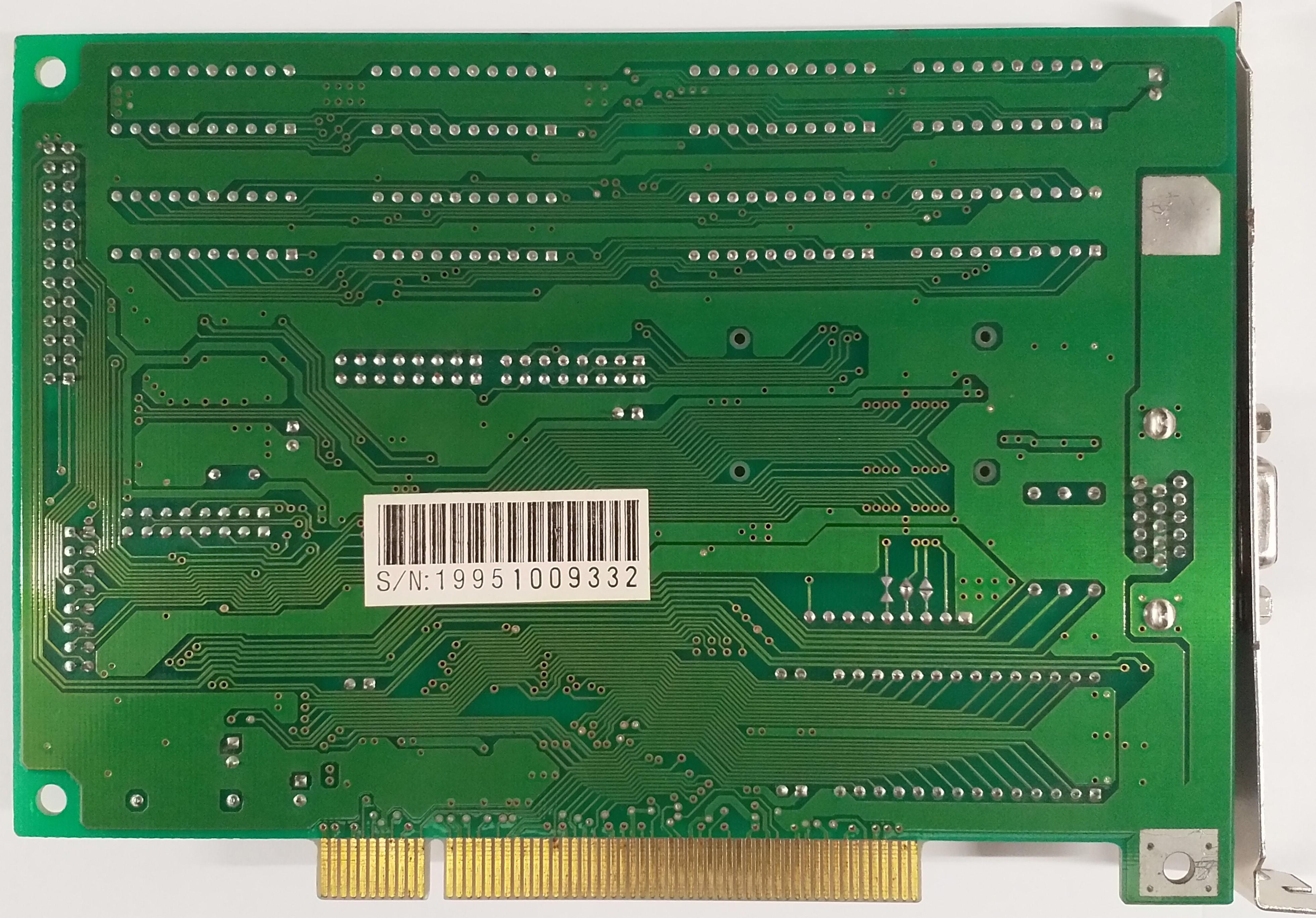

image3 Image 3 of 4 (Palcal)

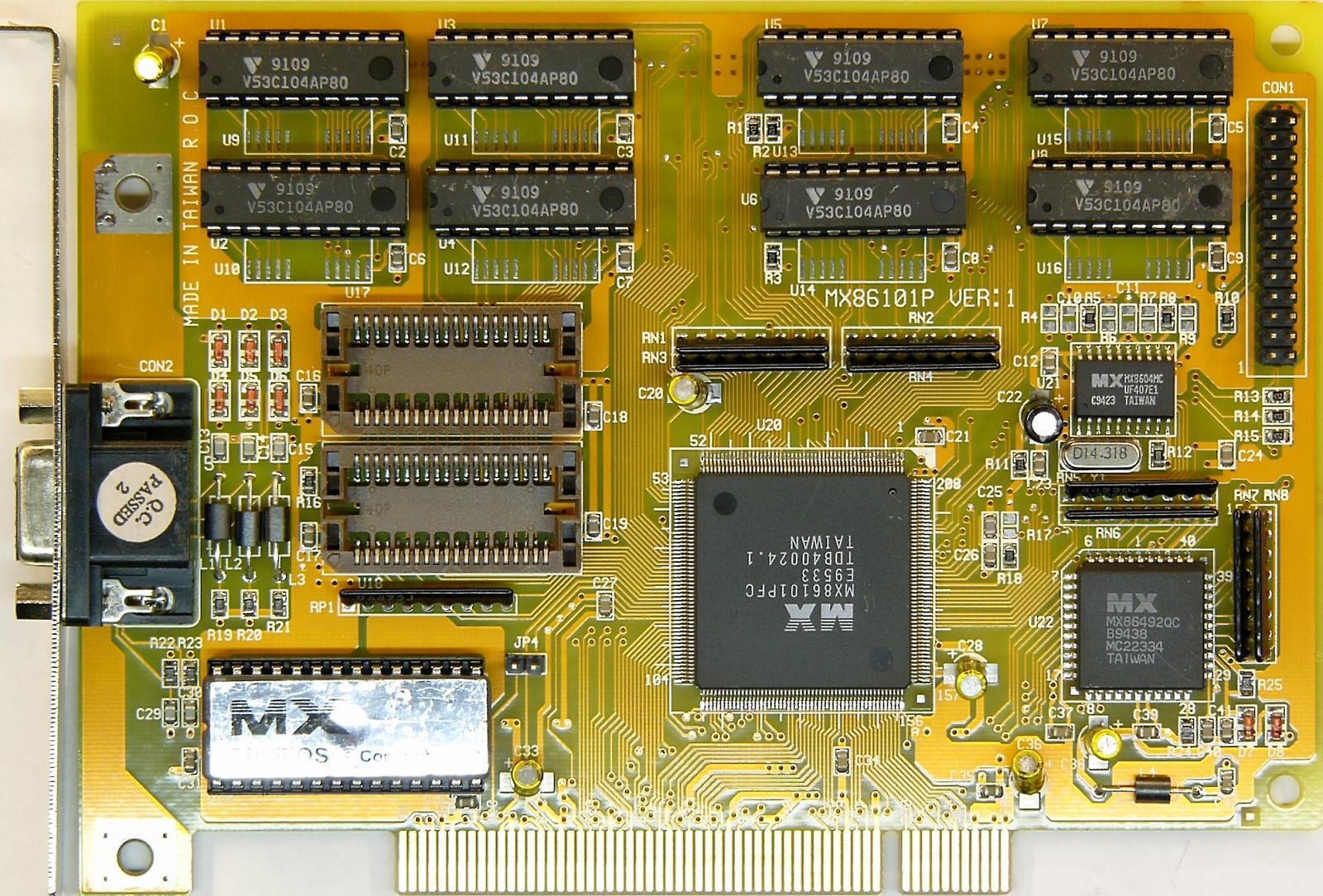

image4 Image 4 of 4 (Zapper)
