ATi All-In-Wonder Pro 4MB AGP
Logs
typeType
Video capture TV tuner Video
interfaceInterface
signalSignaling
AGP 2x
datePCI ID
4742
fccFCC ID
EXM529
ramRAM type
SDRAM
ramRAM size
4MB
chip Chips and specs
-> TV tuner
Philips TDA9850 (Stereo/SAP decoder)
-> Video
ATi ImpacTV2 (High Quality NTSC/PAL Encoder) ATi 3D Rage Pro AGP 2X (Rage 3) Brooktree Bt829B (Video Capture Analog TV/VCR)
tag Also known as
portintI/O ports
1x
  • 2x20 2.54mm pin header
1x
  • F-type female coaxial
1x
  • DE-15
1x
  • 8-pin Mini-DIN
1x
  • 10-pin Mini-DIN
powerPower connectors
Empty
Last updated 2025-10-31T22:56:35Z
biosc No BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.35
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
2.1MB
Filename
Version
OS support
Windows 9x Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1998-03-27
File
Logs
Chip
Release date
1999-06-19
File
Logs

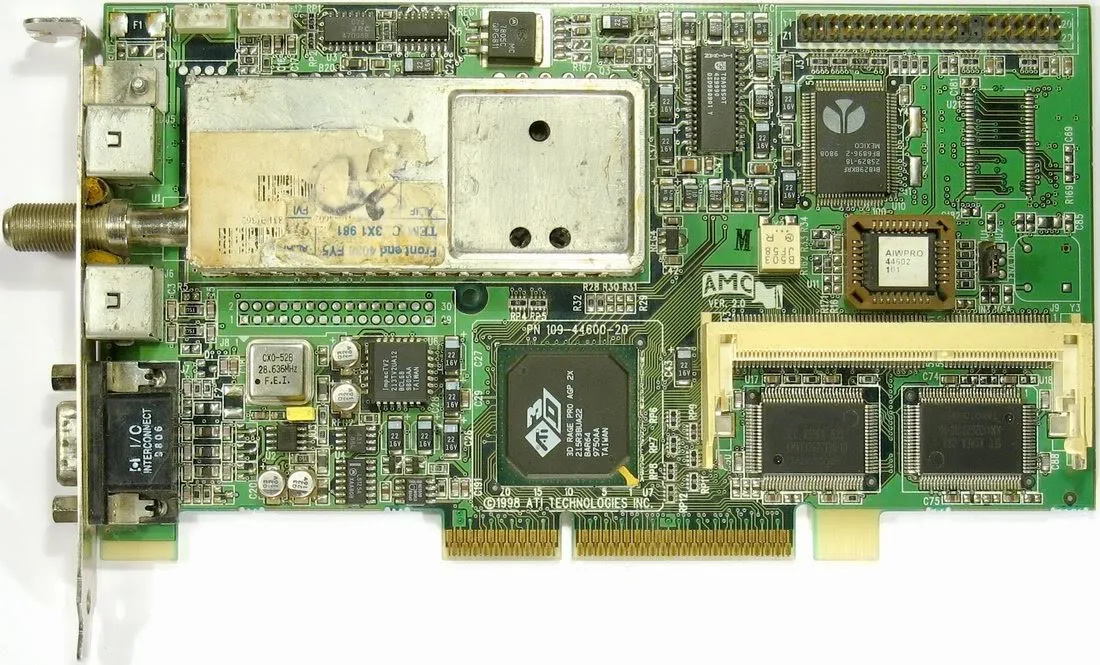

image1 Image 1 of 2 (old_pc_parts)

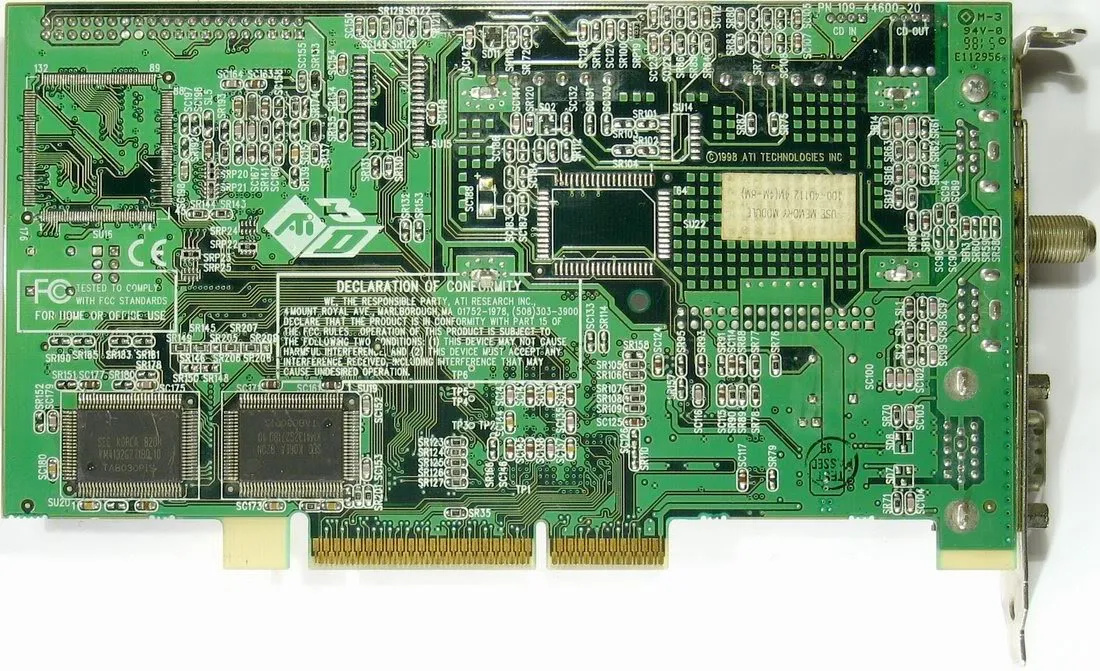

image2 Image 2 of 2 (old_pc_parts)
