Wistron BOXER61
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
DTX (max 200 × 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

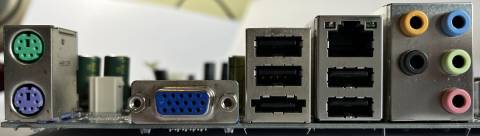

connI/O ports
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
PCIe x1
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

notes Notes

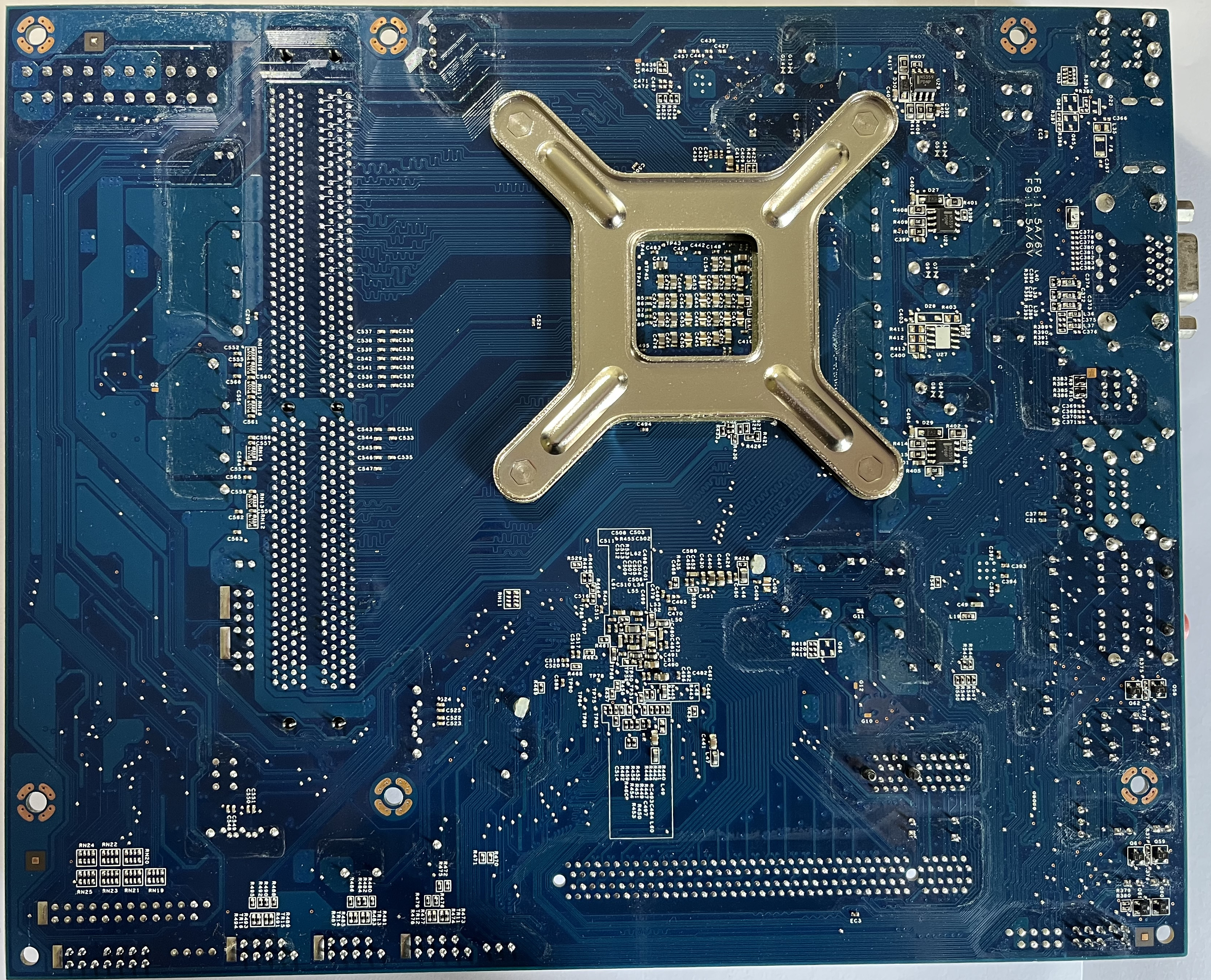

The cooling solution uses Intel LGA775-style mounting holes, instead of the official AMD ones. PCB manufactured in the year 2008.

Last updated 2026-01-06T16:56:41Z
Board info score is 8.1/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/16/2009-NF-MCP61-6A61K00CC-00
Note
eMachines EL1300
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2011-05-09
File
Logs
Chip
Release date
2020-12-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

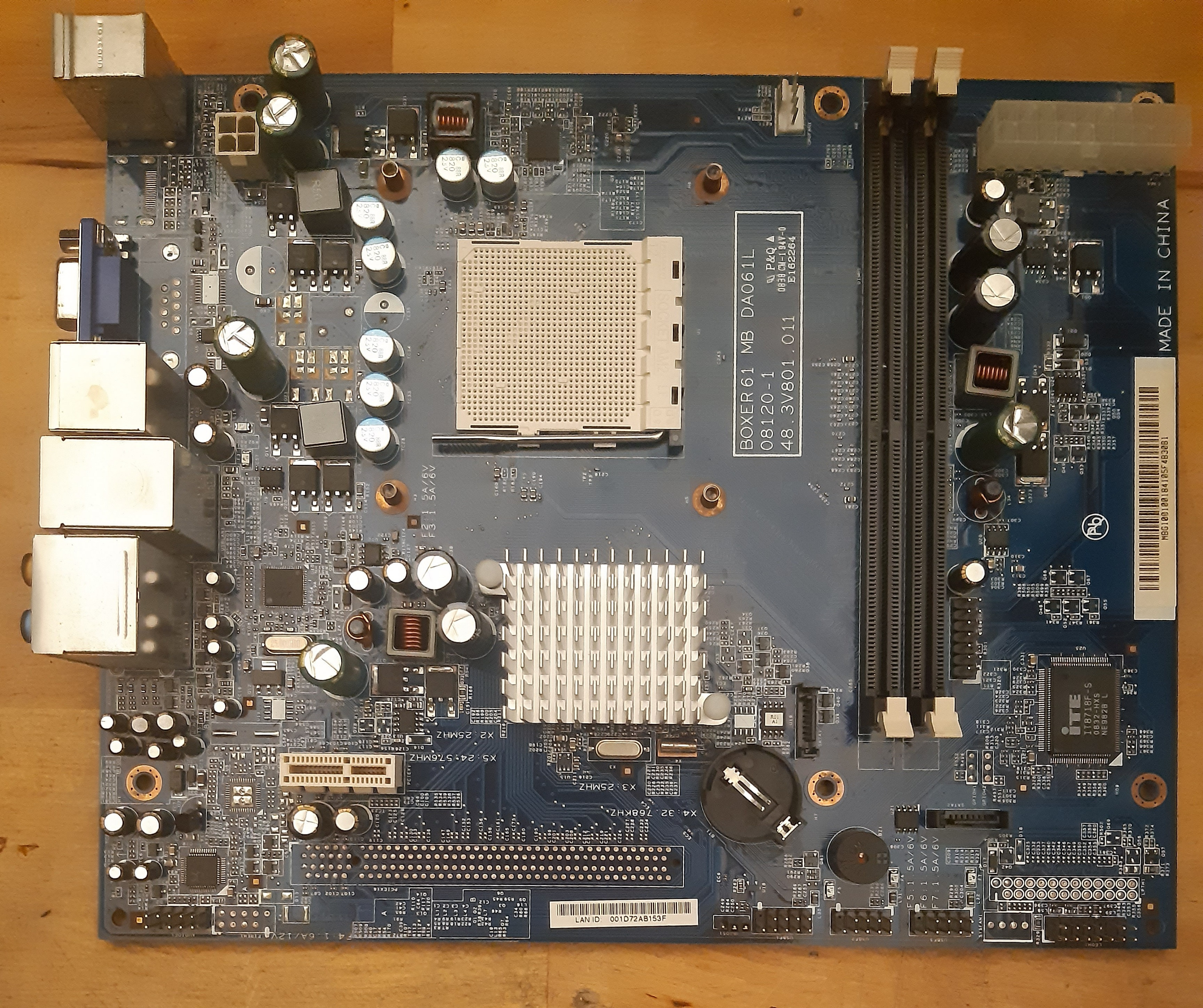

image1 Image 1 of 4 (Carlos S. M.)
image2 Image 2 of 4 (dogecode)

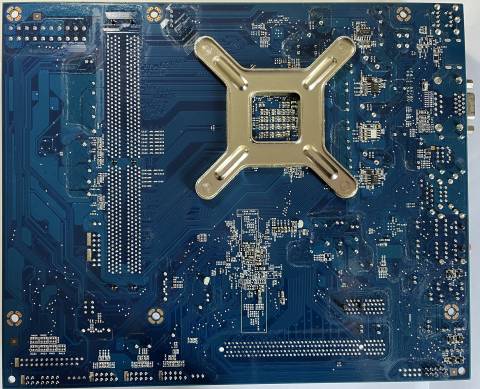

image3 Image 3 of 4 (dogecode)
image4 Image 4 of 4 (dogecode)
