VIA EPIA LT
Logs
chipChipset
cpuSocket
NanoBGA2 (BGA400)
speedFSB speeds
400MHz800MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as

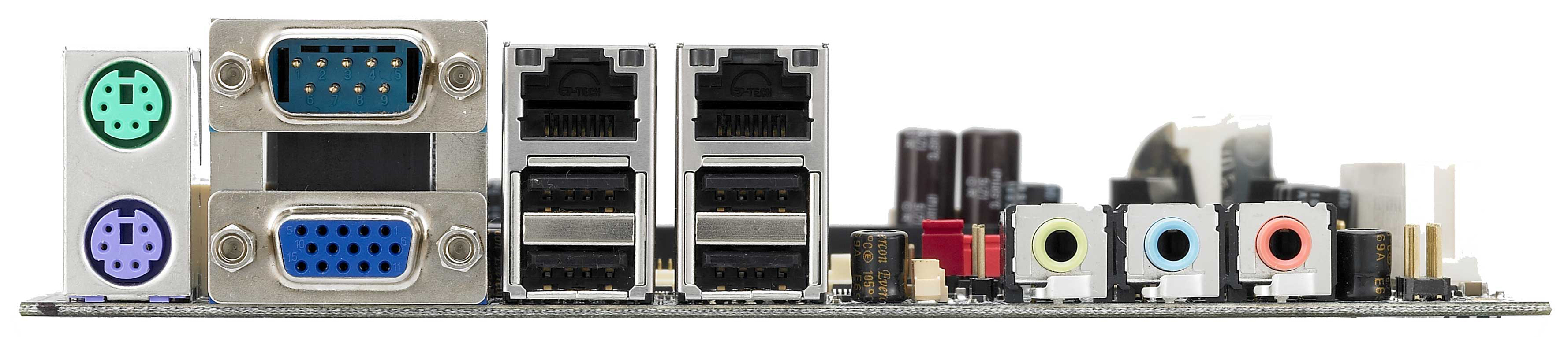

connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA II
4x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
Last updated 2025-05-08T19:55:35Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-009999-00101111-042007-CX700-1ADEL007
Note
Core version
080013
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.24A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Name
Version
4.3
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
6.2MB
Filename
Name
Version
16.01.23.24
OS support
Windows 9x
Arch
Size
7.8MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename

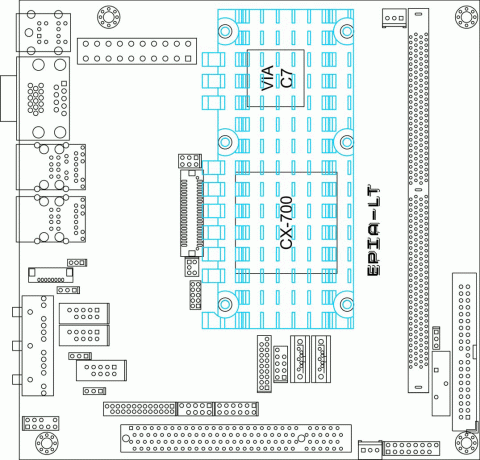

image1 Image 1 of 3 (evasive)

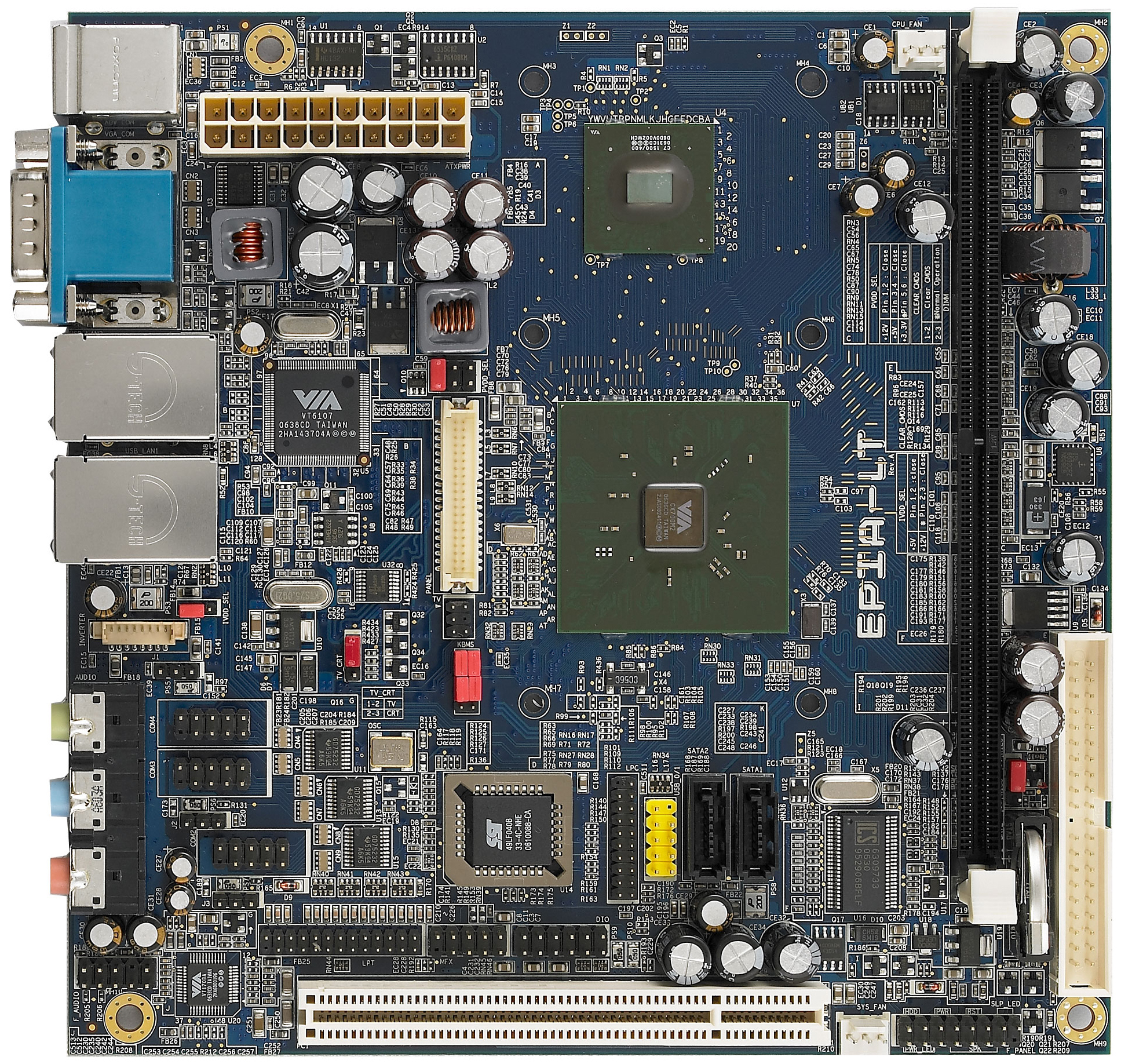

image2 Image 2 of 3 (VIA)
image3 Image 3 of 3 (VIA)
