[Unknown] N286-5 (1167)
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
12.5MHz16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIPP
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
2x
8-bit ISA
Last updated 2025-02-15T12:23:07Z
Board info score is 9.1/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
ENET-1167-040990
Note
Core version
040990
BIOS version
Logs
POST string
ENET-1167-043089-K8
Note
ADD-X Systèmes AS212
Core version
043089
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.2.0
OS support
MS-DOS
Arch
Size
40KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

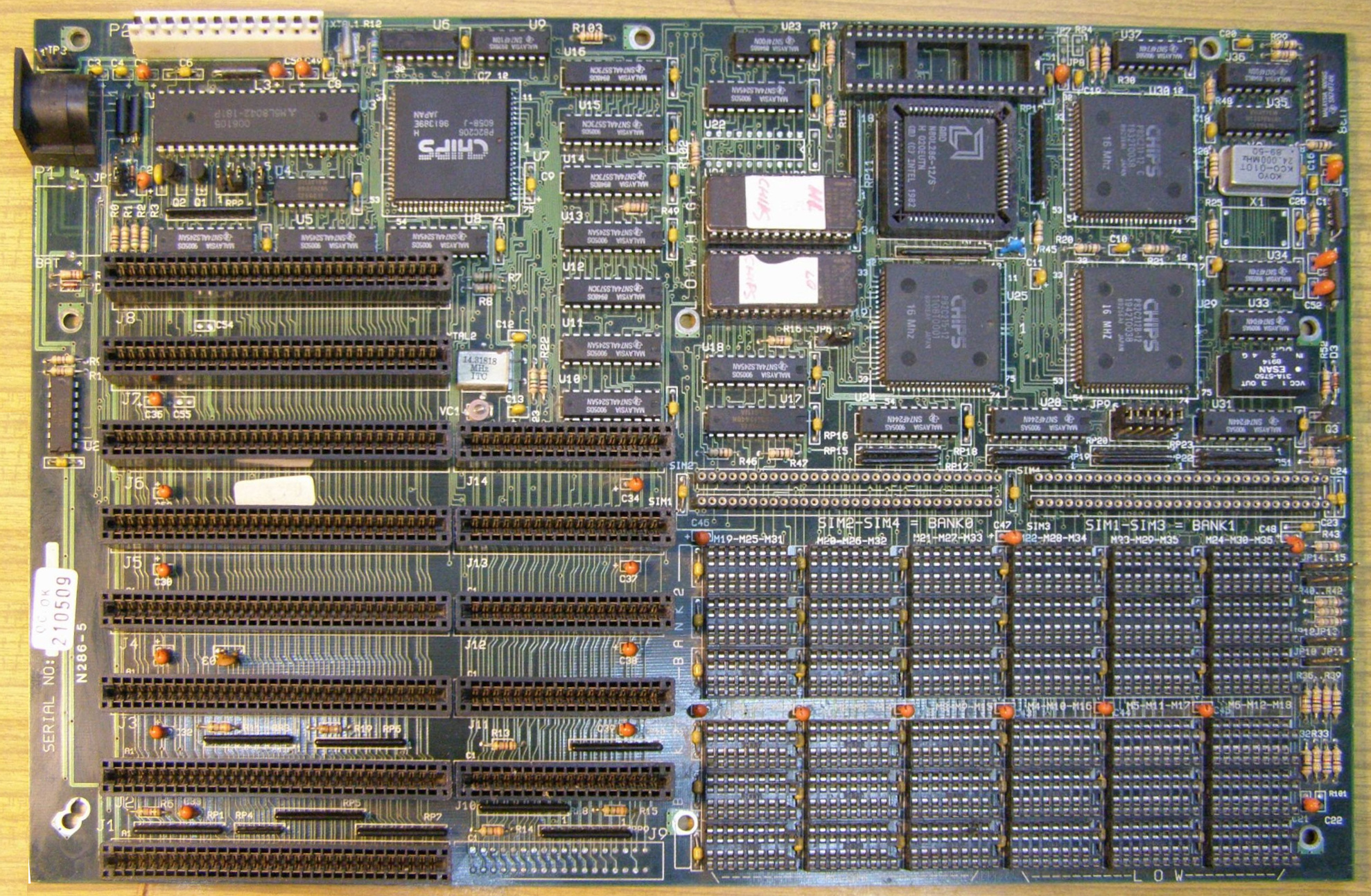

image1 Image 1 of 4 (Microhouse)

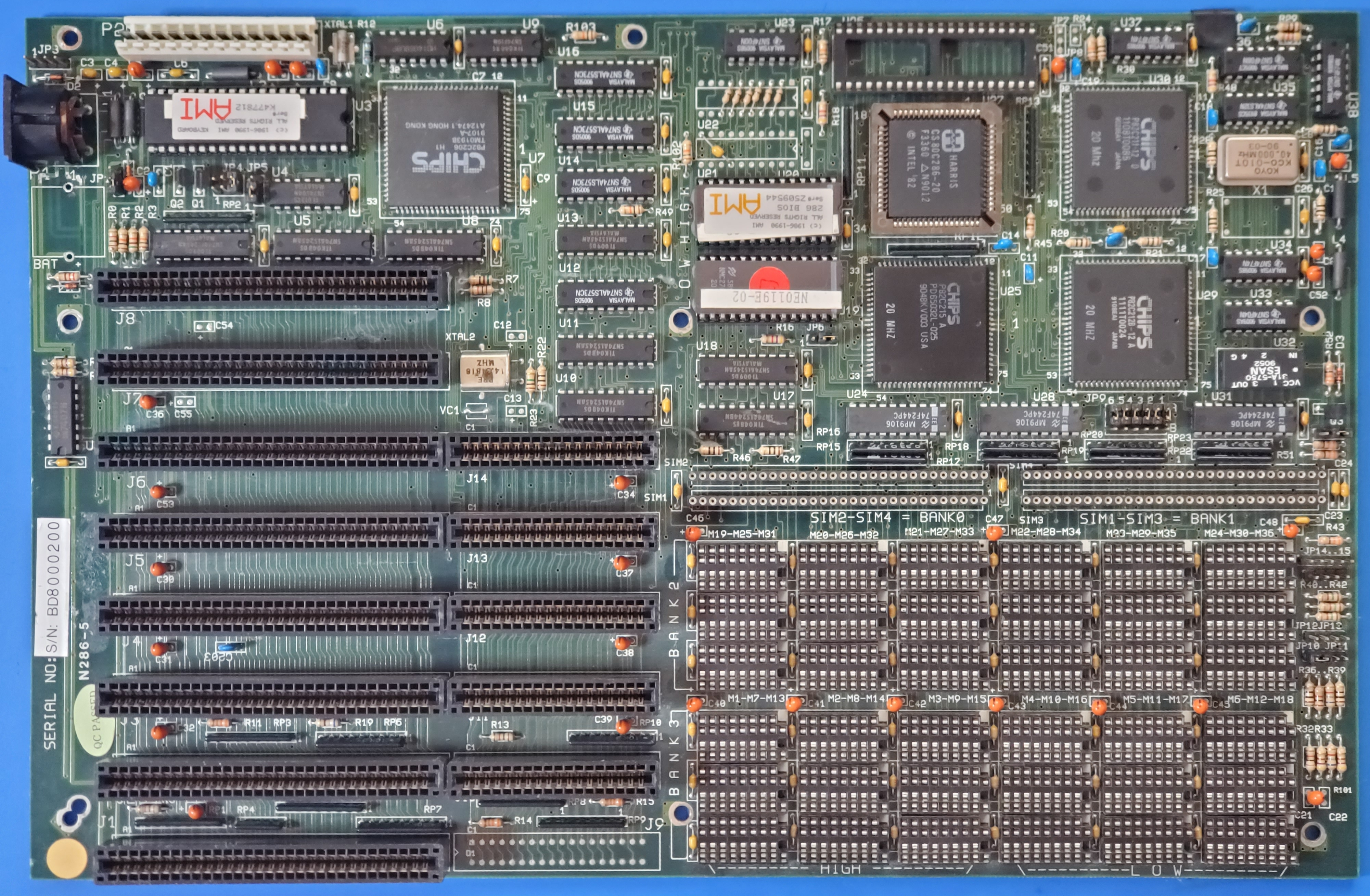

image2 Image 2 of 4 (Ant Goffart)

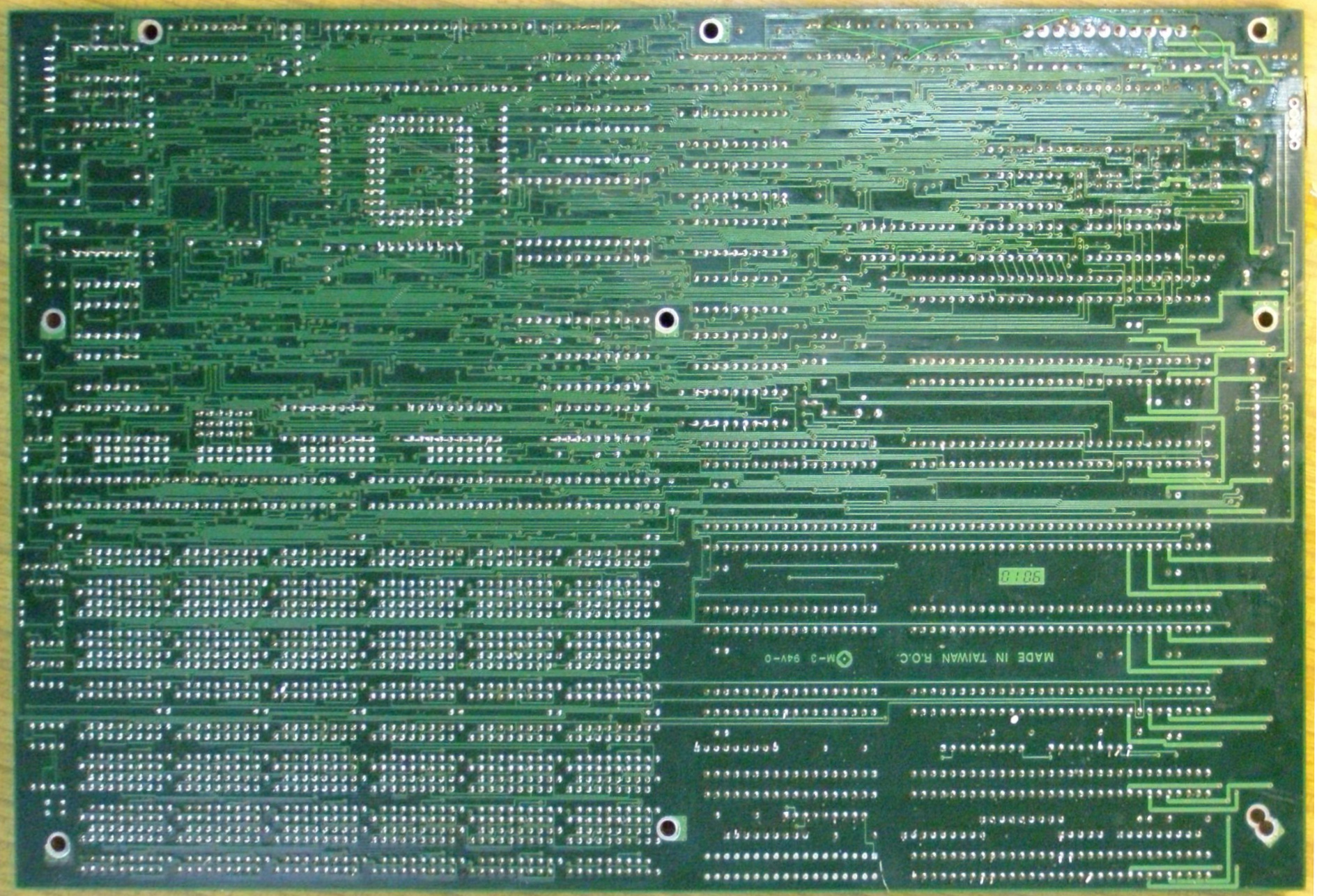

image3 Image 3 of 4
image4 Image 4 of 4
