TriGem Torino
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
notes Notes

Expansion slots

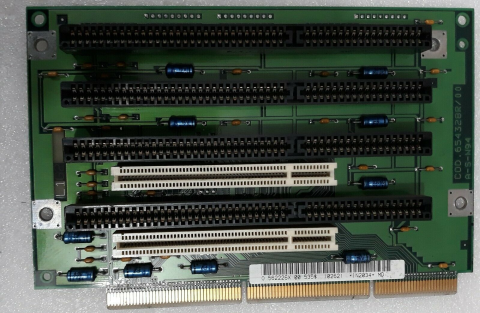

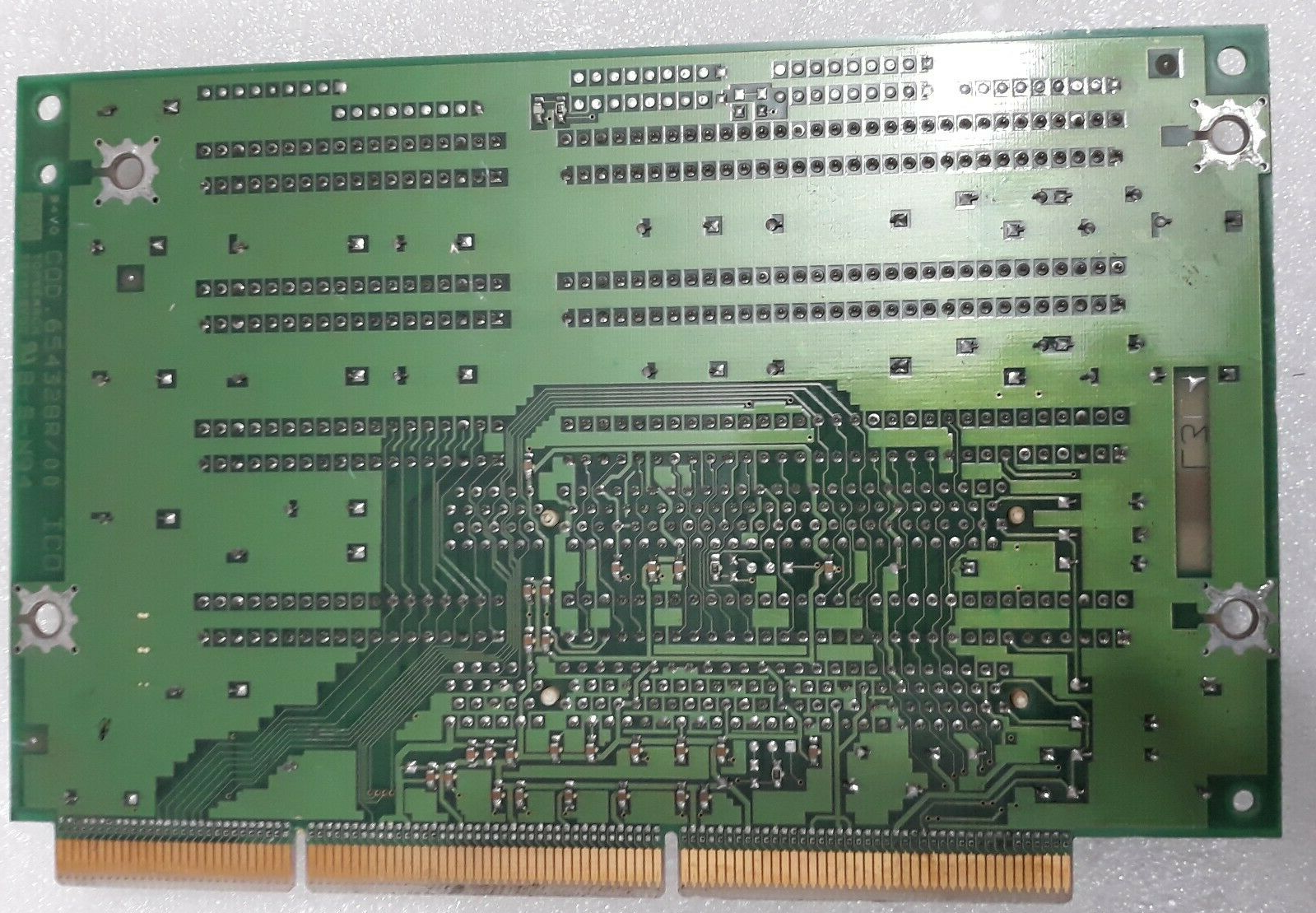

The motherboard can have one of the following riser cards, depending on the form factor of the case, for expansion slots: IN2048 (part number: EUQ7A, for tin case) and IN2037 (part number: EUU9A, for slim tin case).

IN2048 (EUQ7A): 4x 16-bit ISA slots, 2x PCI slots

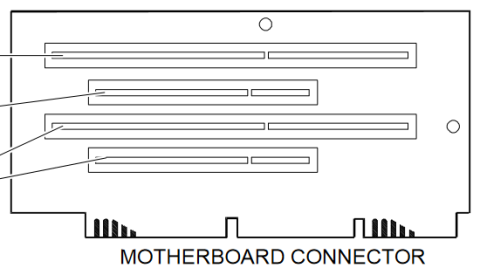

IN2037 (EUU9A): 2x 16-bit ISA slots, 2x PCI slots

Last updated 2025-10-09T00:38:05Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-3103-001110-00111111-101094-SIS550X-z-A1CCB75F004
Note
Olivetti OEM
Core version
101094
BIOS version
Logs
POST string
51-3103-000901-00111111-101094-SIS550X-z-A1CCB75F004
Note
Olivetti OEM
Core version
101094
BIOS version
1.12
Logs
POST string
51-3103-000503-00111111-101094-SIS550X
Note
Core version
051000
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.11
OS support
MS-DOS OS/2 Warp 3.x Windows NT 3.5x
Arch
Size
Empty
Filename
Name
Version
TX1.3 (01)
OS support
OS/2 Warp 3.x
Arch
x86
Size
1.1MB
Filename
Name
Version
6.10.4364
OS support
Windows 9x
Arch
x86
Size
201KB
Filename
Name
Version
2.3
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 2.x SCO Unix - OpenServer UnixWare Windows 3.1x Windows NT 3.1
Arch
x86
Size
149KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 8 (evasive)
image2 Image 2 of 8 (Necroware)
image3 Image 3 of 8
image4 Image 4 of 8 (Necroware)
image5 Image 5 of 8
image6 Image 6 of 8
image7 Image 7 of 8
image8 Image 8 of 8

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
